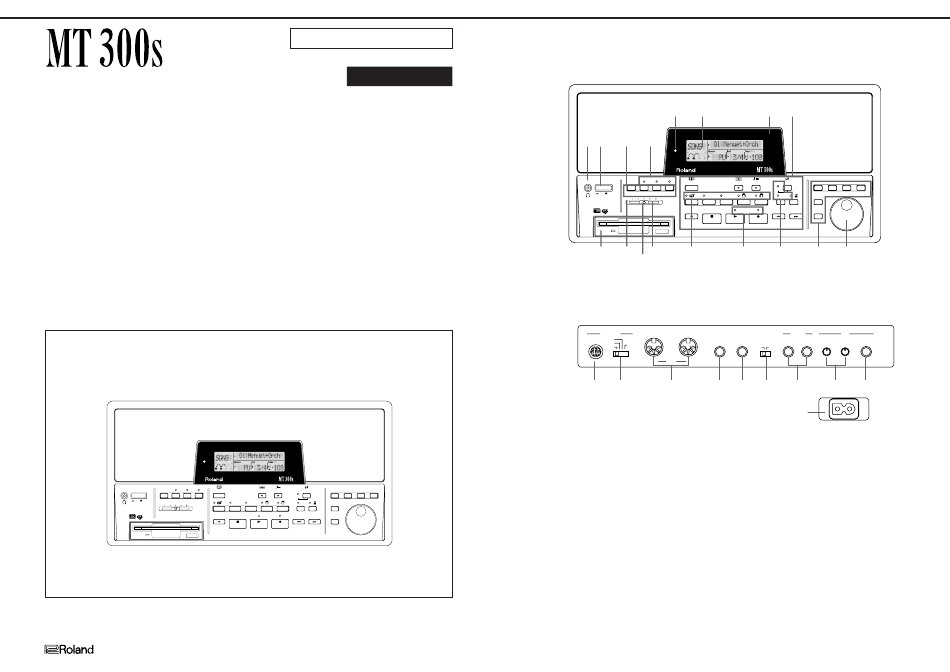

GENERAL VIEW

/概観図

Phones
Power
Marker Clear
Song
On
Off
A-Marker-B
Repeat
R
Volume
Reset
Copyright © 1998 by ROLAND CORPORATION
All rights reserved. No part of this publication may be reproduced in any form without the written permission of ROLAND CORPORATION.
本書の一部、もくしは全部を無断で複写・転載することを禁じます。
17059927
SERVICE NOTES
First Edition
Issued by RJA
目次
............................................................................................... 1
............................................................................................... 1
............................................................................................... 1
............................................................................................... 2
............................................................................................... 3
............................................................................................... 4
............................................................................................... 6
............................................................................................... 6
............................................................................................... 9
............................................................................................... 9
............................................................................................... 10
............................................................................................... 11
............................................................................................... 12
............................................................................................... 13
............................................................................................... 14
............................................................................................... 15
............................................................................................... 16
............................................................................................... 16
4
8
12
1
2
3
5
6
7
9
10 11
13 14 15 16
MUSIC PLAYER
Beat
Tempo
Transpose
Menu
Disk
Tune
Reverb
Enter
Edit
1
2
3
4
Track
Count In Metronome
16 Track
Bwd
Fwd
Sound
Stop
Play
Rec
Printed in Japan ACEO (DP) 1
PANEL LAYOUT
/ 正面図
FRONT VIEW
Page
1
Phones
/ 背面図
REAR VIEW
18
PANEL LAYOUT PARTS LIST
No.
Part Number
1
00894001
2
22495576
3
01561423
4
01561478
5
01121689
6
71013990
7
01344789
8
01344923
9
01341956
10
01344934
11
22485298
12
00671556
13
01561445
14
01561467

/パネル配置図

5
6
7
2
3
4
4
8
12
1
2
3
5
6
7
9
10 11
13 14 15 16
MUSIC PLAYER
Power
Tempo
Marker Clear
Song
Beat
Enter
On
Off
A-Marker-B
Repeat
R
1
2
3
4
Volume
Track
Count In Metronome
Reset
Bwd
Stop
Play
Rec
9
10
12
13
14
15
11
Computer
Start
l
Expression
Stop
Pedal
Speaker
Mac
PC-1
MIDI
PC-2
On
Off
Out
MIDI
In
19
20
21
22
23

/パネル配置図パーツリスト

Part Name
No.
Part Number
JACK YKB21-5142
15
01561456
A S-BUTTON LX BLK
16
01561434
RUBBER SW B
17
22485303
LENS D
18
13429911
LED (Green & Red) SPR-325MVWT31
19
00899223
LCD UNIT
20
13429676
DISPLAY COVER
21
13449283
RUBBER SW A
22
13449284
FDD UNIT MF355F-3252MG
23
01454945
POT DUST COVER
24
00451445
I S-KNOB S DWG/LCG
25
13279884
SLIDE POT. EWANNKX10B14
26
13449252
LENS A
27
23425740
LENS C
Jun. 1998
8
Transpose
Menu
Disk
Tune
Reverb
Edit
16 Track
Fwd
Sound
16
17
Output
Mic
R
L
Volume
Echo
In
Min
Max
Min
Max
24
25
26
27
Part Name
LENS B
RUBBER SW C
D R-KNOB L BLK 248-303
COMPUTER TERMINAL TCS7927-28-401
SLIDE SWITCH SSSF124-S06N1
JACK YKF51-5048
JACK HLJ7101-01-3010
JACK HLJ7001-01-3010
SLIDE SWITCH SSSF112-S06N1
JACK YKC21-3040
ROTARY POT. RK09K1110 10KB
JACK YKB21-5006
AC INLET INL-8 10A/125V 2P PO
1
