Mighty Module MM6010 Manual

MM6010
AC INPUT
ISOLATED TRANSMITTER

DESCRIPTION

The MM6010 provides DC output
voltage or current proportional to an
AC input signal. It is useful in measuring
AC voltages or currents and converting
them to DC levels for driving controllers,
recorders, meters, or other instruments.
It utilizes a precision rectifier system to
provide accurate and stable
rectification of the AC input signal. The
module provides an output signal
proportional to the average level of the
input signal. It is calibrated assuming a
sinusoidal input signal will be applied.
Other calibrations are available.
The module includes filtering and
conditioning to reduce susceptibility
to transients and noisy operations.
They utilize pulse width modulation
to develop a pulse train with a duty
cycle proportional to the input signal
amplitude. This pulse train is coupled
through a pulse transformer where
the duty cycle data is converted to a
proportional DC level in the output
circuit.
1

TYPICAL APPLICATIONS

Monitoring power line or power supply
voltages and currents. Measuring the
output of self-generating process
sensors or transducers which generate
AC signals and measuring current
consumption of electrical devices such
as motors, pumps or heaters.

OPTIONS

The following options are available on
the MM6010:
U All circuit boards
conformal coated for
protection a g a i n s t
moisture.
DC Power Inverter-isolated 12 or
24 VDC power.

CONTROLS

Two controls, ZERO and SPAN, are
accessible from the top of the module.

CALIBRATION

The MM6010 is shipped pre-calibrated. If
there is a need to re-calibrate, proceed as
follows:
Refer to the instrument's label to determine
your instrument's supply voltage and input
and output ranges. Refer to the "Block
Diagram and Pin Connections" for pin
connections.
Connect a precision AC voltage source to
the input. Connect a precision DC voltage or
current meter to the output.
Set the input to the low end of the input range
and adjust the ZERO control for the low-end
output voltage or current. Raise the input to
full scale and adjust the SPAN control for full
scale output. Repeat until both readings are
correct.

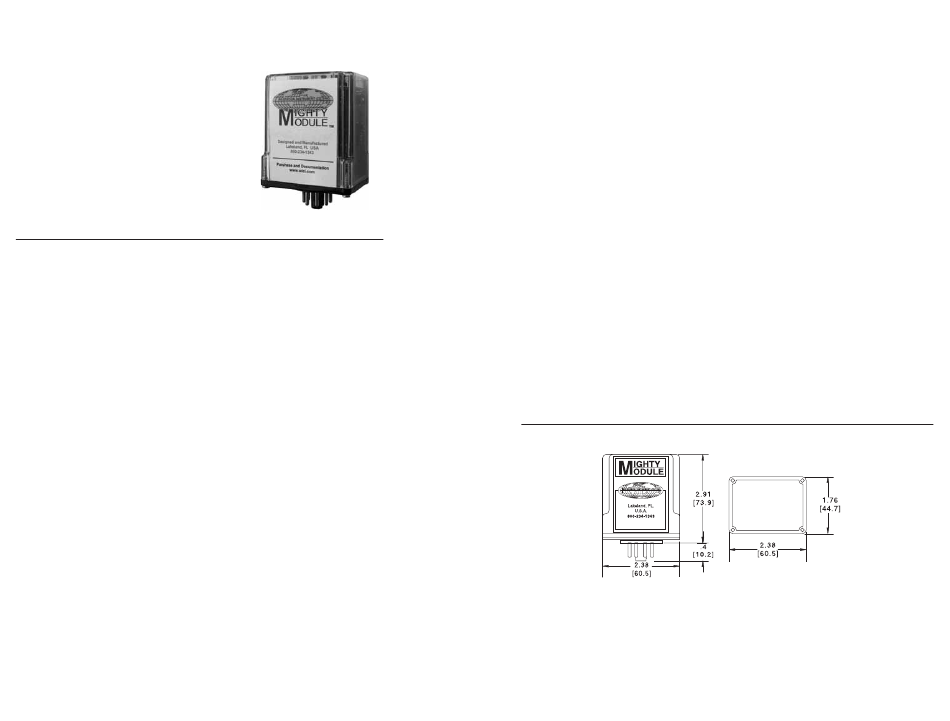

CASE DIMENSIONS

INCHES [mm]

MOUNTING

The module is designed to plug into a standard
8 pin relay socket. Part number MP008 is a
molded plastic socket that can be mounted on
a flat surface or snapped into 2¾ inch wide
PVC track (part no. TRK 48).
A spring hold-down clip (part no. CLP-1) is
available for installations where vibration
may be a problem.
A Killark HK Series explosion-proof housing
with dome and 8-pin socket is available (HKB-
HK2D-8). A DIN-rail mounted socket (DMP008)
is available for 35mm symmetrical DIN-rail.

WARRANTY

The Mighty Module Series of products carry
a limited warranty of 10 + 5 years. In the
event of a failure due to defective material or
workmanship, during the 10 year period, the
unit will be repaired or replaced at no charge.
For a period of 5 years after the initial 10 year
warranty, the unit will be repaired, if possible,
for a cost of 10 % of the original purchase
price.
Relays are not covered by the warranty.
