- Page 1 Manual for use of PICHLER Whirlpool spa control system WPS A3 PICHLER Kunststofftechnik GmbH Lauterbachstraße 19 84307 Eggenfelden Phone: 0 87 21-96 90 0 Fax: 0 87 21-96 90 20 Email: mail@pichler.de Web: www.pichler-whirlpool.de date: 2012/05...
-
Page 2: Table Of Contents
PICHLER Kunststofftechnik GmbH Contents spa controler system manual for customer WPS A3 user panel..................2 LCD Display, Symbols on display............3 Reset-Button of display (invisible), Menu items, kids safety..... 4 Programing keys, Jet-Pumps, Air blower, Pool lighting....Menu customer................. 5 Set temperatur, Date, Time.............. -
Page 3: User Panel

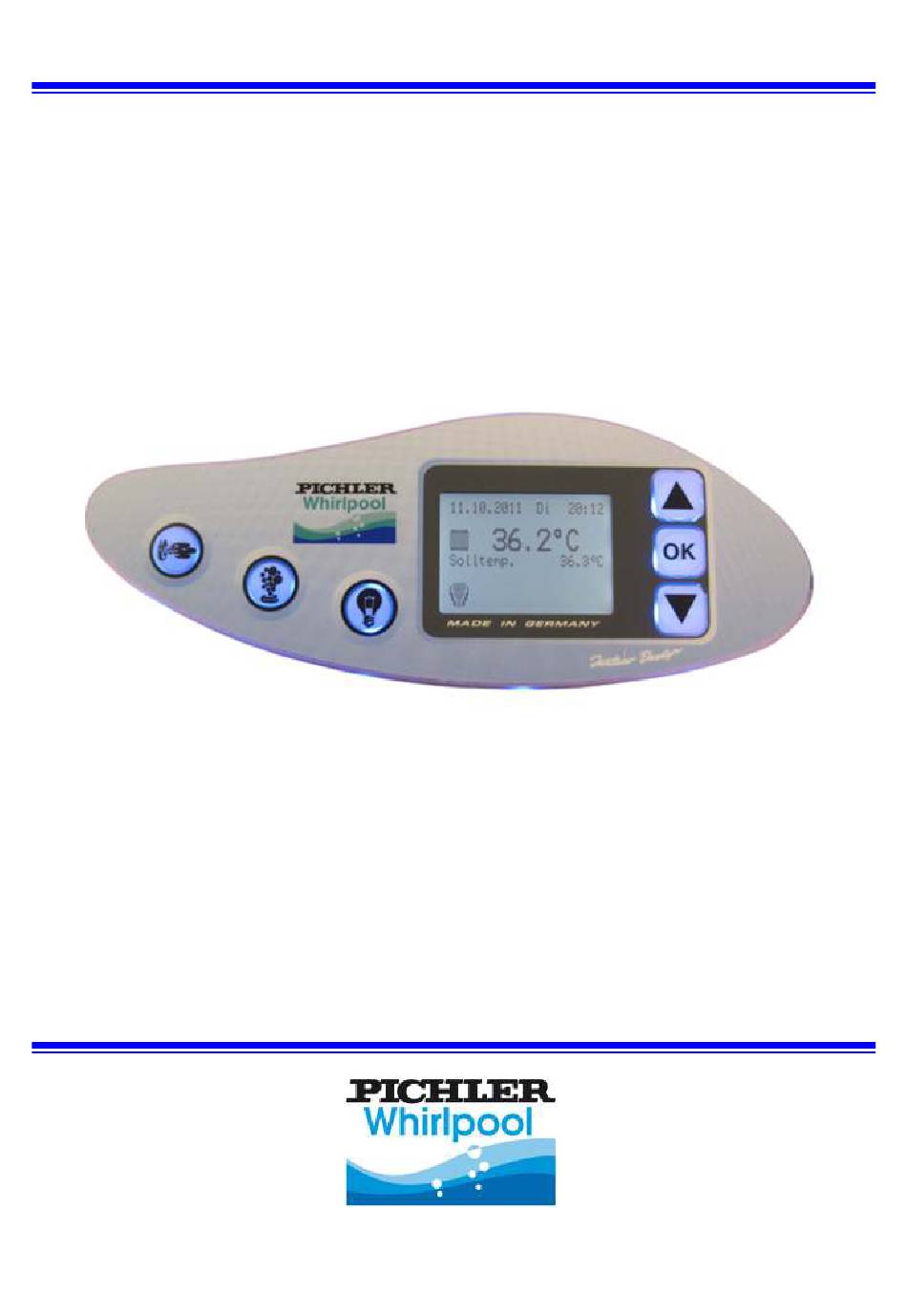

PICHLER Kunststofftechnik GmbH spa Control system Control element The control element Consists of a LCD display, the operating keys of activating jet pumps, air blowers and pool light, the RESET button and the programing keys. Figure shows the front panel of the spa and provides Provides an overview ofeach key that you need to start some already. -
Page 4: Lcd Display, Symbols On Display
PICHLER Kunststofftechnik GmbH Logo This logo will be shown for 5 seconds after starting up or after pushing the RESET-button. Below is the latest right here Software version is displayed. Software-version V 2.69 Explantation of symbols on display data, weekday,time Base picture 07.07.2011 Tu 13:15... -
Page 5: Reset-Button Of Display (Invisible), Menu Items, Kids Safety
PICHLER Kunststofftechnik GmbH Whirlpool controller Control element LCD-Display Reset- button The displays shown in the display is reversible, so that they both foreign, as well as the Inside the spa is readable. The change of the display is done using the following Key: „▼“... -
Page 6: Menu Customer
PICHLER Kunststofftechnik GmbH Menu customer settings 07.07.2011 TU 13:15 menu customer 07.07.2011 TU 13:15 36.7°C ph-electrode ph: --.-- redox-elect mV: ----- Set.temp. 36.9°C 36.7 menu service chlor-elect. ppm: ----- set temp. menu customer more ê settings back step: 1 step: 2... -
Page 7: Heat Exchange, Heating Cykles, Heating Days
PICHLER Kunststofftechnik GmbH Filter time more settings more settings date 06.07.1 6.07.11 6.07.11 6.07.12 time tame 08:22 08:22 filter time filter tame Press the " menu customer" to "more settings heat tame heat time than you can push the arrow buttonto the up „▲“... -
Page 8: Heating When Filtering, Heating During Bath, Flushing Cycles
PICHLER Kunststofftechnik GmbH For example, filters and heating times setting filter times The time setting for heating and filtering should be set equal 07:00 - 22:00 07:00 - 22:00 be to keep track of the setting. 07:00 - 22:00 07:00 - 22:00... -
Page 9: Factory Settings, Saving, Loading
PICHLER Kunststofftechnik GmbH Factory setting Select the menu item "menu customer", default ( Pic.1 menu customer more settings factory setting Intervall massage illumination 36.7 Setting secure: To On / Off , press the button settings with secure set temp. „▲“... -
Page 10: Illumination, Door Lighting, Stairs/Entry Lighting
PICHLER Kunststofftechnik GmbH Lighting, door lighting menu customer more settings Under the menu item "customer menu" choose "light". factory settings Intervall massage illumination Tuerbeleuchtung: On (The service door interior light is switched on, 36.7 and may the Light button (see page 2) off again set temp. -
Page 11: Outside Lighting, Synchron Lighting
PICHLER Kunststofftechnik GmbH Outdoor Lighting menu customer more setting The menu item "Outdoor Lighting", the following selection factory setting can be set: Intervall massage illumination 36.7 set temp. back Color change: cycle in seconds selectable 1-120 seconds illumination door lighting... -
Page 12: Options: Exchange Heating, Automatic Water Control Inlet
PICHLER Kunststofftechnik GmbH Heat exchanger menu customer more settings factory settings Under the menu item "Customer Menu", select the arrow button intervall massage up to page 2 illumination 36.7 set temp. back Then press the menu item "heat exchanger". page 2... -
Page 13: Malfunction
PICHLER Kunststofftechnik GmbH Malfunction Cause of error troubleshooting customer menue can not activation customer menue opening - go to customer menue, (page 5), overhead should be read menue „settings“. - Push, und keep the button „OK“ longer as 15 seconds until the customer menue will be reactivated! - Please move to the menue „factory settings“...
