OASIS
A product recommended by State Administration of Grain for popularization
One of the first batches of products having passed a nationwide survey by State
Administration of Grain
ISO9001: 2000 certified
Shanghai QingPu Oasis Inspection Technologies Co.,

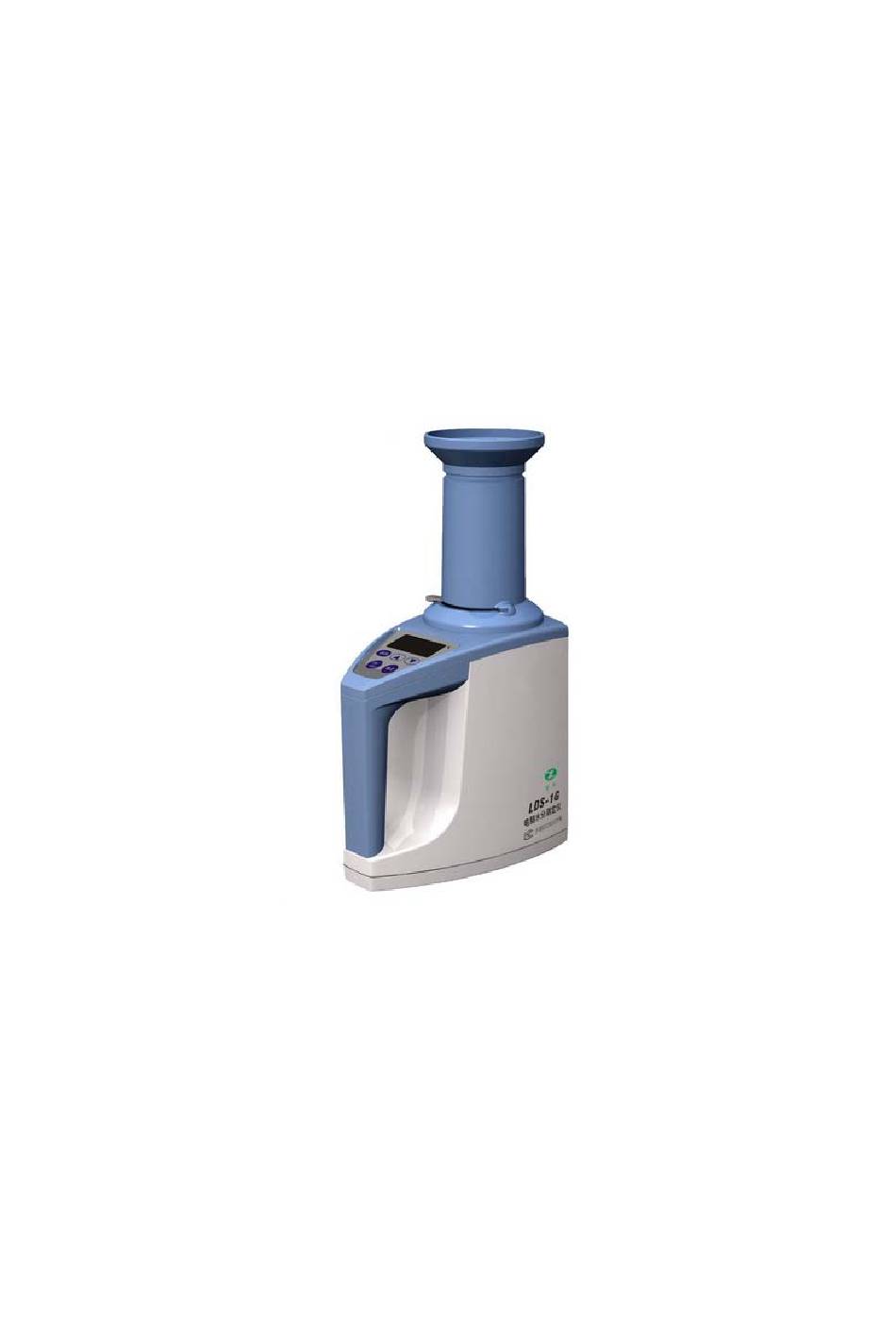

LDS-IG
Computerized Moisture Meter
User's Manual
Quick, accurate, convenient
AC/DC power supply compatible
High-brightness backlight LCD, clear and energy-saving
Multipoint calibration, error correction
Low power consumption, automatic shutdown
Automatic weighing and temperature compensation
Volume-weight conversion display
H.Z.02290025
Ltd.
Advertisement
Table of Contents

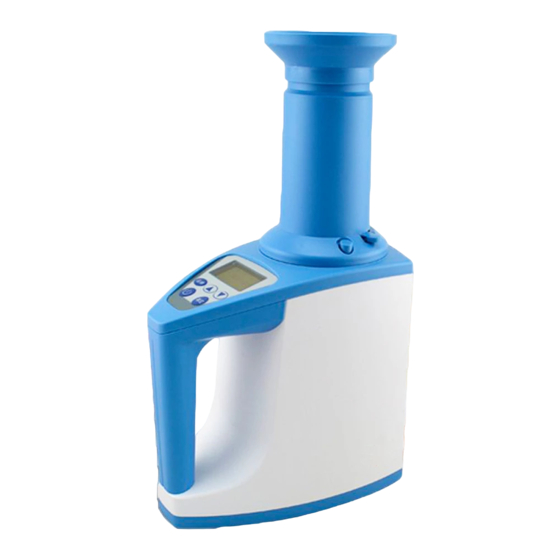

Summary of Contents for Oasis LDS-IG
- Page 1 Computerized Moisture Meter User’s Manual Quick, accurate, convenient AC/DC power supply compatible High-brightness backlight LCD, clear and energy-saving Multipoint calibration, error correction Low power consumption, automatic shutdown Automatic weighing and temperature compensation Volume-weight conversion display Shanghai QingPu Oasis Inspection Technologies Co., Ltd.
- Page 2 Thank you for buying and using our product. In order to maximize the effect of this product, please read this User’s Manual carefully and keep safely. I. Structure Diagram LCD panel Measuring sensor Operation panel AC power socket Communication interface Lower edge of blanking cylinder the place for sample to be placed during measurement...
- Page 3 II. Preparations before Use 1. Take out protective foam blocks filled around the measurement sensor of the moisture meter ( “the meter” for short), and meanwhile confirm that the sensor is free of any substance, otherwise the meter will not work properly; 2.
- Page 4 5. Close the discharge gate of the blanking cylinder, empty the sensor of the sample and prepare for the next measurement. 6. In order to reduce measurement error, pay attention to the consistency in operating method: the same sample (especially large-grain samples such as corn) shall be subject to several measurements, whose results will be averaged: press the “...
- Page 5 V. Calibration Calibration means conducting new configuration of the meter’s parameters with samples whose standard moisture value has been already known. Calibration is used to increase measurement categories or correct precisely the measurement error of existing categories. The meter can be calibrated with up to 4 standard samples in the following method: 1.
- Page 6 7. Continue calibration: continue calibration in the above procedures. After the calibration of the fourth standard sample is completed, the meter will automatically exit from the calibration status; if there is no third or fourth standard sample, you may press the “Category” key or shut down the meter to exit from the calibration status;...
- Page 7 VIII. Subsidiary Functions with the Meter (for reference) 1. Averaging: when the meter measures the same sample twice or more, press the “确定”(OK) key once, and the average value of previous measurements will be shown, such as 平均：Average Note 2. Indicating sample weight: After the meter displays the first measured moisture value or the average value, press the “确定”(OK) key to display the sample weight in gram;...
- Page 8 Put the fixed weight supplied with the meter (or 200g standard weight) gently on the black tip in the center of measuring sensor, and press the “确定”(OK) key again. After the meter shows turn off the meter and take away the weight. Shanghai QingPu Oasis Inspection Technologies Co., Ltd. Address: No.349 Yingxiu Road, Qingpu, Shanghai District 201700...
