180905_Rev. 1.06
KIGIS IPAS User Manual
Wired Type [Standard]
Vehicle Tag
ㆍPedestrian Tag
(VT)
(PT)
I n t e l l i g e n t
P r o x i m i t y
A l e r t
S y s t e m
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KIGIS IPAS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kyungwoo KIGIS IPAS

  • Page 1 180905_Rev. 1.06 KIGIS IPAS User Manual Wired Type [Standard] Vehicle Tag ㆍPedestrian Tag (VT) (PT) I n t e l l i g e n t P r o x i m i t y A l e r t...

  • Page 2: Table Of Contents

    8. Check list before reporting failure 9. Warranty Thank you for purchasing KIGIS IPAS product from KYUNGWOO SYSTECH, Inc. This product is a safety-assisting device to give warning signals by detecting the proximity of vehicles and pedestrians at industrial working site. Any property or life damage casued by the breach of safety regulation and users' carelessness will not be held responsibility.

  • Page 3: What Is Ipas

    1. What is IPAS? KIGIS IPAS is an intelligent proximity alert safety and assistant system that prevents collisions by signaling dangers in 2 way communication to both drivers and pedestrians when pedestrians approach to a vehicle or vehicles approach to other vehicles in industrial working site. It is easy to install without causing any damages to the vehicle, and compared to other products, the outstanding proximity detection is an advantage that KIGIS IPAS only offers.

  • Page 4: Caution/Warning For Safety

    2. Caution/Warning for Safety Caution! ※ Failure to observe the precautions in this manual may result in damage to the product or your property. Use only DC 12/24V. Do not place the For vehicles with DC product near 36/48V, be sure to flammable materials, connect SMPS module stoves, candles, or...

  • Page 5: Components/Names Of Parts

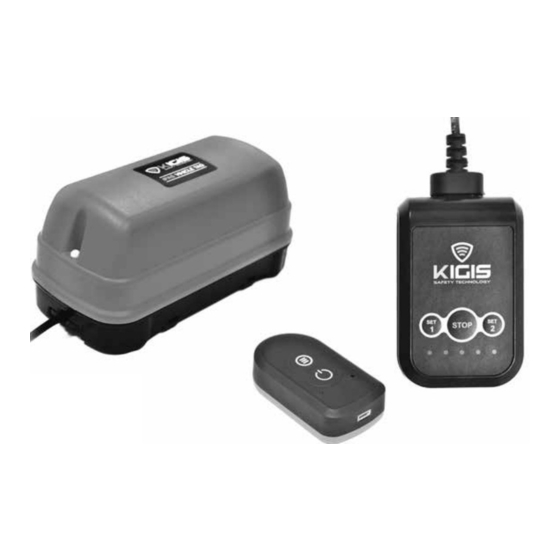

    3. Components/Names of Parts Components Vehicle Tag(VT) Indicator Pedestrian Tag(PT) Helmet Holder Fuse Cable Harness(6m) Open Wire Adapter Cable High Speed Charging Cable(PT) User Manual ※ Tag may not be recharged with general charging cable. ※ It is strongly recommended that the tag should be installed on epaulet or arm band due to communication problem in...

  • Page 6: Specifications

    4. Specifications Specifications Vehicle Tag(VT) Indicator Pedestrian Tag(PT) Product Image Power 12/24V DC Input(9/32Vdc) 12/24V DC Input(9/32Vdc) Current 300mA 500mA Interface CAN Bus 2.0 CAN Bus 2.0 ·Normal operation ·Normal operation ·Normal operation LED Status : Green LED flashing : Green LED flashing : Green LED flashing and Alarm ·Approaching alarm...

  • Page 7: Installation

    KIGIS IPAS is designed with the customer in mind for easy installation without the help of an installer. The powerful magnet can be attached easily on VT floor without damaging the vehicle and it is also convenient to detach with detach lever.

  • Page 8: [Ind] Danger / Caution Area Distance Setting

    6. Setting - Indicator Danger / Caution Area Distance Setting ※ In a condition of normal operation ② Set the desired Danger ① Press and hold SET ③ Press STOP to complete 1 and SET 2 buttons Area distance by operating the Danger Area setting.

  • Page 9: [Ind] How To Set The Distance

    6. Setting - Indicator How to Set the Distance Distance setting can be set to even distance [2 / 4 / 6 / 8 / 10m] or odd distance [1 / 3 / 5 / 7 / 9m]. The default setting is even distance. SET 1 button : Distance -2 m STOP button : OK SET 2 button : Distance + 2m...

  • Page 10: [Pt] Alarm Type Setting

    6. Setting - Pedestrian Tags Alarm type Setting ① Press and hold the ② Press and hold the ③ Press the power ④ Press and hold the power button to menu button. button to set the menu button to turn on the power. ( A short vibration will desired alarm type.

  • Page 11: How To Use 11

    7. How to use Indicator Instruction that a driver must know Situation LED Lamp Status Alarm Mute Alarm Press STOP Button 1 Time When a pedestrian(PT) trespass Repeating on the Caution Area "Watch Out" Red / Green Even though alarm ismuted (double Light flashes clikc), in case that pedestrian escapes When a pedestrian(PT) trespass...

  • Page 12: Led Status Display

    7. How to use - LED status display LED Status Vehicle Tag(VT) Indicator Pedestrian Tag(PT) ● ● ○ ○ ○ ○ ● Power ON Green Flash Green Flash Green Flash ○ ○ ○ ○ ○ ○ ● Power OFF After Red light blinks LED Off LED Off once, it turns off...

  • Page 13: Check List Before Reporting Failure

    2m for Danger Area and 4m for setting 8P) Caution Area, alarm will keep going off until getting out of 3m (Danger Area) and 5m (Caution Area). If you have any questions, please feel free to contact us at www.kyungwoo.com.
  • Page 14 M E M O...

  • Page 15: Warranty

    W A R R A N T Y Warranty Term 1 year from the purchase date Product Name Model Name Place of Purchase Date of Purchase Name of Customer Phone Number * Service information 1. If a performance or functional failure occurs while proper using during the warranty period, the repair service is free of charge.
  • Page 16 W o r k S a f e * Any inquiry about the purchased product is Distributor(or purchasing store) contactable to distributor(or purchasing store) at below line. KYUNGWOO SYSTECH, INC. Manufacturer 4F, Daeryung Post Tower 5, 68, Digital-ro 9-gil, Geumcheon-gu, Seoul, 08512, Republic of Korea Tel.
