Finger Crystal E202 User Manual

S m a r t L o c k U s e r M a n u a l
E 2 0 2
Please read this manual carefully before use
Customer Service: （+86）+400 900 5952
http://en.fingercrystal.com
Information & Safety Warnings
Note: Please prepare a Phillips screw driver and 4 AA batteries before
installation.
1. Keep your fingers clean before using this product.
2. In original settings, it can be unlocked with any fingerprint, any card,
or password `1234567890` and `#`.
3. If the power is insufficient, there will be an alarm prompt, please
replace with 4 new batteries in time.
4. Please don`t use corrodent material to clean the surface.
5. When the password/fingerprint/card/APP can not unlock the door,
please use the key to unlock the door. Please keep the emergency key
with you or put it in outdoor safe place.
6. The lock is suitable for 40-100mm thick doors.
Features
1. The total capacity of system is 300, and Fingerprint capacity is up to 100,
and the first three are administrator.
2. Touching button, durable.
3. Support 6-8 password and 20 virtual password.
4. Support low power warning.
Name Parameter
semiconductor
Fingerprint Sensor
DPI 500
0.3S
Identify Time
Unlock Way Fingerprint, Card, Password, Key and APP
System Capacity
300
Supply Voltage
6V
Low Voltage Warning
4.8V
Standby Current <=50uA
Installation
1. Installation Instructions
a. It is recommended to look for professionals to install, watch the video
carefully before installing.
b. Please note that the connection line can't be pressed or folded during
installation.
c. Before the installation, the lock must be selected correctly according
to the door opening direction, because the handle can't be adjusted.
d. While installing, the door must be in half open state until the
commissioning is completed.
e. After the installation is completed, when the fingerprint, card,
password(1234567890) and #, APP, key unlock, test whether the front
handle and back handle unlock/lock normally or not.
. If it does not work properly, please check if there is improper installation
f
or the power cord is loose.

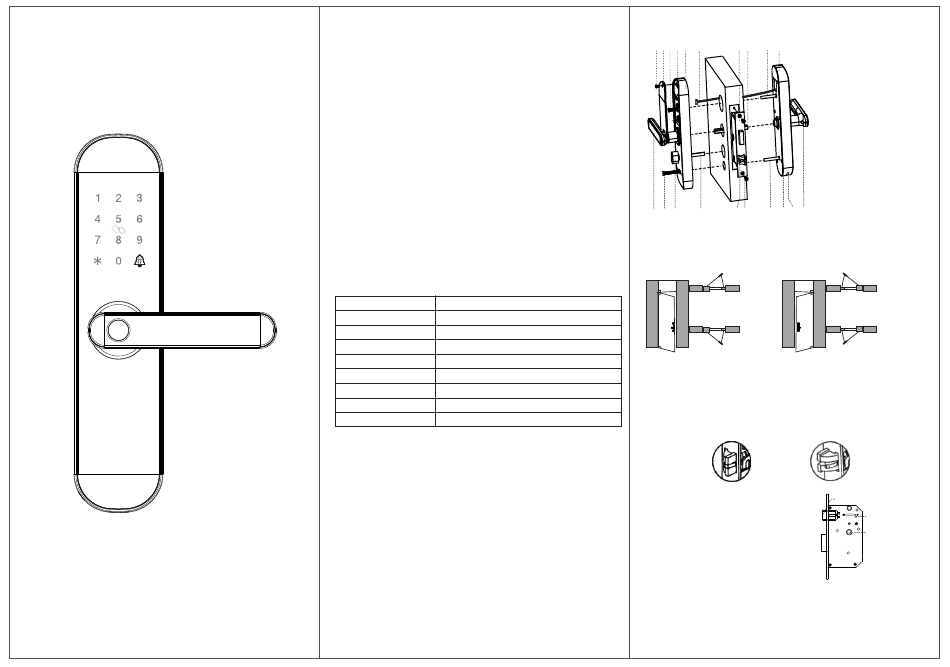

2. Installation Overview
1.Front Panel
2.Connection Column
10 9 8 7 6 5 4 3 2 1
3.Square Steel
4.Lock Body
5.Connection Line
6.Back Panel
7.`SET` Button
8.Connectiion Column Screws
9.Battery Cover
10.Battery Cover Screw
11.Back Handle
12.Connectiion Column Screws
13.Reverse Lock Knob
14.Back Locking Paddle
15.Latch-bolt
16.Lock Body Screws
17.Connectiion Column
18.Key Hole
19.Emergency Power Port
11 12 13 14 15 16 17 18 19 20
20.Front
.
3 Confirm The Direction of The Door
This smart lock is suitable for Left Out/Left In/Right Out/Right In) 4 kinds of door
opening directions.
Indoor
Left Hand Door
Right Hand Door
Left In
Outdoor
Indoor
Left Out
Outdoor
4. Open Hole
Please refer to the opening hole drawing, and drill right holes on the door.
5. Install Lock Body
5.1. Choose the installation direction of the latch-bolt of the lock body by
the door opening directions.
Left In/
Right Out
5.2. Change the direction of lock body
a. Push the reversing block to the other
side.
b. Push the latch-bolt into the lock and
turn 180 degrees.
c. Put back the reversing block, and the
latch-bolt will pop up automatically.
5.3. Put the lock body into the door frame and tighten 2 fixing screws.
Handle
Indoor
Right In
Outdoor
Indoor
Right Out
Outdoor
Left Out/
Right In
latch-bolt
Reversing block
Square Steel
Hole
Lock Body(5052)
