QUIK DRIVE
PRO SYSTEMS
OPERATING INSTRUCTIONS
Attachments: QDPRO200G2, QDPRO200SG2,QDPRO250G2, QDPRO300SG2,
QDPROLDHG2, QDPRORFG2, QDPRO300RFG2, QDPROPHG2, QDHSD60,
SAVE THESE INSTRUCTIONS

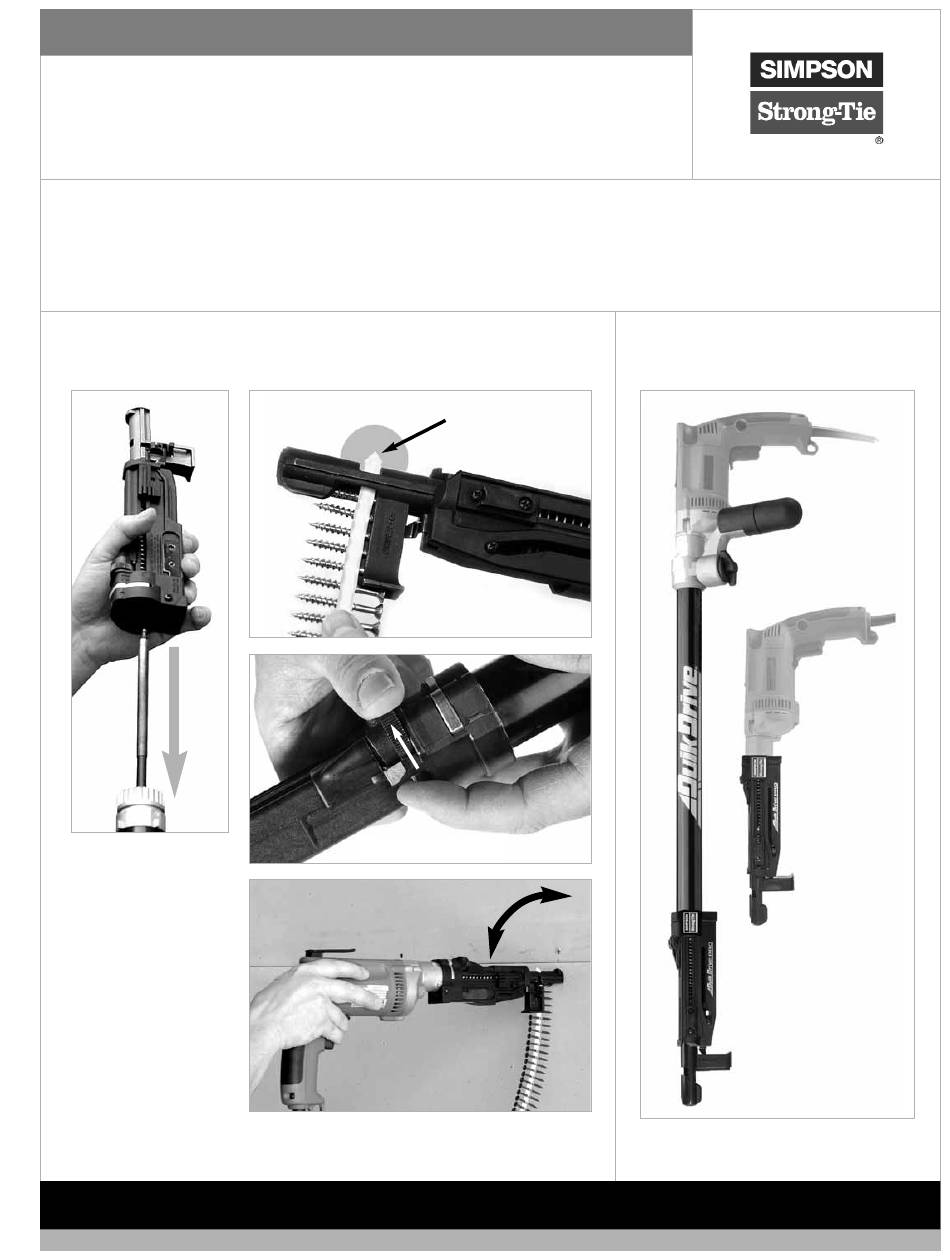

QUICK START INSTRUCTIONS
1.
DRIVING SCREWS
Be sure screwgun is in
FORWARD.
Start screwgun before
applying driving pressure.
Continue to apply pressure,
keeping bit engaged until
screw is fully driven and
clutch releases.
Keep screwgun running
between screws.
Complete instructions inside
2.
3.
Deeper
Set Driving Depth
4.
Correct Grip
800-999-5099
Pointed End First
90˚
www.strongtie.com
QDHSD75
Use With Or Without The
"Stand-up" Extension
© 2006 SIMPSON STRONG-TIE COMPANY, INC.
T-QDPROINS06
Advertisement
Related Manuals for Simpson Strong-Tie QUIK DRIVE QDPRO200G2
Summary of Contents for Simpson Strong-Tie QUIK DRIVE QDPRO200G2
- Page 1 Start screwgun before Use With Or Without The applying driving pressure. “Stand-up” Extension Continue to apply pressure, keeping bit engaged until screw is fully driven and clutch releases. Keep screwgun running between screws. 800-999-5099 www.strongtie.com T-QDPROINS06 © 2006 SIMPSON STRONG-TIE COMPANY, INC.
-
Page 2: Troubleshooting Guide

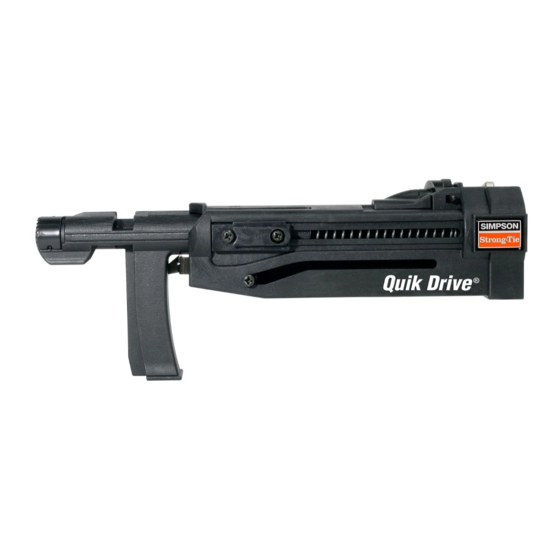

PARTS - SCHEMATIC - COMPONENTS Attachment Extension Screwgun Bit Release Slot inside extension Extension Mandrel inside attachment Mandrel Handle G2 Locking Lever Depth Adjustment Wheel Part #: PMANDREL65 (QDPRO200, Nose Piece QDPROLDHG2, QDPROPHG2) PMANDREL75 (QDPRO200SG2, QDPRO250G2, Guide Tube QDPRO300SG2, QDPRORFG2, QDHSD60, QDHSD75) Feed Pawl Lever Non-Skid Teeth... - Page 3 OPERATING INSTRUCTIONS ATTACH ADAPTOR TO YOUR SCREWGUN (If you purchased a complete system with screwgun; skip this step) • Remove nose-cone and bit holder from your screwgun according to manufacturer’s directions (most will pull straight off). • Replace with Quik Drive adaptor made for the screwgun. Follow specific instructions included with Quik Drive adaptor.
