Summary of Contents for iWave WR-10

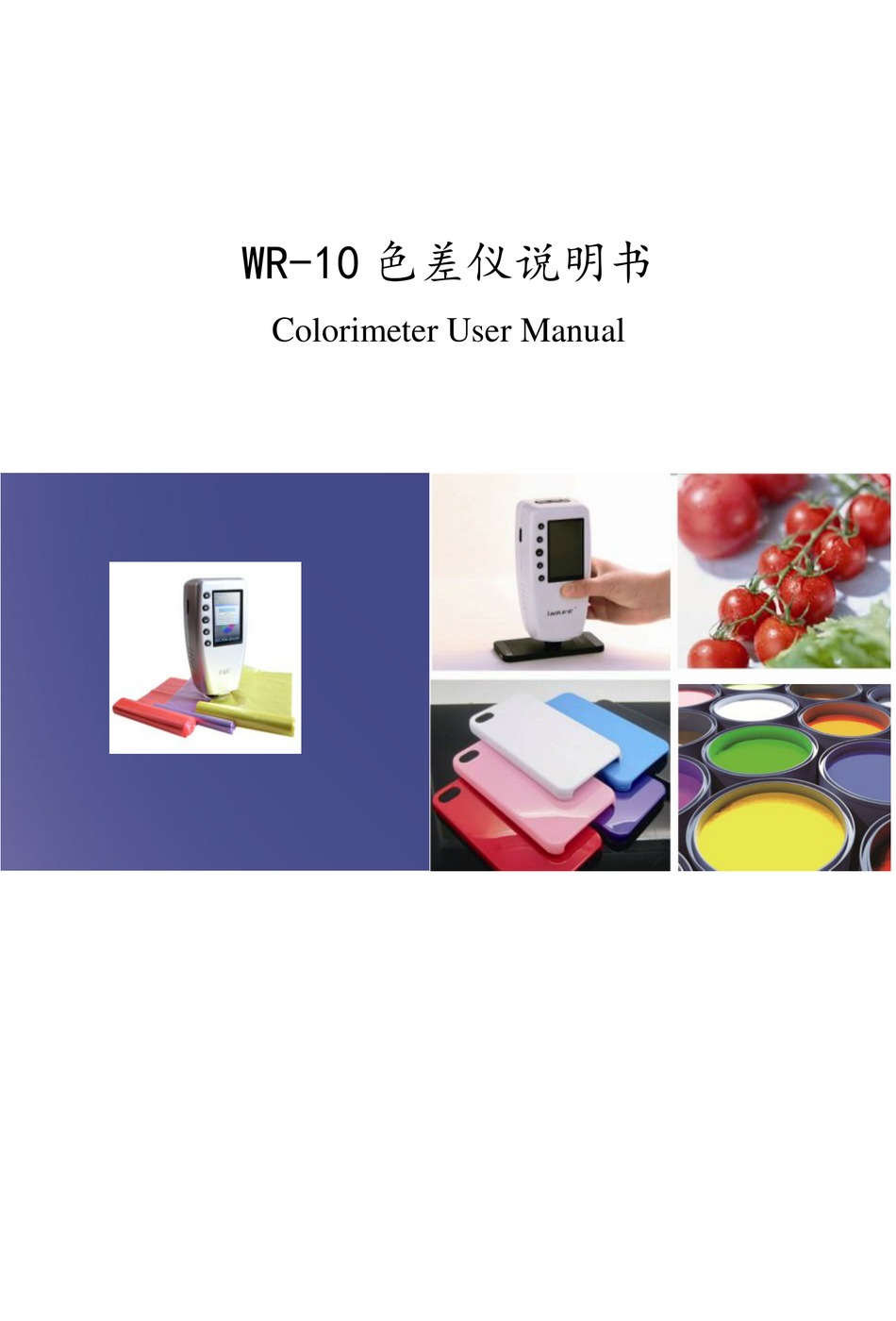

- Page 1 WR-10 色差仪说明书 Colorimeter User Manual...
-
Page 2: Table Of Contents
CONTENT Safety Instructions ..................... 1 Notes ........................1 1. Storage ...................... 2 2. Use ......................2 Overview ......................2 I. Structure......................4 1.1 Appearance ..................... 4 1.2 Power ....................5 1.2.1 Battery ..................6 1.2.2 Power Adapter ................7 II. Operation ......................7 2.1 Turn on .................... -
Page 3: Safety Instructions
WR-10 User Manual Safety Instructions In order for safe and proper use of the instrument, please read carefully and follow the instructions of the manual. Use only original power adapter and original battery to avoid fault or damage of the instrument. -
Page 4: Notes
WR-10 User Manual Notes 1. Storage ● Upon long time no use, put the instrument into a packing box; ● Store the instrument in a cool and dry environment with a temperature at -10° C~50° C and relative humidity under 85%;... - Page 5 WR-10 User Manual auxiliary color matching during the processes as injection, inking, painting and spraying coating etc. MeterTo...
-
Page 6: Structure
WR-10 User Manual I. Structure 1.1 Appearance 8. Printing interface / DC connector 9.Battery 7.Show cover screen 1. Up 6. witch 10. Measurement 2. Down 3. Confirm 4. Paging 5. Saving 11.Measurement port Figure 1. Instrument Appearance move the position of the cursor in the screen;... -
Page 7: Power
WR-10 User Manual screen (a blue background of the item will be changed to a green background after activation); fast switching between "standard measurement" and "sample measurement". Show screen show measurement result etc. Measurement - Measuring Measurement port - Optical channel for measuring. -
Page 8: Battery
WR-10 User Manual 1.2.1 Battery 1. First check and confirm if the Switch is on Out (O), then following the arrow direction as shown on Figure 2, take out the battery cover by pressing down. Figure 2. Remove the battery cover 2. -
Page 9: Power Adapter
WR-10 User Manual 1.2.2 Power Adapter 1. First check and confirm if the Switch is on Out (O), 2. Plug the input cable of the power adapter as shown on Figure 5 into the DC connector. Figure 5. Power Adapter connection II. -
Page 10: Type Sample Measurement
WR-10 User Manual 1. The Type Sample measurement gets the standard color parameters of a Type Sample; 2. The Sample measurement gets the parameters of the sample needed to be measured, while calculates the color difference data between the Sample and the Type Sample. -
Page 11: Sample Measurement
WR-10 User Manual Figure 6. Type Sample Measurement Page 2.2.2 Sample Measurement After completing the Type Sample measurement, if it is required to measure the color difference between the Type Sample and the Sample, press "Paging" to switch the screen to "SAM. " page as shown on Figure 7, the color difference parameter measured will be shown on the measurement page. -
Page 12: Check Out Information
WR-10 User Manual Figure 7. Sample Measurement Page Meanwhile, color bias will be shown on the right of the page to provide an intuitive color difference analysis. 2.3. Check out Information 2.3.1 Type Sample Record Press "Paging" to jump to "Check out Information"... - Page 13 WR-10 User Manual Figure 8. Check out Information Page In the current page, press "save" button can be activated in Figure 9 dialog box, choose "sample into" or "standard delete" operation. Figure 9 Selecting operation MeterTo...
-
Page 14: Sample Record
WR-10 User Manual 2.3.2 Sample Record After selecting the Type Sample to be checked, select "Sample Record" option to switch the screen to the Sample record page of the Type Sample as shown on Figure 10, then select Sample record by "Up"... -
Page 15: Auto Save
WR-10 User Manual backlight time, the system date and time during the measurement. Figure 11. System Setting Page 2.4.1 Auto Save As shown on Figure 19, there are two ways for saving which are "Auto Save" and "Manual Save". When setting to Auto Save, system will auto save each time measurement data of the Type Sample or the Sample. -
Page 16: Manual Save
WR-10 User Manual Figure 12. Pop up Window 2.4.2 Manual Save When setting to Manual Save, system will not auto save data, it is required, after finishing measuring, to press "Save" for manually saving the data and will pop up a prompt box as shown on Figure 13.
