Duracable DM10 Machine Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
R e a d m a n u a l b e f o r e o p e r a t i n g
stop
k e e p m a n u a l f o r f u t u r e r e f e r e n c e
d m 1 0
Right in there with you.

Advertisement

loading
Need help?

Need help?

Do you have a question about the DM10 and is the answer not in the manual?

Questions and answers

Related Manuals for Duracable DM10

Summary of Contents for Duracable DM10

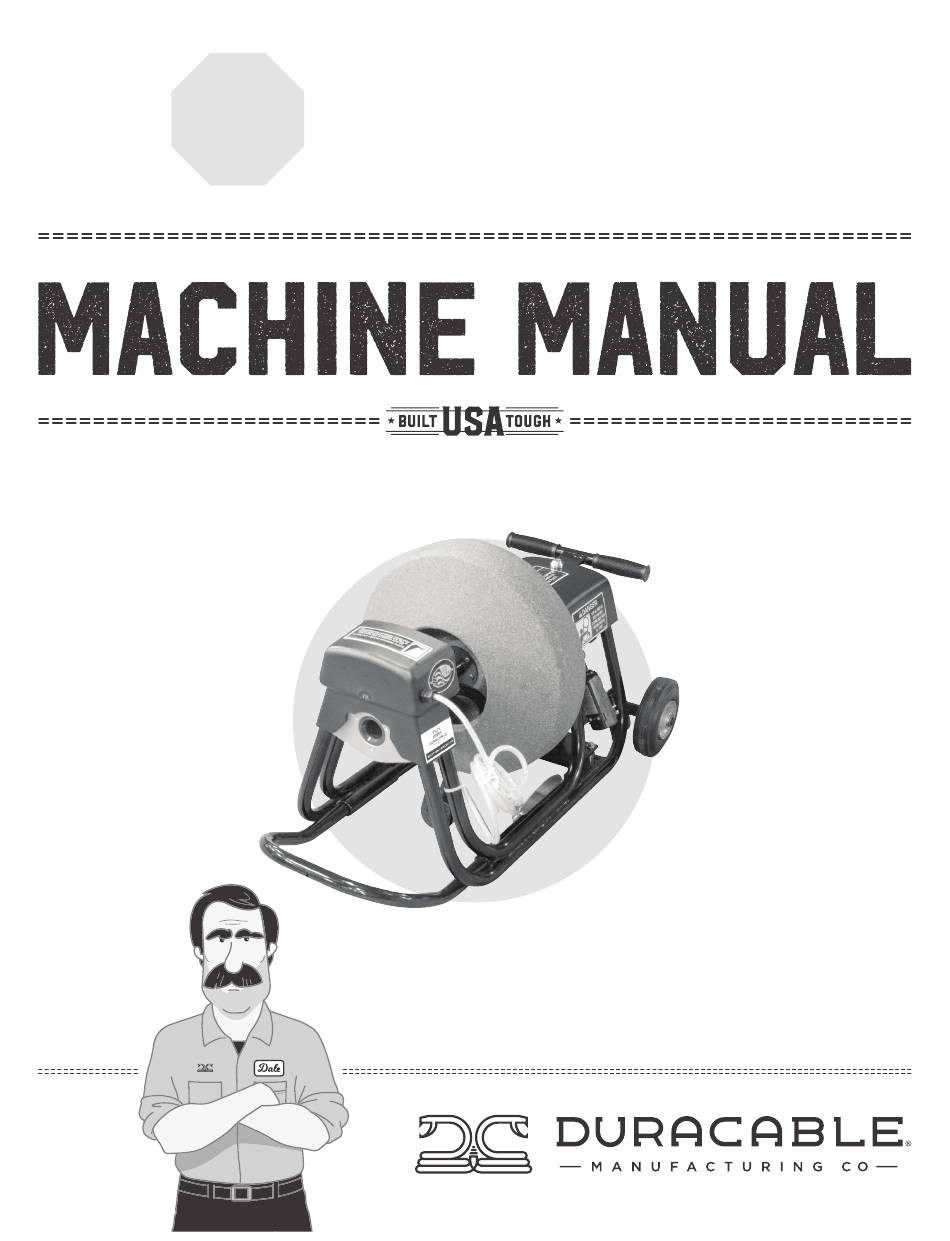

  • Page 1 R e a d m a n u a l b e f o r e o p e r a t i n g stop k e e p m a n u a l f o r f u t u r e r e f e r e n c e d m 1 0 Right in there with you.
  • Page 2 WARRANTY Duracable Manufacturing Company warrants the DM10 machine to be free from defects in material and workmanship for a period of two years from the date of purchase. Warranty service can be obtained by contacting Duracable Manufacturing Company at the address listed below. If a defect is covered by warranty, Duracable Manufacturing Company will repair or replace the defective machine or component without charge for labor or materials (freight is not included).

  • Page 3: Safety Labels

    DM10 MACHINE MANUAL Safety Labels Duracable Manufacturing uses three signal words on its WARNING safety labels and instructions. These words have the following definitions: A ‘Warning’ label indicates a potentially hazardous situation that, if not avoided, could result in death or serious injury, and DANGER includes hazards that are exposed when guards are removed.

  • Page 4: Information And Specifications

    Unpacking Your Machine available through the Duracable Product Catalog. Also, avoid The Model DM10 is shipped to you with the following parts: the use of loose-fitting clothes or jewelry when operating this the base machine, a reel, a revolving arm, a floating ring, and machine.
  • Page 5 195 RPM Belt Drive 16” Reel 3/8” x 75’ Cable Telescoping Handle PCFR (optional) DM10 with D1S, 16” open spoke metal reel (standard) DM10 with 19PRS, 19” enclosed polyethylene reel 2-Year Warranty Continuous Weld Uni-body Frame USES: 1-1/4” to 4” lines,...
  • Page 6 DM10 with 16PRS, 16” enclosed polyethylene reel. RPM/Drive (See options on the next page.) The DM10 has a 1/3 HP motor which operates at 195 rpm. Machine Specifications Maneuverability (Approximate) The DM10 comes standard with 6”...
  • Page 7 DRC16 Cover for 16” Open Spoke Reel (D1S) DRC19 Cover for 19” Open Spoke Reel (D1S1) 41060 6” Solid Wheels DKIT1 Blade Kit The DM10 SP, with a 16” open spoke metal reel, is the standard package for this machine.
  • Page 8 DM10 MACHINE MANUAL DM10 SchematiC 25010K – SWITCH PLATE ASSY.
  • Page 9 DM10 MACHINE MANUAL DM10 SchematiC The entire line item in bold identifies the name of an entire assembly. The “Z” shaped arrow identifies all the parts that make up that assembly. You can purchase the entire assembly, or just the individual parts.
  • Page 10 DM10 MACHINE MANUAL DM10 SchematiC The entire line item in bold identifies the name of an entire assembly. The “Z” shaped arrow identifies all the parts that make up that assembly. You can purchase the entire assembly, or just the individual parts.
  • Page 11 DM10 MACHINE MANUAL 16PRS (16” Polyethylene Reel) Schematic for DM10 Item Qty. Part# Description D1HF Inner Clamp Washer Reel Bearing WA22 .25 Lock Washer WA47 .25 Body Washer SHCS34 1/4-20 x 7/8 SBHS FLNUT5 .25-20 Flange Nut 771409 Sled Plastic Drums Drive Hub Finished MM60 .5-13 x .75 Std.
  • Page 12 DM10 MACHINE MANUAL Mounting Instructions for DM10 Axle Assembly Mounting Instructions for PCFR...
  • Page 13 The PCFR’s Length is 6”; Width is 9”; Height is 12”; and Weight is 12 pounds. The PCFR is standard equipment on DM10. Note: The recommended grease for the housing blocks is Lps Thermaplex 70614 or Lubri- ®...
  • Page 14 DM10 MACHINE MANUAL PCFR Bearing Kit How to Install the PCFR22SER Bearing Kit 1. Remove the six hex flange nuts 4. Remove the upper piston (PCFR14) 8. Clean all the parts in kerosene or a (FLNUT3). and /or the lower pistons (PCFR19).
  • Page 15 DM10 MACHINE MANUAL Power Cable Feed and Return (PCFR) Schematic...
  • Page 16 DM10 MACHINE MANUAL PCFR SchematiC The entire line item in bold identifies the name of an entire assembly. The “Z” shaped arrow identifies all the parts that make up that assembly. You can purchase the entire assembly, or just the individual parts.

  • Page 17: Electrical Schematic

    Electrical Schematic The wiring diagram for the basic DM10 is shown above. If you experience any electrical difficulties in operating your machine, or you notice any frayed or inadequate wiring, or wiring that does not conform to the diagram, discontinue use of your machine...

  • Page 18: Electrical Safety

    Overhead Power Lines The DM10 machine must be grounded to protect the operator from shock. This is accomplished by using the Ground Fault • When working outdoors, keep clear from overhead power Circuit Interrupter (GFCI) Cord to ensure proper grounding.
  • Page 19 DM10 MACHINE MANUAL How to splice duraflex cable ® 1. Cut a few inches off of each 3. Apply Loctite Retaining 2. Spray Loctite Primer in and 4. Insert splice core into cable cable end and remove any burrs Compound to splice core.
  • Page 20 D M 1 0 M a c h in e M a n u al d m 1 0 3 0 0 A S H WO RT H ROA D W E ST D E S M O I N E S , I OWA 5 0 2 6 5 D U R A C A B L E .
