Summary of Contents for Redrock RR1EK2-0001
-

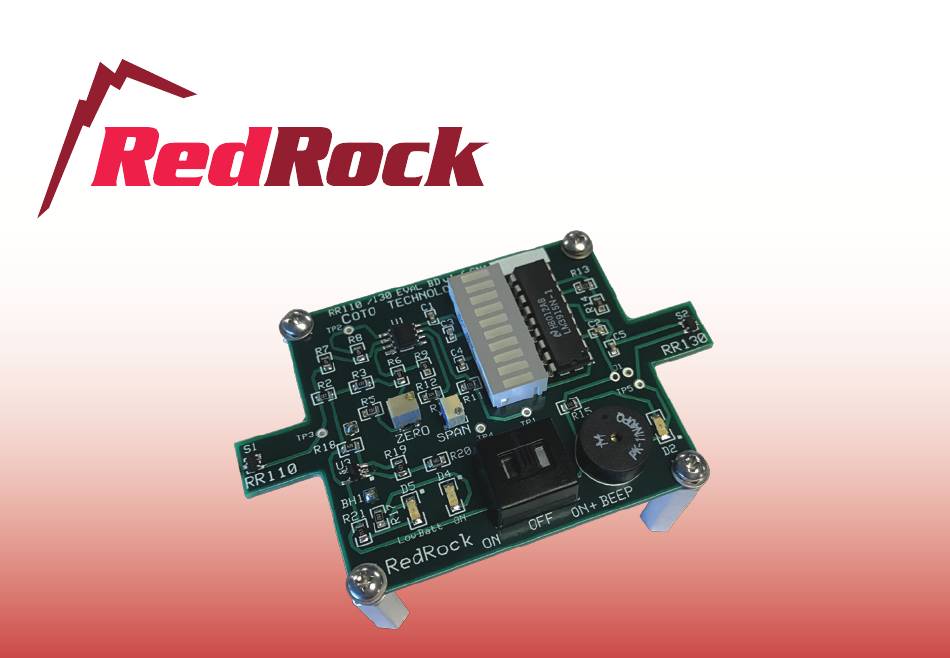

Page 1: Evaluation Board
RR1EK2-0001 Evaluation Board ™ User’s Guide... - Page 2 Q. Is RedRock easy to “design in” to my application? A. The answer is YES! The RR110 is a two pin resistor; all it takes is a - An N52 Cylindrical magnet measuring 3/16” x 3/8”. Note that reference resistor to setup a voltage divider circuit that can easily the north pole is indicated for easy reference.
- Page 3 ™ RedRock® TMR-Based Magnetic Sensors ™ HIGH SENSITIVITY Maximizes activation distance ULTRA LOW LEAKAGE CURRENT Preserves battery power Ultra-Miniature Magnetic Switches & Sensors TINY PACKAGE Saves PCB real estate www.cotorelay.com redrock@cotorelay.com • RR110 RR110 Series • Analog Sensor •...
