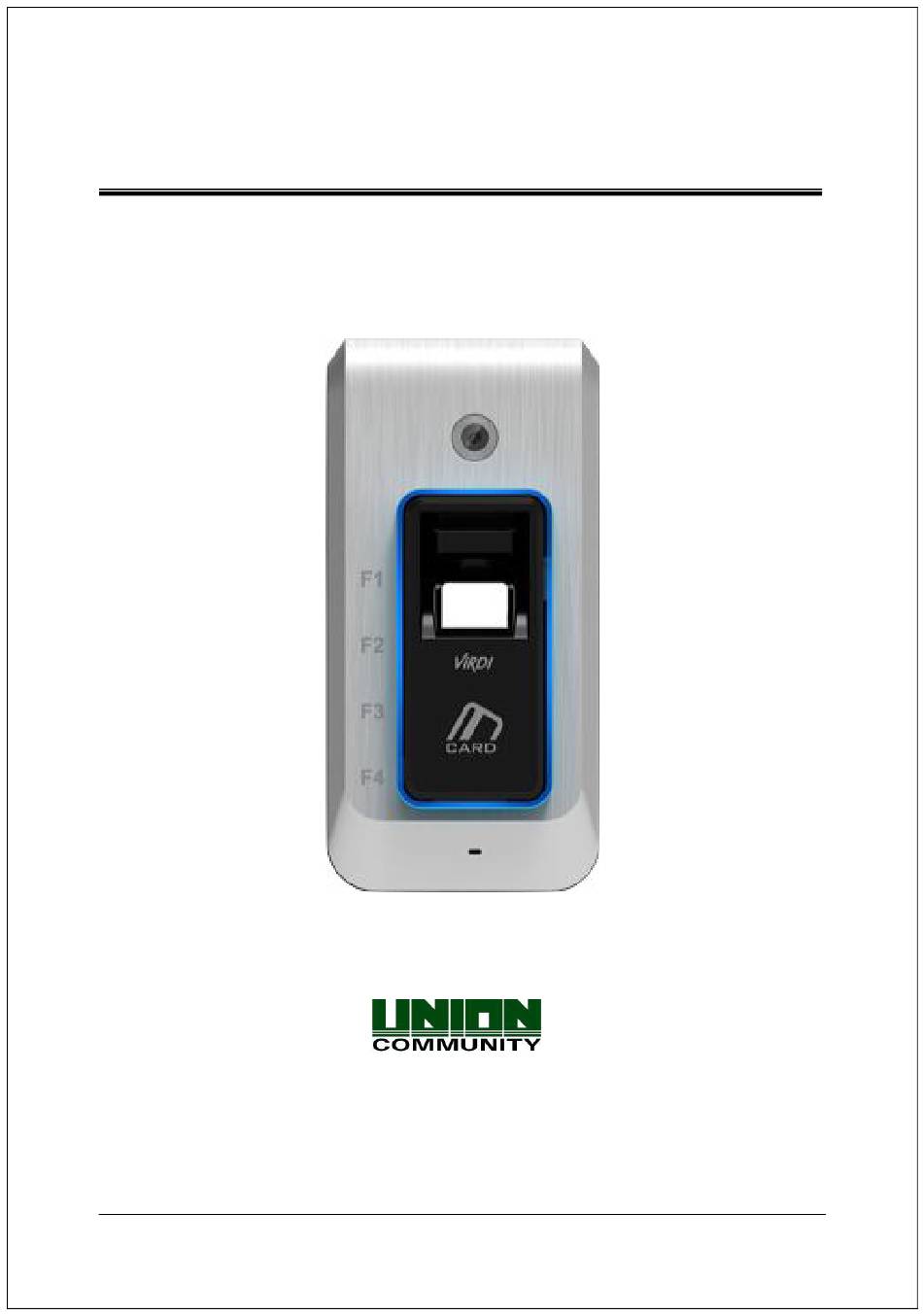

  • Page 1 Smart-i. User Guide Version eng-1.01 Copyright 2000 By Union Community Co., LTD.

  • Page 2: Revison History

    Smart-i 사용자 가이드 <Revison History> Version Date Description Firmware Version 10.51.00-000.13 1.01 2012-08-30 Initial Release < Glossary >  Admin, Administrator - As a user who can enter into the terminal menu mode, he can register/modify/delete terminal users and change the operating environment by changing settings.

  • Page 3: Table Of Contents

    Smart-i 사용자 가이드 Table of Contents <Revison History> ....................2 < Glossary >......................2 Table of Contents ..................... 3 1. Before use......................4 1.1. Safety precautions ..................4 1.2. Terminal description..................5 1.3. LED signal during operation............... 5 1.4. Function key information during operation ..........5 1.5.

  • Page 4: Before Use

    - If the above cautions are ignored, it may result in property loss or human injury. ※ Under no circumstances will Union Community be responsible for accidents or damages caused by inappropriate use of the product caused by not referring to the user manual.

  • Page 5: Terminal Description

    Smart-i 사용자 가이드 1.2. Terminal description Camera Touch Key Fingerprint Sensor 3 Color LED (R/G/B) Egression Return Card Area 1.3. LED signal during operation Light off : Normal ● Abnormal Flickering : When the lid is open Light on : When authentication is failed ●...

  • Page 6: Voice Information During Operation

    Smart-i 사용자 가이드 1.5. Voice information during operation Action Voice Information Enter fingerprint using the fingerprint input “Please enter your fingerprint.” window Authentication successful “You are authorized.” Authentication failed “Please try again.” 1.6. Buzzer sound during operation Pressing a key When a button is pressed or a card is being read “ppig”...
  • Page 7 Smart-i 사용자 가이드  Cautions about fingerprint condition Depending on the user’s fingerprint condition, some fingerprints may not be used or may cause an inconvenience.  If the fingerprint is damaged or very unclear, then it cannot be recognized. Please use a password instead in this case.

  • Page 8: Introduction

    Smart-i 사용자 가이드 2. Introduction 2.1. Features  IP65 Outdoor Rating – Die Cast Casing : The terminal can be installed outdoor.  Understated Design - Simple and understated design with minimum interface reflected without LCD - Pursuit of convenience and luxury from simplicity ...

  • Page 9: Configuration

    (Smart Phone) Smart-i ● - In a case of Smart-I has already connected to specific AP - A smartphone connects to the same AP and communicates with the terminal - Name of default AP: unisSvrAP, password: 1234567890 [WPAPSK_AES] (It can be modified on smartphone application) - Server AP setup above can be modified in terminal settings menu of smartphone application.

  • Page 10: Specifications

    Smart-i 사용자 가이드 2.3. Specifications ITEM SPEC REMARK 32Bit RISC CPU(400MHz) Weatherproof Figure IP65 Camera 1.3M Pixel Touch Key 4key (F1~F4) 3 Colors (Red, Green, Blue) Voice Message & Beep 8M SDRAM 1,000 User MEMORY (1,000 Finger) 4M + 256M FLASH...

  • Page 11: Environment Settings

    Smart-i 사용자 가이드 3. Environment Settings 3.1. Check items before setting the environment 3.1.1. Entering menu ▶ [Hold (F4) down]  (Blue LED light flickering) Admin authentication  (Red & Green LED lights on) Menu mode When you hold [F4] down longer than 4 sec, you enter menu.

  • Page 12: Menu Configuration

    Smart-i 사용자 가이드 3.2. Menu Configuration - [Fn~ long] means hold a key down for longer than 4 sec. [F1~ long] Waiting for Checking  Blue LED light on for 1 sec : AP Mode Authentication terminal mode Mode Green LED light on for 1 sec : Network Mode [F2~ long] ...
  • Page 13 "CAUTION: Exposure to Radio Frequency Radiation. Antenna shall be mounted in such a manner to minimize the potential for human contact during normal operation. The antenna should not be contacted during operation to avoid the possiblility of exceeding the FCC radio frequency exposure limit.
