Summary of Contents for HSV HSV-SPZ-189906

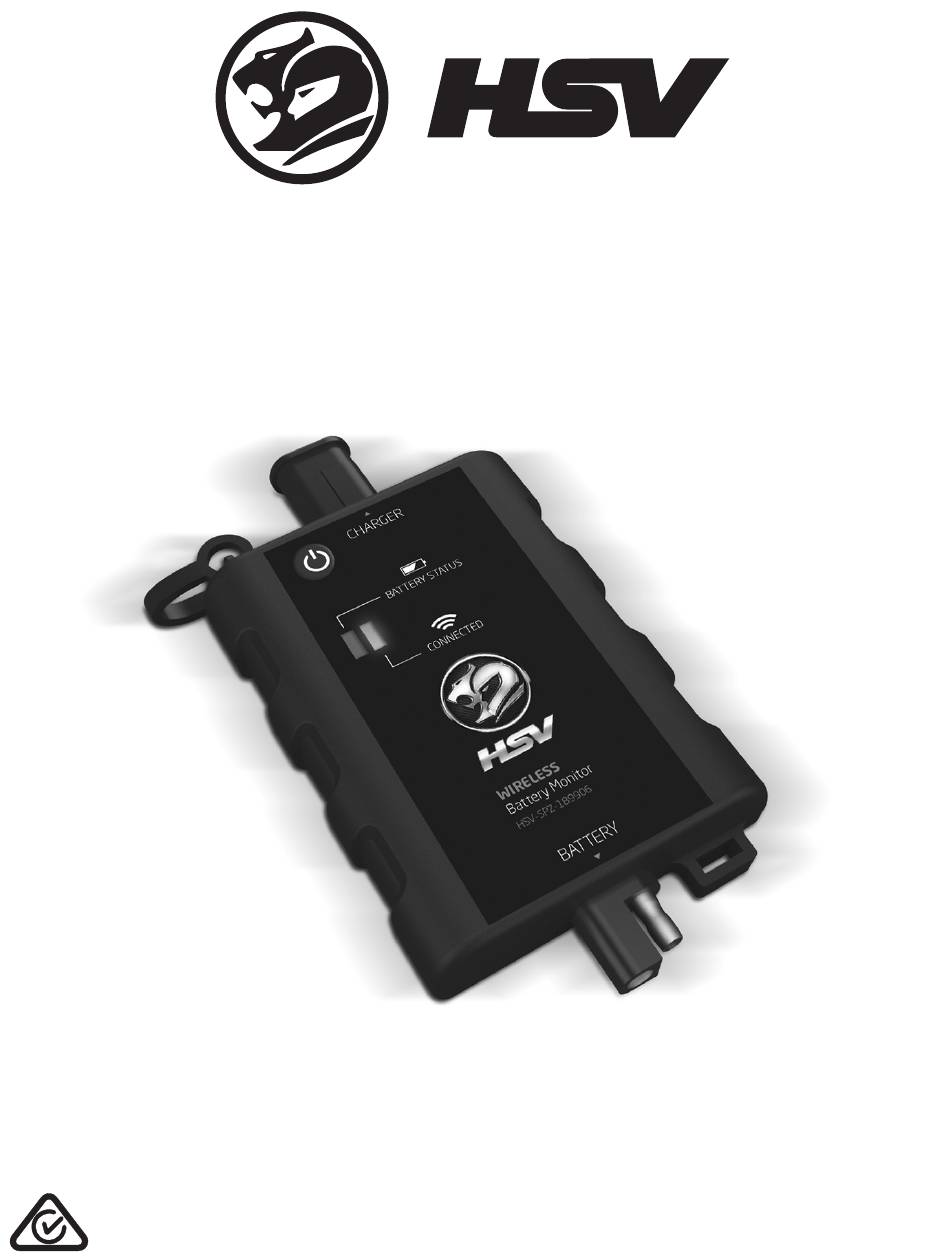

- Page 1 Wireless Battery Monitor MODEL HSV-SPZ-189906 User Manual PLEASE SAVE THIS OWNERS MANUAL AND READ BEFORE EACH USE. This manual will explain how to use the monitor safely and effectively. Please read and follow these instructions and precautions carefully. 0099002062-01...
-
Page 2: Table Of Contents
CONTENTS IMPORTANT SAFETY INSTRUCTIONS ...............3 ASSEMBLY INSTRUCTIONS ..................3 FEATURES ........................3 INSTALLING THE APP AND REGISTERING YOUR MONITOR ........4 SETTING UP THE BATTERY MONITOR ..............5 USING THE BATTERY MONITOR ................6 MAINTENANCE AND CARE ..................8 TROUBLESHOOTING ....................8 REPLACEMENT PARTS ....................9 DISPOSAL INFORMATION ...................9 LIMITED WARRANTY ....................9... -
Page 3: Important Safety Instructions
1. IMPORTANT SAFETY INSTRUCTIONS 1.1 SAVE THESE INSTRUCTIONS – This manual contains important safety and operating instructions. 1.2 This battery monitor is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the battery monitor by a person responsible for their safety. -
Page 4: Installing The App And Registering Your Monitor
STATUS BUTTON Turns on the Battery Status LED, to provide a quick three-state level of charge. NOTE: When the monitor is first connected to a battery or charger, the Yellow/ Orange status LED will flash for 5 minutes. During this time, the monitor is in access mode and its wireless network may be programmed or updated. -
Page 5: Setting Up The Battery Monitor
REGISTERING A MONITOR When using the App for the first time with a new monitor, you must register your monitor to the App. 1. Open the App on your mobile device. 2. Press the Home icon. 3. Tap the three short horizontal bars to bring up a menu. -
Page 6: Using The Battery Monitor
NOTE: To assure a good wireless signal, the monitor should be secured close to an opening on the vehicle. 7. Upon connecting the monitor to a battery, the yellow/orange LED will flash for 5 minutes. Use your smartphone to set up the wireless connection, if not already connected. - Page 7 THE STATUS SCREEN NOTE: Tap any icon to bring up more information. A. Charge Indicator Ring – The color of this ring and the amount of the circle that is filled indicates the charge level. A completely green ring indicates the battery is fully charged.
-
Page 8: Maintenance And Care
7. MAINTENANCE AND CARE • Clean the ring terminals each time you are finished using them. Wipe off any battery fluid that may have come in contact, to prevent corrosion. • Occasionally clean the case of the unit with a soft cloth. •... -
Page 9: Replacement Parts
9. REPLACEMENT PARTS Ring connectors (quick-connect) ........... 2299003149Z 10. DISPOSAL INFORMATION This product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. - Page 10 the applicable manual or other specifications given by the Manufacturer, insufficient care, repairs carried out by persons or entities or with parts not approved by Manufacturer, poor care, accidents, unauthorized changes or modifications, incorrect transport, storage or treatment of the Product; d.
- Page 11 DECLARATION OF CONFORMITY Schumacher Electric Corporation 801 East Business Center Drive Mount Prospect, Illinois, 60056, U.S.A. certify that the Wireless Battery Monitor Model HSV-SPZ-189906 complies with the following standards: EMC Directive: 2014/30/EU AS/NZS CISPR 32:2015 EN 62311:2008 RED EMC: Draft ETSI EN 301 489-1 V2.2.0 Draft ETSI EN 301 489-17 V3.2.0...
