AIBASE HA-ZW-5SABC Quick Start Manual

4-in-1 motion sensor

Table of Contents

Quick Links

Download this manual

Content:

4-in-1 Motion Sensor ........................................................................................................错误!未定义书签。

1. Product Introduction .............................................................................................................................. 2

2. Product Appearance .............................................................................................................................. 2

3. Specification ........................................................................................................................................... 3

4. Features/Capabilities: ............................................................................................................................ 4

5. Installation Position and Notes .............................................................................................................. 4

6. Product Installation ................................................................................................................................ 5

7. Product Usage ........................................................................................................................................ 6

7.3.1 Association Command ...................................................................................................................... 8

7.3.2 Configuration Command Parameters ............................................................................................... 8

8. Attention .............................................................................................................................................. 10

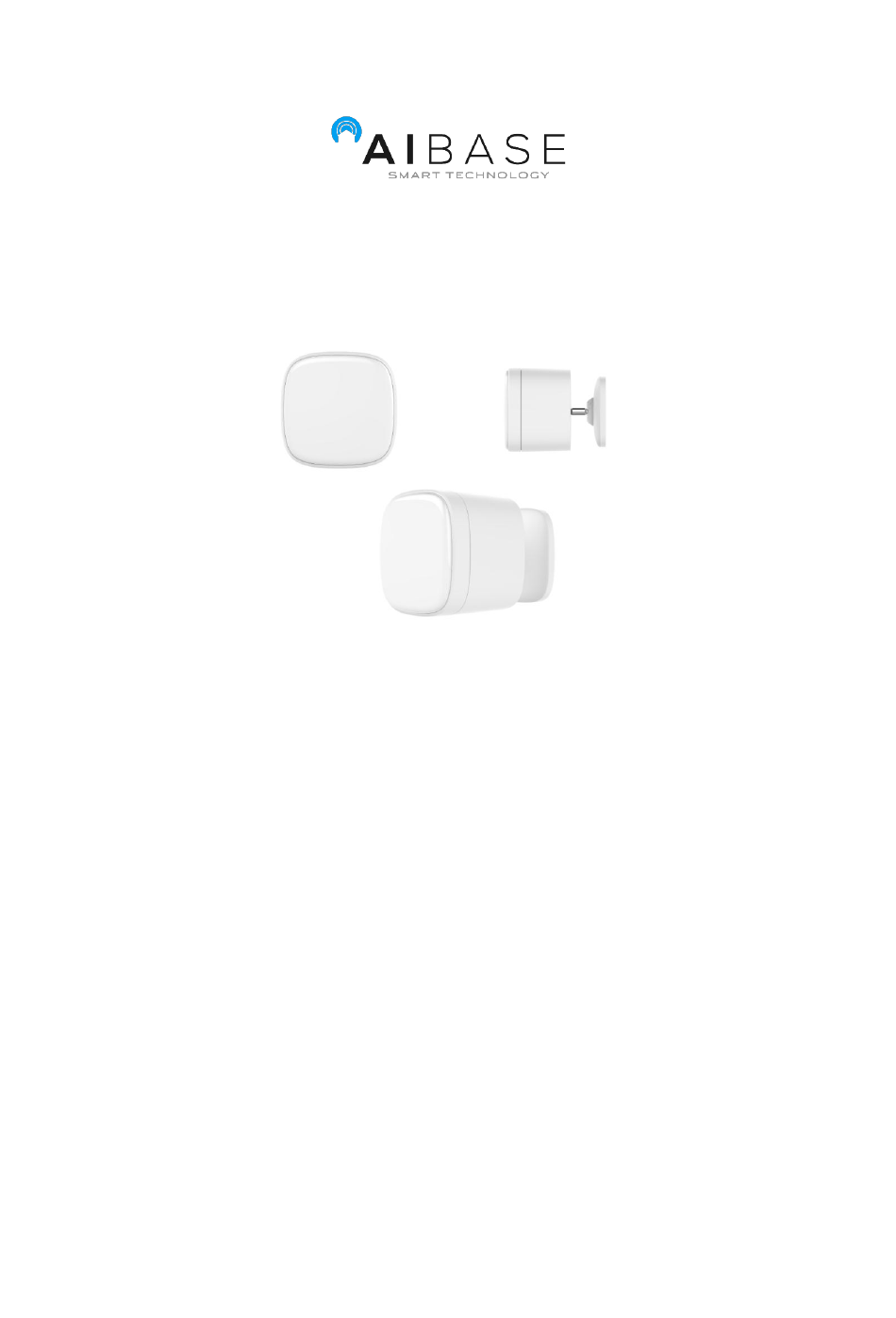

AIBASE 4-in-1 Motion Sensor

Table of Contents

Need help?

Do you have a question about the HA-ZW-5SABC and is the answer not in the manual?

Questions and answers

Summary of Contents for AIBASE HA-ZW-5SABC

Page 1: Table Of Contents
AIBASE 4-in-1 Motion Sensor Content: 4-in-1 Motion Sensor ......................错误!未定义书签。 1. Product Introduction ..........................2 2. Product Appearance ..........................2 3. Specification ............................3 4. Features/Capabilities: ..........................4 5. Installation Position and Notes ......................4 6. Product Installation ..........................5 7. Product Usage ............................6 7.3.1 Association Command ........................
Page 2: 4-In-1 Motion Sensor
4-in-1 Motion Sensor Quick Start Guide 1. Product Introduction The 4-in-1 Motion Sensor is designed for using with scenes in home automation systems, integrate motion, light , temperature and humidity sensors, powered by CR123A battery or MicroUSB cable. The Motion Sensor lets you know when movement is detected in a certain area and can trigger different actions in response to that movement (or lack of movement).
Page 3: Specification
② LED Indicator: if sensor has not been added to controller, the LED will blink for 5 seconds. The LED will keep on 3 seconds when joined to controller successfully. 3. Specification Module Name HA-ZW-5SABC PIR （ Passive Infrared ）...
Page 4: Features/Capabilities
 The AIBASE 4-in-1 Motion Sensor is powered by the batteries or Micro USB reserved.  The AIBASE 4-in-1 Motion Sensor is designed to be mounted on the wall and indoor use only.  The AIBASE 4-in-1 Motion Sensor’s Luminance intensity/ Temperature/ Humidity Report time interval can be configured by APP.
Page 5: Product Installation
5. This device can be mounted on the wall only, it cannot be installed on the ceiling. 6. Product Installation Adding the device as accessories, install it according to the diagram below: ① Choose the installation location on the wall, Rotate universal wheel clockwise and take off it, fix the universal wheels by screw or 3M adhesion tape on the wall.
Page 6: Product Usage
7. Product Usage Function of Action Button: 7.1 All functions of each trigger: Trigger Description In the network: 1. The LED turn on 5 seconds then turn off. 2. Send battery report and Wakeup Notification. Not in the network: 1. The LED will turn on 1 second then turn off. 2.
Page 7 (within 1 second) 2. Add 4-in-1 Motion Sensor into a Z-Wave network: a. Let the primary controller go into inclusion mode (If you don’t know how to do this, refer to its manual). b. Short Press one time this Z-Button. c.
Page 8: Association Command
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
Page 9 Turn on/off PIR 0x0A indicates the highest 0x0A sensitivity, 0x00 means off PIR detection function. (0x0c) Valid values: 0x00-0x0A 0x1e PIR triggers the waiting time value, (0x0d) Valid values: 0x05-0x3BC4 0x00 Whether the BASIC SET command is sent after the (0x0e) PIR is triggered 0 = Unable...
Page 10: Attention
0x15180 The interval time of sending the battery level 0 then the (0x68) reporting. if setting to battery level reporting is disabled 1. Valid values: 0x00-0x28DE80 2. The minimum interval time is 1 minutes. For example, if the value is set to be more than 1 and less than 60, the interval time is 1 minutes, if the value is set to be more than 60 and less than 120, the interval time is 2 minutes.
Page 11 Thirdly, if the operating temperature range is out of the defined range of product specification may result in some product faults, which is not in the technique commitment of manufacturer. Fourthly, this product has mot pet immunity function, so when some animals go through in front of the product may trigger PIR function reported.
