Slim Retracting Clothesline Line Replacement
Suits models: Slim Retracting 4 Line (FD51201) & 6 Line (FD51200)
Important: Moving parts will be adjusted. Please wear safety goggles and take precaution at all stages.
Important: Hills is not liable for any product damage caused during this process.

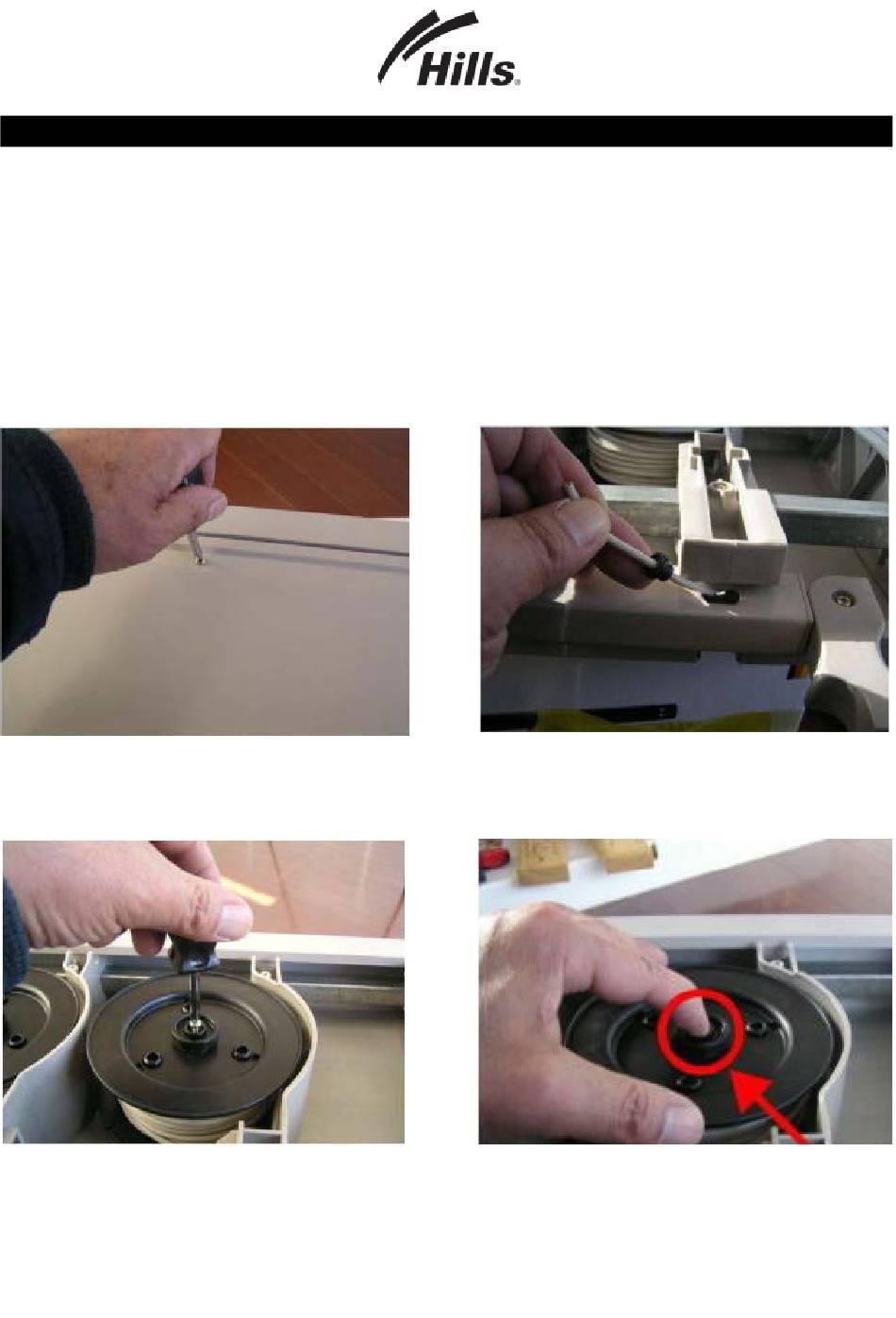

1. Remove all four screws located on the back
panel and remove the cover.
3. Unscrew the reel.
Important: Make sure the lines are replaced one by one.
2. Pull the line out of the receiving bar & cut the
Note:
knot off.
Be careful not to lose the black
plastic line retainer.
4. Remove the reel.
dislodge the spool axle.
Manual......
Note
: Be careful to not to
..
Advertisement
Table of Contents
Summary of Contents for Hills FD51201
- Page 1 Important: Make sure the lines are replaced one by one. Important: Moving parts will be adjusted. Please wear safety goggles and take precaution at all stages. Important: Hills is not liable for any product damage caused during this process. 1. Remove all four screws located on the back 2.
- Page 2 5. Remove the old line from the reel. 6. Insert new line & tie a knot as shown. 8. Install the spool and secure the screw firmly. 7. Wind the line tightly and evenly around the spool, ensuring it is not crossed over. 9.
- Page 3 We are committed to providing you with complete customer satisfaction. If you have any questions or comments about our products or services please contact your nearest customer service centre during their local business hours: Australia: 1300 300 564 New Zealand: 0800 021 027 Hills Branded Products: www.hills.com.au...
