Summary of Contents for Doughty Engineering Ltd T58240

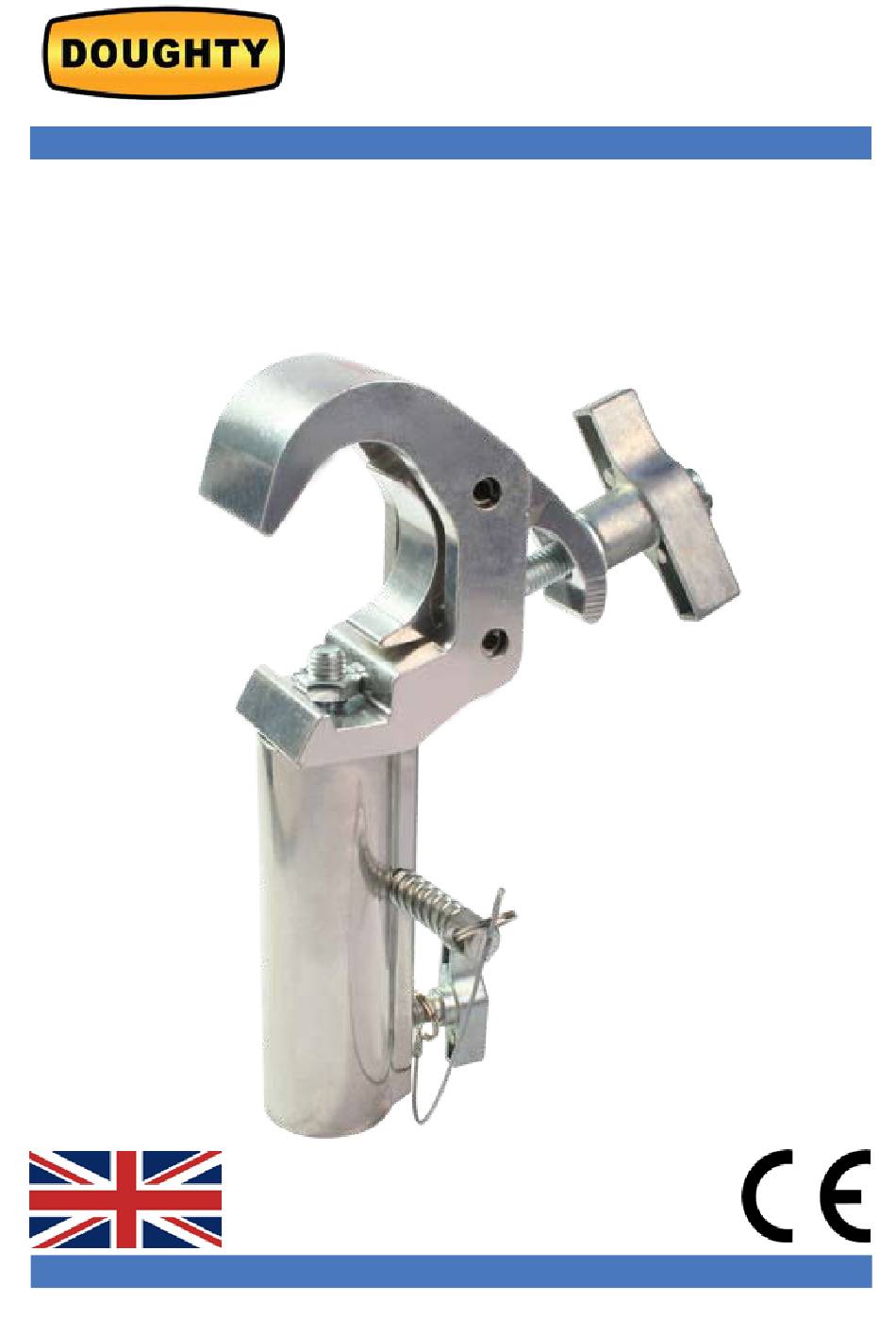

- Page 1 User Manual www.doughty-engineering.co.uk T58240 / T58421 Quick Trigger TV Clamp Version 10/11 www.doughty-engineering.co.uk...
- Page 2 Parts & Features Body Roll Pin Handle Trigger Safe Working Eyebolt Load Assembly Roll Pin Receiver www.doughty-engineering.co.uk...
- Page 3 When used in conjunction with other accessories, care must be taken to ensure that the minimum SWL of any component is not exceeded. Doughty Engineering Ltd does not recommend using any clamps which do not fully encompass the tube for overhanging. All open clamps including hookclamps should be used in a vertical orientation only.
- Page 4 Data Sheet www.doughty-engineering.co.uk...
- Page 5 Spares www.doughty-engineering.co.uk...
- Page 6 Requirements of the EC Directives and amendments and the National Laws and Regulations adopting these Directives. Description: Quick Trigger TV Clamp Model/s: Part No. T58240 / T58241 SWL: 200Kg Factor: 5:1 are in conformity with the provision of the following EC Directives:...
- Page 7 Contact Doughty Engineering Ltd Crow Arch Lane Ringwood, Hampshire, BH24 1NZ Tel: +44 (0) 1425 478961 Fax: +44 (0) 1425 474481 email: sales@doughty-engineering.co.uk Web: www.doughty-engineering.co.uk Note: Whilst every effort has been made to ensure that the information contained within this manual is correct, Doughty Engineering does not accept any liability for errors or omissions.
