Operating Instructions

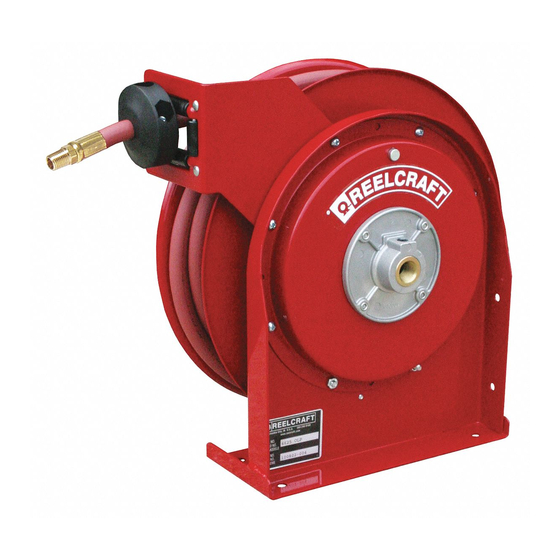

Series 4000 Spring Driven Hose Reels
Low Pressure Model Numbers:
4400 OLP
4430 OLP
4420 OLP
4435 OLP
4425 OLP
4600 OLP

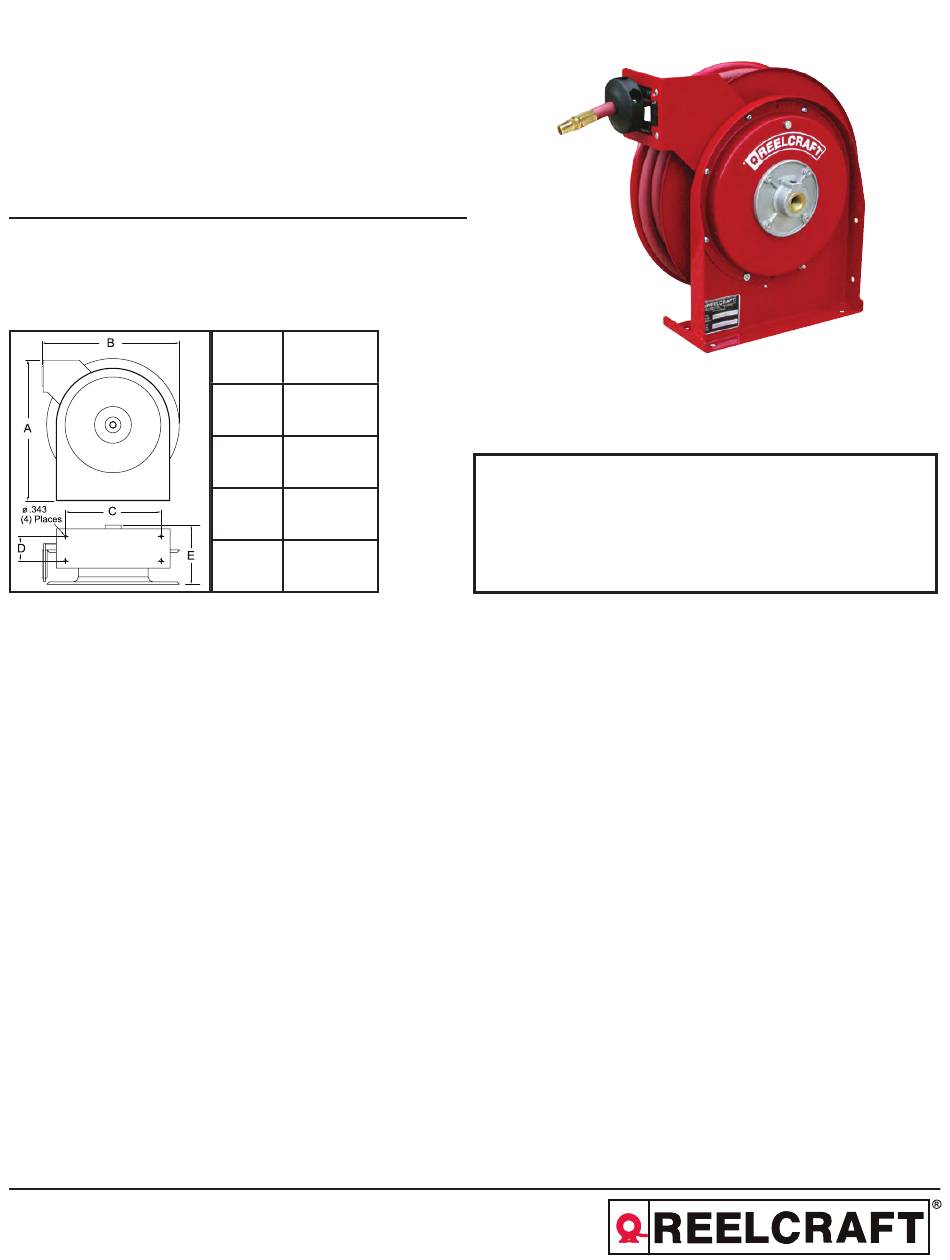

Dimensions

INSTALLATION:

A flexible hose connection must be used between the hose reel inlet and the source of supply to prevent possible
misalignment and binding.

MOUNTING:

The hose reel is equipped with a universal mounting bracket so that it can be mounted on the floor, wall or
ceiling; whichever place is convenient. The hose guide arm can be moved to the position desired by removing
the screws fastening the guide bracket to the reel base. Shift the guide arm bracket so the hose comes off the
reel at the desired position and replace the screws. NOTE: For proper installation in wall mount applications, ensure
reel is mounted with inlet on the right as you are facing the reel. Failing to do so could cause latching issues.

LUBRICATION:

Hose reel spring and bearings are factory lubricated and require no further lubrication.
REPLACING HOSE: 1. Wind spool flange clockwise-facing swivel-until spring is tight.
2. Back off three turns and latch.
3. Insert hose through roller guide.
4. Connect hose fitting to swivel joint and secure hose with clamps.

ADJUSTMENTS:

To adjust spring tension, add or remove wraps of hose from the spool, one wrap at a time until desired tension is
obtained.

REPAIRS:

Extensive repairs should be performed only by an authorized serviceman or factory to avoid damage which may
void your warranty. Remove all spring tension before beginning disassembly process.
Reelcraft Industries, Inc. • 2842 E Business Hwy 30, Columbia City, IN 46725
Ph: 800-444-3134 / 260-248-8188 • Fax: 800-444-4587 / 260-248-2605
Customer Service: 855-634-9109 • reelcraft@reelcraft.com • www.reelcraft.com
4615 OLP
4620 OLP
4617 OLP
4625 OLP
A
12 7/8"
B
12 3/8"
C
8"
D
2 1/2"
E
5 5/8"
1. Do not use reel at higher pressures or temperatures than listed on
the back of this bulletin.
2. Remove all spring tension before beginning dissassembly process.

SAFETY

Form# 828-696 Rev: 8/2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4000 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for ReelCraft 4000 Series

  • Page 1 Remove all spring tension before beginning disassembly process. Form# 828-696 Rev: 8/2015 Reelcraft Industries, Inc. • 2842 E Business Hwy 30, Columbia City, IN 46725 Ph: 800-444-3134 / 260-248-8188 • Fax: 800-444-4587 / 260-248-2605 Customer Service: 855-634-9109 • reelcraft@reelcraft.com • www.reelcraft.com...
  • Page 2 500 P.S.I. 300 P.S.I. 300 P.S.I. 300 P.S.I. 300 P.S.I. 500 P.S.I. 300 P.S.I. 300 P.S.I. 300 P.S.I. 300 P.S.I. Max. Operating Temperature 210 °F 150 °F 150 °F 150 °F 150 °F 210 °F 150 °F 150 °F 150 °F 150 °F Page 2 www.reelcraft.com...
  • Page 3 Remueva todos los resortes de tension antes del proceso de desmontaje. Page 3 Form# 828-696 Rev: 8/2015 Reelcraft Industries, Inc. • 2842 E Business Hwy 30, Columbia City, IN 46725 Ph: 800-444-3134 / 260-248-8188 • Fax: 800-444-4587 / 260-248-2605 Customer Service: 855-634-9109 • reelcraft@reelcraft.com • www.reelcraft.com...
  • Page 4 500 P.S.I. 300 P.S.I. 300 P.S.I. 300 P.S.I. 300 P.S.I. 500 P.S.I. 300 P.S.I. 300 P.S.I. 300 P.S.I. 300 P.S.I. Maxima temperatura de presion 210 °F 150 °F 150 °F 150 °F 150 °F 210 °F 150 °F 150 °F 150 °F 150 °F Page 4 www.reelcraft.com...
  • Page 5 Enlevez toute tension de ressort avant de désassembler. Page 5 Form# 828-696 Rev: 8/2015 Reelcraft Industries, Inc. • 2842 E Business Hwy 30, Columbia City, IN 46725 Ph: 800-444-3134 / 260-248-8188 • Fax: 800-444-4587 / 260-248-2605 Customer Service: 855-634-9109 • reelcraft@reelcraft.com • www.reelcraft.com...
  • Page 6 300 P.S.I. 300 P.S.I. 500 P.S.I. 300 P.S.I. 300 P.S.I. 300 P.S.I. 300 P.S.I. Température d'opération maximum 210 °F 150 °F 150 °F 150 °F 150 °F 210 °F 150 °F 150 °F 150 °F 150 °F Page 6 www.reelcraft.com...
