Safe Aurora Manual

Group 0+1 isofix 9-18kg
Hide thumbs
Table of Contents

Advertisement

Quick Links

AURORA
GROUP 0+1 ISOFIX
9 - 18 KG

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Aurora and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Safe Aurora

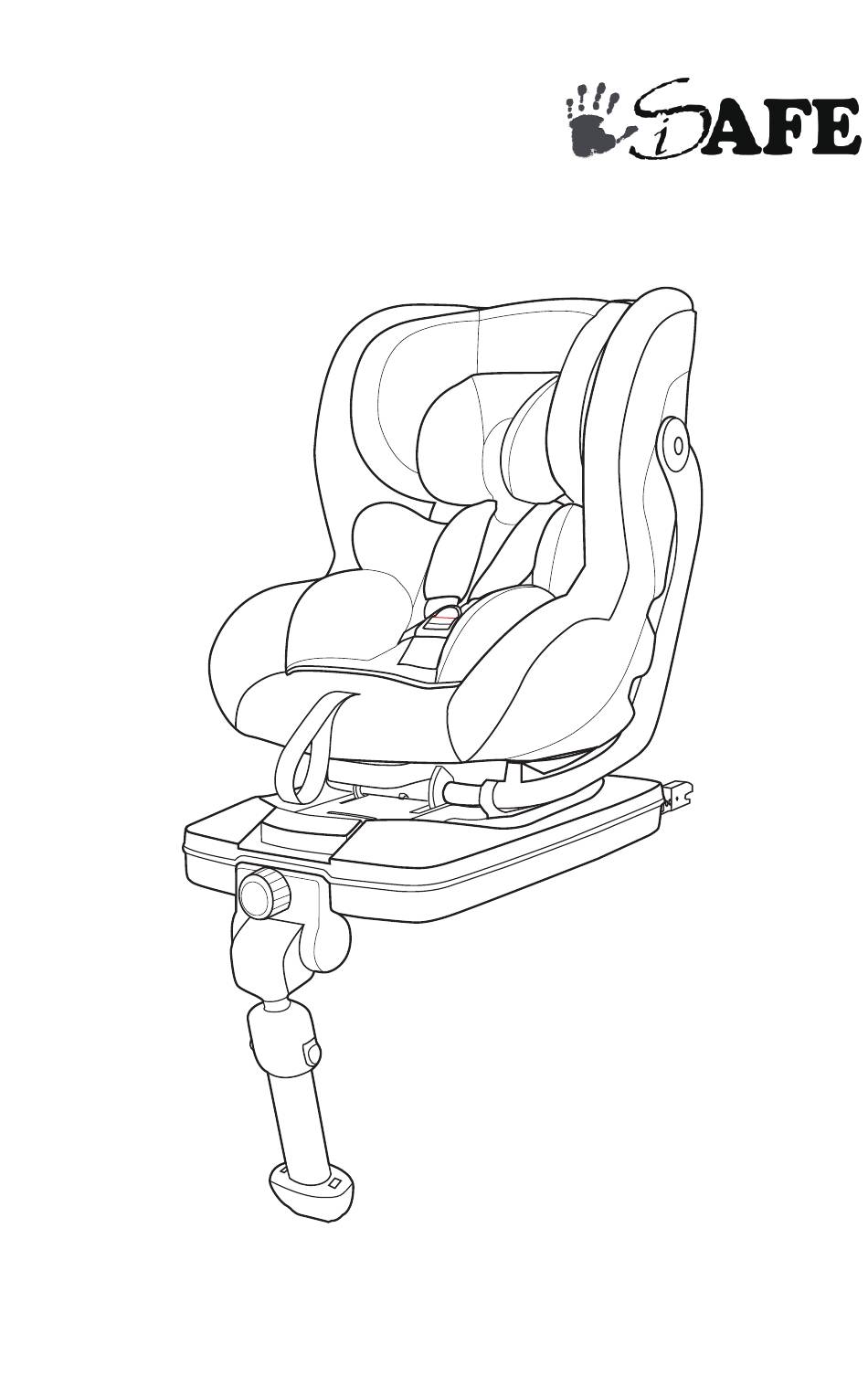

  • Page 1 AURORA GROUP 0+1 ISOFIX 9 - 18 KG...

  • Page 2: Table Of Contents

    Important Notes Overview Using the Aurora Child Car seat General Guidelines For Isofix-Suitable Vehicles Removing the seat Mounting the Aurora Mounting the Seat Opposite to the driving direction (From Birth to 13kg) Mounting the seat in the driving direction (From 9 to 18kg)

  • Page 3: Important Notes

    Important Notes Caution! Make sure you observe the relevant instructions in the user manual of your vehicle before transporting children. Take particular note of all information provided for the use of child seats in connection with airbags. Warning! • Children often carry small objects (e.g.toys) in jacket or trouser pockets, and may also wear clothes with rigid components (e.g.
  • Page 4 • Never leave your child unsupervised in the car seat – whether harnessed or not. • Make sure you secure any luggage and loose items to reduce the risk of injury in case of an accident. • The manual must always be carried with the child safety seat. •...

  • Page 6: Overview

    13.Rear-Lock USING THE AURORA CHILD CAR SEAT Thank you for purchasing our car seat AURORA. The product The baby car seat is suitable for children up to the age of approx. 4 or up to 18kg. It is suitable for use in vehicle with Isofix-approved seats (see vehicle list) in accordance with the relevant child restraint and anchoring category.

  • Page 7: For Isofix-Suitable Vehicles

    Should your vehicle not be listed, please ensure that the AURORA can be properly mounted in your car / on the desired seat before you purchase the child seat. Read the user manual provided by the manufacturer of your vehicle...

  • Page 8: Removing The Seat

    REMOVING THE SEAT The seat (A) of AURORA can be removed from the Isofix-Basis (B). Always remove the child first before removing the seat! The Locking Handle is located underneath the seat and on the front top of the Isofix base.

  • Page 9: Mounting The Aurora

    To make mounting easier, we recommend to mount the Isofix base first, then to lock the seat to Isofix base. Always mount and remove the AURORA without a child in it! Step 1. Mount the Isofix base Rotate the Isofix system control dial on the front of Isofix base to the anti-clock wise direction, so you can see the Isofix connector moved...
  • Page 10 Lock the seat shell to the Isofix base. Depending on the age of the child, then decide to lock the seat in rearward position (Birth to 13kg) or forward position (9 to 18kg). CAUTION! Do not use on seats with airbags. Danger to life! Always mount the seat without a child in it.
  • Page 11 Rotate the Isofix system control dial to the Clockwise direction until the seat close as possible to the back rest of the vehicle’s seat, make sure the gap has eliminated. Adjusting the Support Leg. Push the release buttons on both side to the center direction, and extending the support leg to the surface of floor until it fully reaches,...
  • Page 12 Step 2.2 Locking the seat to the Isofix base in FORWARD POSITION: 9 to 18kg a) Lifting the seat, lock the mental tube in the underneath of the rear side of the shell to lock into the REAR-LOCK on Isofix base. b) Pull the LOCKING-HANDLE forward, and push the front edge of the shell downwards, and lock the mental tube in the underneath of the front side of the shell to lock into FRONT-LOCK on Isofix base.
  • Page 13 Rotate the Isofix system control dial to the Clockwise direction until the seat close as possible to the back rest of the vehicle’s seat, make sure the gap has eliminated. Adjusting the Support Leg. Push the release buttons on both side to the center direction, and extending the support leg to the surface of floor until it fully reaches,...

  • Page 14: Securing Your Child In The Aurora

    SECURING YOUR CHILD IN THE AURORA CAUTION! Check that the AURORA is mounted properly and that all belts have proper tension, also that all locking mechanisms are secured and all safety displays show GREEN. Adjusting the central device At the front of the seat under the cover there is the central adjusting device, which clamps the central harness tight.
  • Page 15 Checking Point. - Check that the buckle is fully closed, and none of the harness straps are twisted. - Check that the headrest must be adjusted to the size of the child at proper position for child’s head. - Check that the shoulder pad should be located slightly above the child’s shoulder.
  • Page 16 REMOVING THE AURORA To make the removal of AURORA easier we recommend you first remove the seat (A) (See “Remove the Seat”) Always mount and remove the seat without a child in it! and move the support leg into its top-most Rotate the isofix sytem...

  • Page 17: Using The Reclining Adjustment

    USING THE RECLINING ADJUSTMENT Pull the reclining handle underneath of front seat forward, release the handle at your required position until you hear a “CLICK” to make sure it’s locked.
  • Page 18 REMOVING/ATTACHING THE COVER To remove the cover, the seat shell (A) has to be removed from the base (B) first. (SEE “Remove the seat”) 1. Loose the harness system by adjusting the central device. 2. Unlock the harness buckle, then take off the Pelvic Insert for new born to 13kg.

  • Page 19: Care Instructions

    REMOVING THE PELVIC INSERT If the child’s bodyweight exceeds 9kg, the pre-mounted pelvic insert should be removed. CARE INSTRUCTIONS Light dirt can be easily removed with a damp cloth. The cover can also be removed and washed at 30’C. Remove the back cushion from the cover of the head support before you wash it.

  • Page 20: Warranty Conditions

    WARRANTY CONDITIONS The warranty period begins at the time of purchase. The warranty period granted in compliant with the legal warranty period in the country of purchase. In terms of content, the warranty covers rework, replacement delivery, or a rebate as the manufacturer sees fit.
  • Page 21 Baby Travel LTD Tel: +44 (0) 871 2880873 Mob: +44 (0) 7977 591385 Fax: +44 (0) 1902 366333 e-Mail: Baby2Travel@GOOGLEMAIL.com Web: www.Baby-Travel.uk.com e-Mail: Baby2Travel@aol.com (enquiries) Address: Unit 30 Watery Lane Ind. Est. Willenhall, West Midlands WV13 3SU United Kingdom...
