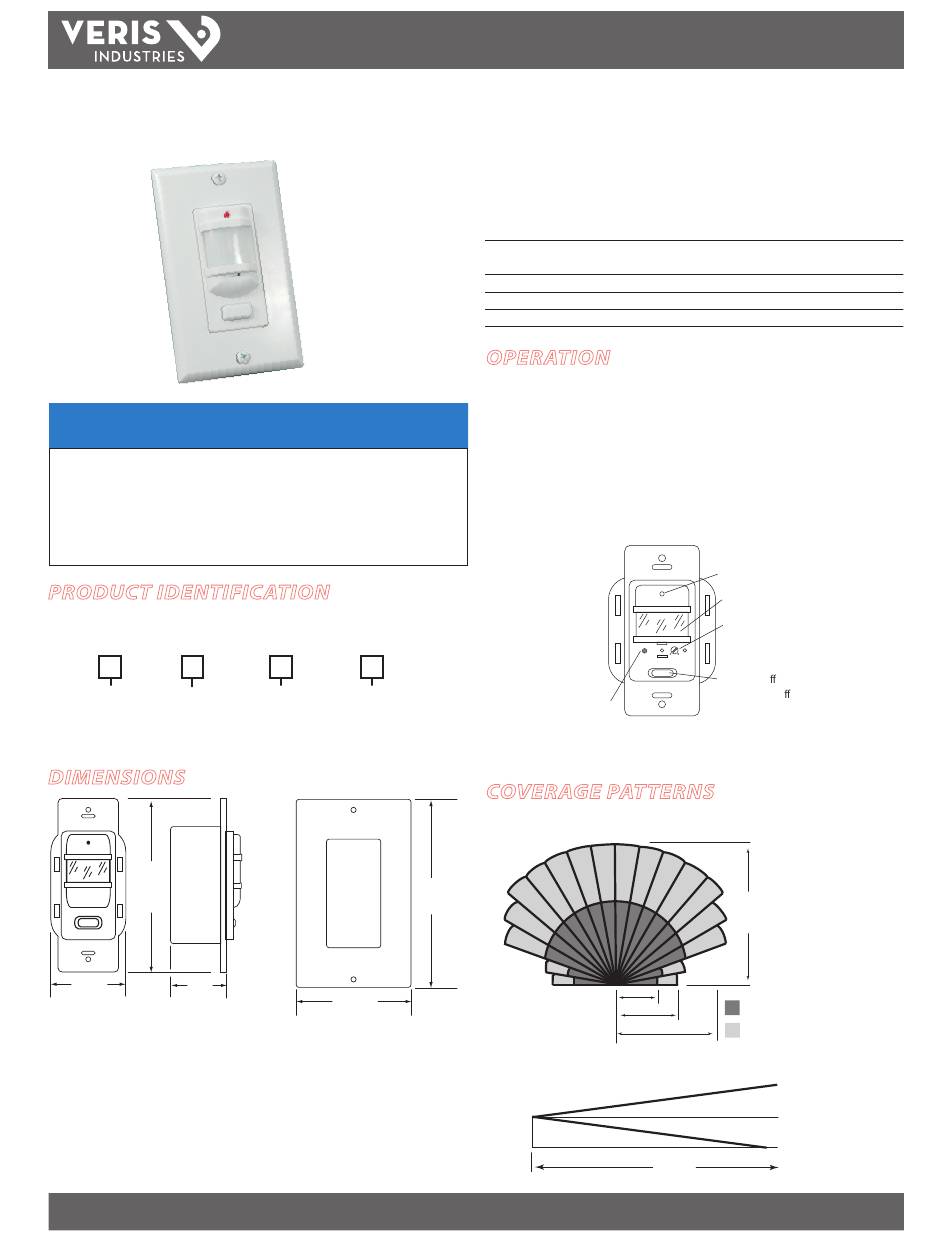

VERIS INDUSTRIES, INC. MSBPM1 Series Installation Manual

TM
MSBPM1x
NOTICE
• This product is not intended for life or safety applications.
• Do not install this product in hazardous or classified locations.
• Read and understand the instructions before installing
this product.
• Turn off all power supplying equipment before working on it.
• The installer is responsible for conformance to all applicable codes.
PRODUCT IDENTIFICATION
Sensing
Technology
Turn On
MSB P M
= Passive Infrared = Manual
(PIR)
DIMENSIONS
4.2"
(107 mm)
1.3"
1.8"
(33 mm)
(46 mm)
ZL0031-0B PAGE 1
Alta Labs, Enercept, Enspector, Hawkeye, Trustat, Veris, and the Veris 'V' logo are trademarks or registered trademarks of Veris Industries, L.L.C. in the USA and/or other countries.
OCCUPANCY SENSORS
# of circuits Color
1
W = White
V = Ivory
(114 mm)
2.8"
(69 mm)
©2012 Veris Industries USA 800.354.8556 or +1.503.598.4564 / support@veris.com
MSBPM1x
Wall Switch Replacement Occupancy Sensors
Installer's Specifications
Input
Output 120 VAC, 1000 W max. tungsten incandescent load; 1000 VA max. ballast load;
Temperature
Humidity
Agency Approvals
OPERATION
MSBPM1x wall switch occupancy sensors use passive infrared technology (PIR)
to combine occupancy detection and voltage switching in a single package. The
MSBPM1x replaces existing standard light switches in home or office environments,
providing major motion detection up to 1000 sq. ft., and minor motion detection up
to 400 sq. ft., over a 180° range. The sensor is equipped with an manual on/off button
to switch between the on and off position, while a bypass button provides "always
on" capability. The time delay before the switch deactivates is user adjustable from
15 seconds to 30 minutes.
Bypass
button
(In = Always ON,
Out = Normal Operation)
COVERAGE PATTERNS
Top View
4.5"
10 ft (3.1m)
15 ft (4.6m)
25 ft (7.6m)
Side View
4 ft
(1.2m)
INSTALLATION GUIDE
120 or 277VAC ±10% 60 Hz
¼ hp max. motor load; 277 VAC; 1800 VA max. ballast load
0° to 50°C (32° to 122°F)
Max. 90% RH non-condensing
UL and cUL Listed; FCC part 15 for Home and Office Use (Class B)
LED
PIR Motion Sensor Lens
Time-delay Setting:
15 sec. min. (fully CCW)
30 min. max. (fully CW)
Manual On/O Button
(Push On, Push O )
35 ft
(10.7m)
Minor Motion
Major Motion
35 ft
(10.7m)
02121
