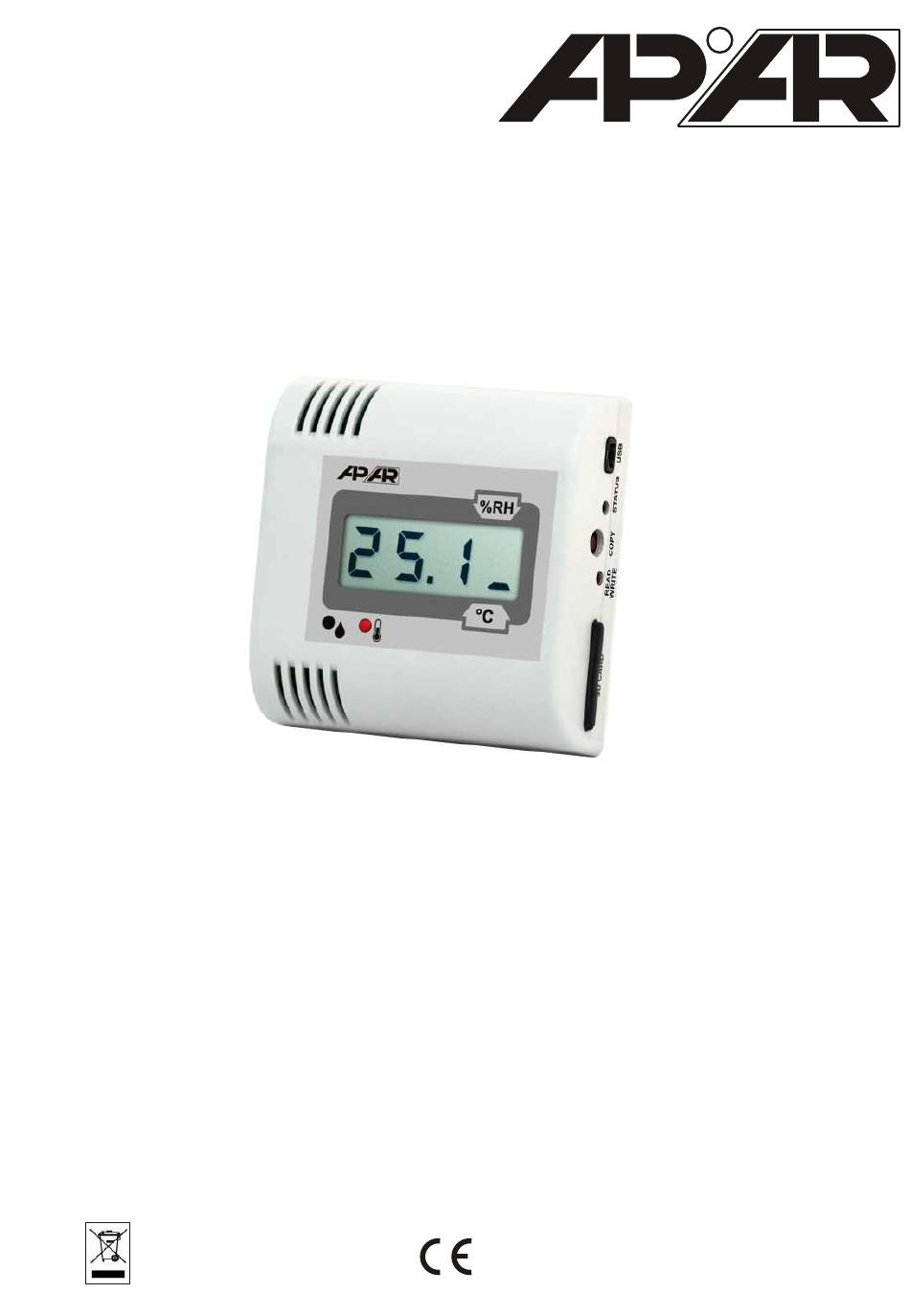

- Page 1 APAR 02-699 Warsaw, ul. Klobucka 8 pav. 119, Poland Tel. +48 22 853-48-56, 853-49-30, 607-98-95 +48 22 607-99-50 E-mail: info@apar.pl Web site: www.apar.pl USER MANUAL TEMPERATURE AND HUMIDITY RECORDER AR236 TEMPERATURE RECORDER AR232 Rev. 1.1.0 2010-02-16...
-
Page 2: Table Of Contents
- 1 - Thank you for choosing our product. This user manual contains information about proper and safe operation of the recorder. Read and understand this user manual before installation and operation of the recorder. If you have any questions, consult a technician. TABLE OF CONTENTS 1. -
Page 3: Overview Of The Recorder
- 2 - 1 . OVERVIEW OF THE RECORDER AR236 - measure and record the humidity and temperature of air or other neutral gases AR232 - measure and record the temperature of air or other neutral gases record data in a text file in internal memory of the recorder or on SD/MMC card in the FAT file system... -
Page 4: General Specification
Measurement range - humidity ............0 ÷ 100 %RH - temperature........... -30 ÷ 80 °C Measurement accuracy - humidity (AR236)...........±3 %RH (20 ÷ 80 %RH) ±3 ÷ 5 %RH (in the remaining measurement range) - temperature - AR236..........±0,5°C (20 ÷ 30°C) ±0,5 ÷... -
Page 5: Casing Dimensions And External Parts Identification
After connecting the recorder to the computer, operating system (Windows 2000/XP/Vista/7) will detect the recorder as "APAR USB DEVICE" and will ask you to install the drivers. Using the wizard to add new devices browse for the drivers on the CD shipped with the recorder (DRIVERS directory). -
Page 6: Parameters Adjustment
2. . Using configuration file created by ARSOFT-WZ4 (off-line): - run the application and in the "Device" box enter the name of the device (AR232 or AR236) - adjust parameters showed according to the table 1 (except for RTC and ID) - current configuration may also be created via changing values from an existing file - save the created configuration in a file (AR236.cfg or AR232.cfg) and store it on an SD/MMC card... -
Page 7: Operation And Features Of Sd/Mmc Card
Properly installed card in the "SD/MMC CARD" slot has the following features: - store files with values written to the files during recording - off-line parameter configuration (using a configuration file AR236.cfg or AR232.cfg with "COPY" button, see section 7) - move archive „csv”... -
Page 8: Viewing Recorded Measurements And Events
1:Start and 2:Stop recording parameters (see section 7, table 1). The filename consists of the device type (AR236 or AR232), 11:ID and date and time when the file was created, e.g.: "AR236_1_2009-08-30_10-57-16.csv". Records are written in the following format: "ordinal number of the event;date;time;event identification number;argument 1;argument 2,checksum". -
Page 9: Lcd Display Operation Modes
- 8 - 11. LCD DISPLAY OPERATION MODES The display can be set within one of two operating modes: economic (12:LCDmod = economic) or constant (LCDmod = constant). In economic mode the display turns on for a few seconds after performing every measurement while recording or can be enabled manually by pressing the "COPY"... -
Page 10: Replacing The Battery
- 9 - 14. BATTERY REPLACEMENT To replace batteries, you will need two screwdrivers. Perform the following procedure: - remove the back cover (Fig. 1) - carefully remove the circuit board (Fig. 2) - replace battery with a new one of correct type (section 3) - make sure the battery is placed correctly in the slot - put the circuit board back in place and close the back cover NOTE:...
