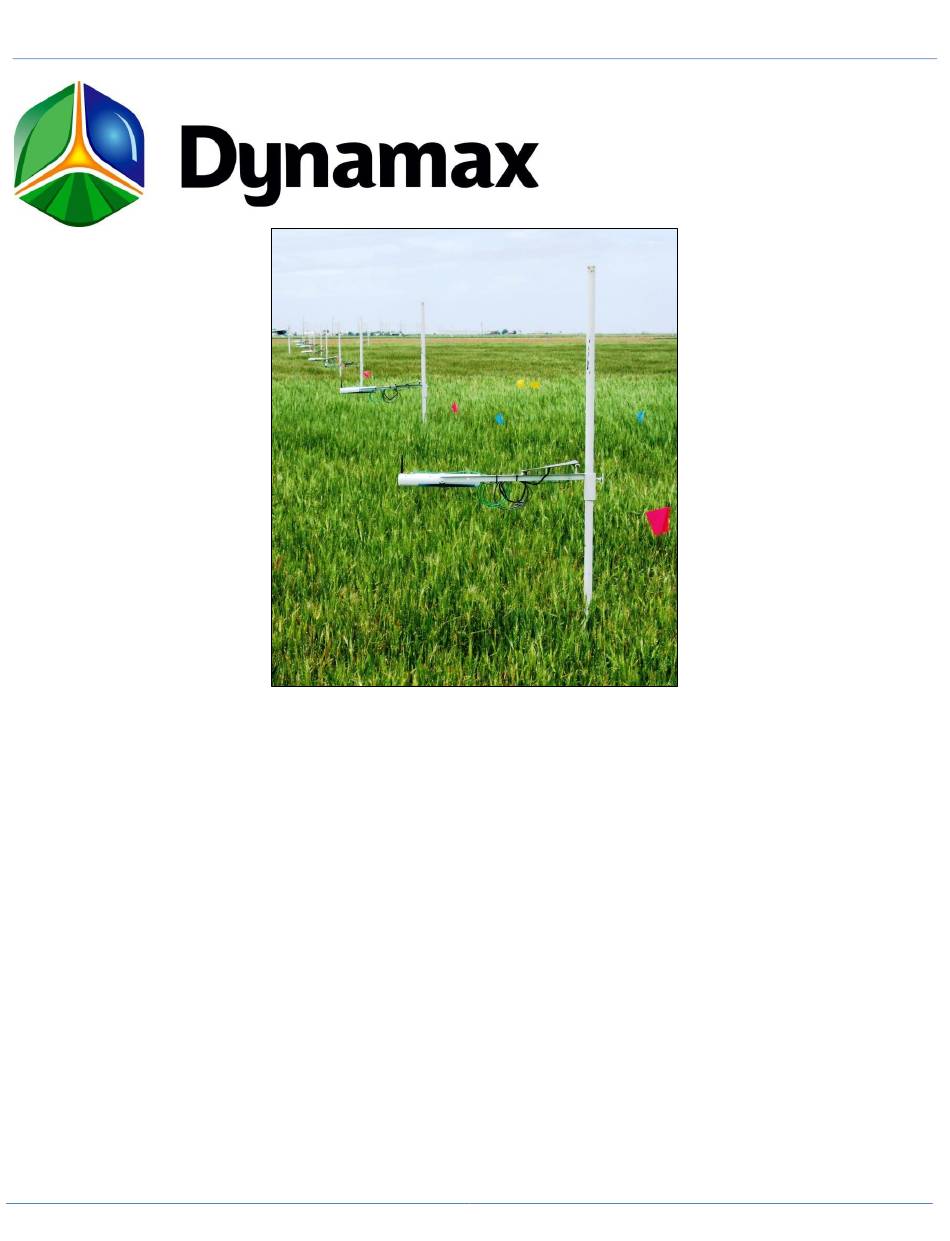

SapIP-IRT
SapIP-IRT
Instruction Manual
This manual provides Dynamax customers with a detailed collection of instructions on
How to set-up, collect data and make full application of the SapIP-IRT sensor.
Created: 12/14/2017
Version 8.4
8.4 – Changes from 8.3:
Added quick start guide 1.3, pg 15.
Drip loop on power wire Sec 4, pg 22.
Changed wiring for SDI-12, better cable and color code Sec 4.3, pg 24.
Dynamax, Inc

Advertisement

loading
Need help?

Need help?

Do you have a question about the SapIP-IRT and is the answer not in the manual?

Questions and answers

Summary of Contents for Dynamax SapIP-IRT

  • Page 1 SapIP-IRT SapIP-IRT Instruction Manual This manual provides Dynamax customers with a detailed collection of instructions on How to set-up, collect data and make full application of the SapIP-IRT sensor. Created: 12/14/2017 Version 8.4 8.4 – Changes from 8.3: Added quick start guide 1.3, pg 15.

  • Page 2: Table Of Contents

    SapIP – IRT Instruction Manual 1/23/2017 Table of Contents Topic Introduction General Specifications III. Assembly and Mounting Procedures Sequential and Functional Descriptions Updating Logging Interval Using XCTU FAQs – Frequently Asked Questions VII. Troubleshooting VIII. Appendix A: Data Output Packets Page 1 Dynamax, Inc.

  • Page 3: Introduction

    1/23/2017 Introduction The new SapIP-IRT wireless infrared temperature system is the latest development in infrared leaf temperature sensing technology for applications in irrigation scheduling and plant stress detection. As a temperature sensor, the module has many other applications and can be considered a general purpose temperature sensor.
  • Page 4 Up to 40 SapIP-IRT nodes can be connected wirelessly with a single GSM modem and the nodes can be “daisy-chained” up to four levels deep, which can allow data to be transmitted from distances over a mile away.
  • Page 5 SapIP – IRT Instruction Manual 1/23/2017 Figure 1: IRT temperature monitor over a large field reporting to a network of Zigbee Routers Figure 2: IRT on a Pivot Arm, Reporting to a Central Controller Page 4 Dynamax, Inc.
  • Page 6 SapIP – IRT Instruction Manual 1/23/2017 Page 5 Dynamax, Inc.
  • Page 7 SapIP – IRT Instruction Manual 1/23/2017 Page 6 Dynamax, Inc.

  • Page 8: General Specifications

    2. Data 2.1 Purpose The purpose of the SapIP-IRT’s data collection is to provide the user with real time data measurements. Typically the sensor will take 2 seconds to read the temp, and then the results are either averaged or saved according to the collection steps.
  • Page 9 1, 5, 10, 15, 30 or 60 minute intervals. The averaging accumulator is then reset. Settings are defined upon order from Dynamax. These settings are normally set in the factory, but are changeable in the field using the IRT watcher program.
  • Page 10 The Routers collect data from End nodes and transmit to the Coordinators assigned to a network. 3.3 Digimesh Range (SapIP-IRT-DM Network) 900 MHz Range (To be announced in 2016): 6500 feet (2 kilometers). o This new Node will have the advanced Digimesh network built –in and extends the range to 4-5x of the Zigbee.
  • Page 11 Part no is SPIP-IRTANT24. 4.1.4 Range over 500 meters: Dynamax supplies directional antennas, which can extend range 3- 4.1.5 All Ranges are in clear air - line of sight (LOS). With vegetation, the signal should be 1-2 meters above the canopy (3-6 ft).
  • Page 12 8. Enclosure 8.1 Specifications Completely sealed off field enclosure. Sealed to IP67, waterproof, rain proof, and weather tightened. Mounting options include a low-cost 2” EPS conduit hanger Optional gimbal mounted into a threaded socket (1/4” camera). Page 11 Dynamax, Inc.

  • Page 13: Assembly And Mounting Procedures

    The Dynamax Mounting Kit and the Adjustable Mounting Kit are the overall preferred method of installing each SapIP-IRT unit. Each set of equipment and the procedures for its installation are described within its associated sub-section(s) below. For lower canopy crop such as cotton or wheat, a fixed height (3 ft) above ground are recommended.
  • Page 14 Installation The next section illustrates the procedures Dynamax recommends when installing the adjustable mounting kit and how to correctly fasten the SapIP-IRT to the unit. 1.2.2 Assembling the Mounting Kit The first objective is to correctly attach the 4 ft. vertical pipe to the mounting plate. To begin,...
  • Page 15 1.2.3 Mounting the SapIP-IRT The first objective towards correctly fastening the SapIP-IRT to the adjustable mounting kit is to locate a place on the pipe where one wishes to mount the IRT. If not done so already, one will need to drill a hole through the pipe center using a 5/16”...
  • Page 16 If you are using a Coordinator inside the SALH, make sure that the device is on, and has been reset. Both the coordinator and the SALH have coordinator chips which are programmed by Dynamax to a specific Channel and Specific list of PAN ID, and all the IRT have been programmed to respond to the coordinator address.
  • Page 17 2. Hurricane Pole Attached to Fence Post The second method of successfully installing a SapIP-IRT unit in the field is by mounting the sensor on a hurricane pole that is vertical or attached to a fence post. Each set of equipment and the procedure(s) for its installation are described within its associated sub-section below.
  • Page 18 Since the IRT comes with the necessary materials to mount it on a medium these bolts require that it be mounted on a vertical pole a minimum of 1” in diameter (25 mm) (Dynamax suggests a stainless steel 1 – 1/4” hurricane fence top rail pipe as shown in the attached drawings).
  • Page 19 Lastly, the assembly and mounting procedures can begin for the high gain antenna and the IRT. 2.2.1 Mounting the SapIP-IRT The first objective towards correctly fastening the SapIP-IRT to the vertical pole is to locate a place on the pipe where one wishes to mount the IRT.
  • Page 20 #1. The customer will need to use a crescent wrench at the bottom, and pliers to screw the top together so the pieces are tight enough, and the antenna seal is secure from water. Page 19 Dynamax, Inc.
  • Page 21 1/23/2017 3. Chicken Wire Fence Post The alternative method of installing the SapIP-IRT is by mounting the sensor aboard a chicken wire fence post. This section will briefly describe the techniques required to correctly mount the IRT using this method. Each set of equipment and the procedure for its installation are described within its associated section below.
  • Page 22 SapIP – IRT Instruction Manual 1/23/2017 3.2.1 Mounting the SapIP-IRT Slide 5/16” washer onto the 5/16” hex-bolt from the set of IRT materials and place it through 2” EPS conduit hanger. Then insert through the chicken wire fence post horizontally.
  • Page 23 Begin by attaching the charging cables ( note: each has a male connection on the SapIP-IRT): First attach the (-) side of the solar panel to the black lead of the SapIP-IRT solar input (-). Then attach the (+) side of the solar panel to the red lead of the SapIP-IRT input (+).
  • Page 24 When transmitting the radio LED will blink on for 1/2 second. o The lower side LED is the IRT processor and will blink every 10 seconds while taking readings. o The lower LED will also blink with signals to the user while transmitting. Page 23 Dynamax, Inc.
  • Page 25 For the analog only version, use the same instructions above except to add wiring from the sensor to the logger. Please see the wiring diagram below. Wiring length is maximum 75 ft , AWG 22 minimum dia.: SapIP-IRT Color Datalogger...

  • Page 26: Sequential And Functional Descriptions

    (Note: 6 x 10 seconds = 1 minute.). If the EEPROM interval is set to zero, only one sample is taken. 3. Timing and Sleep Considerations Sampling takes 2 seconds. Page 25 Dynamax, Inc.
  • Page 27 Note: Delay = serial No. Least Significant Byte x 10 ms. From to 0 to 150 ms. Next, the radio is then woken up from sleep mode and is followed by packet transmission. Ack/nacks are then interpreted and is data re-transmitted if needed. Radio is then put back to sleep. Page 26 Dynamax, Inc.
  • Page 28 The unit either does radio transmit and ADC, or just one output. (Whichever combination is set by the two EEPROM variables: DAC_OUTPUT and RADIO_OUTPUT). 7. Repeat sequence Code jumps back to “Read Temperature” above. After the data is taken, formatted, and transmitted. Page 27 Dynamax, Inc.
  • Page 29 Acknowledge a<CR><LF> Active Send allccccccccmmmmmmvvvxxx...xx<CR><LF> Identification Change aAb! b<CR><LF> Address Address a<CR><LF> Query Start atttn<CR><LF> Measurement Ex: 2M! Start aMC! atttn<CR><LF> Measurement Example: 2MC! with CRC Send Data aD0! a<values><CR><LF> or a<values><CRC><CR><LF> Example: 0D0! Response: 0+39321+12.1+024.40+024.00 Page 28 Dynamax, Inc.
  • Page 30 X Read zz is requested data. EEPROM none, low power isn’t supported CPU must Low Power marking for run continuously since break isn’t an interrupt. 100msec or invalid address aMx!, NOT SUPPORTED! aC,aCC, aCx,aCCx, aRx,aRCx Page 29 Dynamax, Inc.
  • Page 31 8.1 Send Identification Command (aI!) Response is “213DYNAMAX SP IRT100 36”. Thus will be, Address 2, then compatibility 13, company Dynamax, then sensor model SP IRT, then version “100” , then serial number “ 36”. See SDI-12_Specification_1.3_January_3_2012 section 4.4.2. 8.2 Start Measurement Command (aM!) Table 9 –...
  • Page 32 T 13:46:02.04 0D0! R 13:46:02.34 0+39321+12.+024.66+024.00 T 13:46:30.03 0M! R 13:46:30.13 00034 R 13:46:32.03 0 T 13:46:32.04 0D0! R 13:46:32.34 0+39321+1.2+024.64+023.98 T 13:47:00.03 0M! R 13:47:00.13 00034 R 13:47:02.03 0 T 13:47:02.04 0D0! R 13:47:02.34 0+39321+1.2+024.46+024.02 Page 31 Dynamax, Inc.
  • Page 33 FFFF is converted to decimal. So the maximum for that would be FFFF = 65535. o When the logger asks for the information packet, then the serial number is given as hexadecimal ASCII. Page 32 Dynamax, Inc.
  • Page 34 EEPROM_SDI_MODE //bool ff undefined, 00 no SDI mode, ordinary radio or telemetry analog, 01 = SDI serial mode #define EEPROM_SDI_ADDRESS //SINGLE BYTE ASCII ADDRESS #define EEPROM_THERMISTOR // if 1, thermistor is in battery 00 no battery Page 33 Dynamax, Inc.
  • Page 35 The purpose of this technical section is to step through the procedure to change an EEPROM Setting. The settings are done at the Dynamax Factory to a default of one minute transmission period, unless specified by the customer at the time of order.
  • Page 36 SapIP – IRT Instruction Manual 1/23/2017 Step Three: Discover IRTs within the network using “Discover radio nodes” icon. Once desired IRTs are discovered, click “Add Selected Device’ button to list the nodes under coordinator. Record MAC addresses of all nodes. Page 35 Dynamax, Inc.
  • Page 37 Step Four: Navigate to “Consoles Working Mode” (top right) tab, then click to close “Serial Connection” (top middle). Step Five: Click “Add New Frame” icon to bring up API frame generator. Then click blue “Create Frame” area in the pop-up window. Page 36 Dynamax, Inc.
  • Page 38  64-Bit destination address—MAC address of a particular node  Broadcast radius—15  RF data (in HEX) - 50 02 00 08 00 05 (Last HEX value is the new interval in HEX format)  Defin 50 .. o Click “OK” to finish. Page 37 Dynamax, Inc.
  • Page 39 SapIP – IRT Instruction Manual 1/23/2017 Step Seven: Create a Frame Name and then click “Add frame” button. Page 38 Dynamax, Inc.
  • Page 40 “Frames log” window shows “Transmit Request” and “Transmit Status”. Then wait for new data. o Note: from the screen capture on the left, it will take some times for IRT node to adjust to the new interval Step Nine: Repeat Step 4 through 8 for additional IRT nodes. Page 39 Dynamax, Inc.

  • Page 41: Faqs - Frequently Asked Questions

    If you get water into the 4 inch antenna connecter, we recommend adding some silicone grease to seal it better from water. Dynamax supplies water-tight antennas but they so cost a bit more and are completely water proof. Page 40...

  • Page 42: Troubleshooting

    The charger will then be set according to the last mode it was programmed to. This could be off, fast mode, or trickle mode. o Note: If it’s off, the client will need to contact Dynamax. Next, the LED will flash for 10 milliseconds after every 10 seconds. The purpose of this is to conserve what remains of the battery’s voltage (in an extremely low battery drain state) until the...
  • Page 43 Occasionally a status packet comes in, for example when the network rejoins a status packet arrives with that information. That packet is ignored as well as all others that are not recognized. No action is taken. Page 42 Dynamax, Inc.
  • Page 44 ÿþ8, 8, 5.1, +15.83, +15.74 ÿþ8, 7, 5.0, +16.23, +16.89 ÿþ9, 8, 5.2, +15.88, +15.79 ÿþ9, 7, 5.0, +16.37, +17.02 ÿþ0, 8, 5.2, +15.75, +15.85 ÿþ0, 7, 5.0, +16.51, +17.16 ÿþ1, 8, 5.2, +15.80, +15.90 ÿþ1, 7, 5.0, +16.57, +17.29 Page 43 Dynamax, Inc.
  • Page 45 16-bit Sensor ID hex from EEPROM_SENSOR_ID range 0 to 0xFFFF Battery voltage range 0-20.9 volts, Over range 99.99 Temperature Object range -40.00 to +120.00, Over range = +200.00 Temperature Ambient range -40.00 to +120.00, Overrange = +200.00 Page 44 Dynamax, Inc.
  • Page 46 Code = 5 for a watchdog timer reset (not enabled so this should not happen). o Code = 10 for a brownout reset. o Code = 20 for an external reset on the hardware input pin.  Data is formatted and ready to send: Page 45 Dynamax, Inc.
  • Page 47 Associate LED (pg. 80) o Shows diagrams for success and failure codes.  Join Notification (pg. 130) o LED is blinked rapidly on all devices that receive a JN command.  Blink Rate Command (pg. 133) Page 46 Dynamax, Inc.
  • Page 48 At least the blink tells us that the break was detected. The GP2 logger retries 9 times when no correct response is received. So, the LED will blink 9 times when a persistent error is repeated Page 47 Dynamax, Inc.
