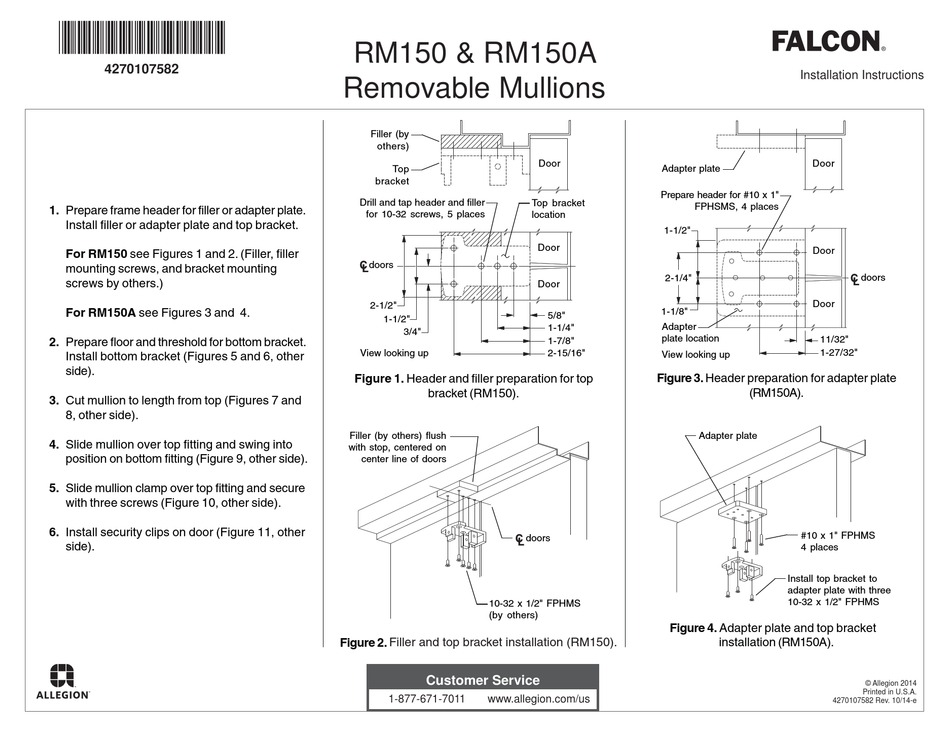

Allegion Falcon RM150A Installation Instructions


4270107582
1. Prepare frame header for filler or adapter plate.
Install filler or adapter plate and top bracket.
For RM150 see Figures 1 and 2. (Filler, filler
mounting screws, and bracket mounting
screws by others.)
For RM150A see Figures 3 and 4.
2. Prepare floor and threshold for bottom bracket.
Install bottom bracket (Figures 5 and 6, other
side).
3. Cut mullion to length from top (Figures 7 and
8, other side).
4. Slide mullion over top fitting and swing into
position on bottom fitting (Figure 9, other side).
5. Slide mullion clamp over top fitting and secure
with three screws (Figure 10, other side).
6. Install security clips on door (Figure 11, other
side).
RM150 & RM150A
Removable Mullions
Filler (by
others)
Top
bracket
Drill and tap header and filler
for 10-32 screws, 5 places
doors
2-1/2"
1-1/2"
3/4"
View looking up
Figure 1. Header and filler preparation for top
bracket (RM150).
Filler (by others) flush
with stop, centered on
center line of doors
10-32 x 1/2" FPHMS
(by others)
Figure 2. Filler and top bracket installation (RM150).
Customer Service
1-877-671-7011 www.allegion.com/us
Door
Adapter plate
Prepare header for #10 x 1"
Top bracket
FPHSMS, 4 places
location
1-1/2"
Door
2-1/4"
Door
1-1/8"
5/8"
Adapter
1-1/4"
plate location
1-7/8"
2-15/16"
View looking up
Figure 3. Header preparation for adapter plate
Adapter plate
doors
Figure 4. Adapter plate and top bracket
Installation Instructions
Door
Door
doors
Door
11/32"
1-27/32"
(RM150A).
#10 x 1" FPHMS
4 places
Install top bracket to
adapter plate with three
10-32 x 1/2" FPHMS
installation (RM150A).
© Allegion 2014
Printed in U.S.A.
4270107582 Rev. 10/14-e
