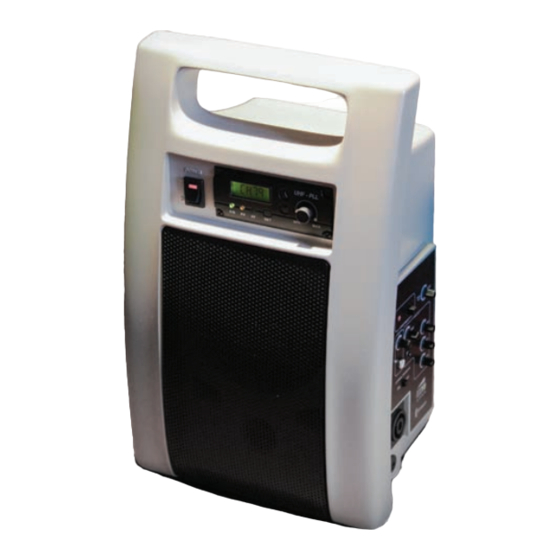

Simeon Audita User Manual

Portable soundfield system
Hide thumbs Also See for Audita:

Advertisement

Table of Contents

Simeon Audita
Portable
Soundfield System
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Audita and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Simeon Audita

Summary of Contents for Simeon Audita

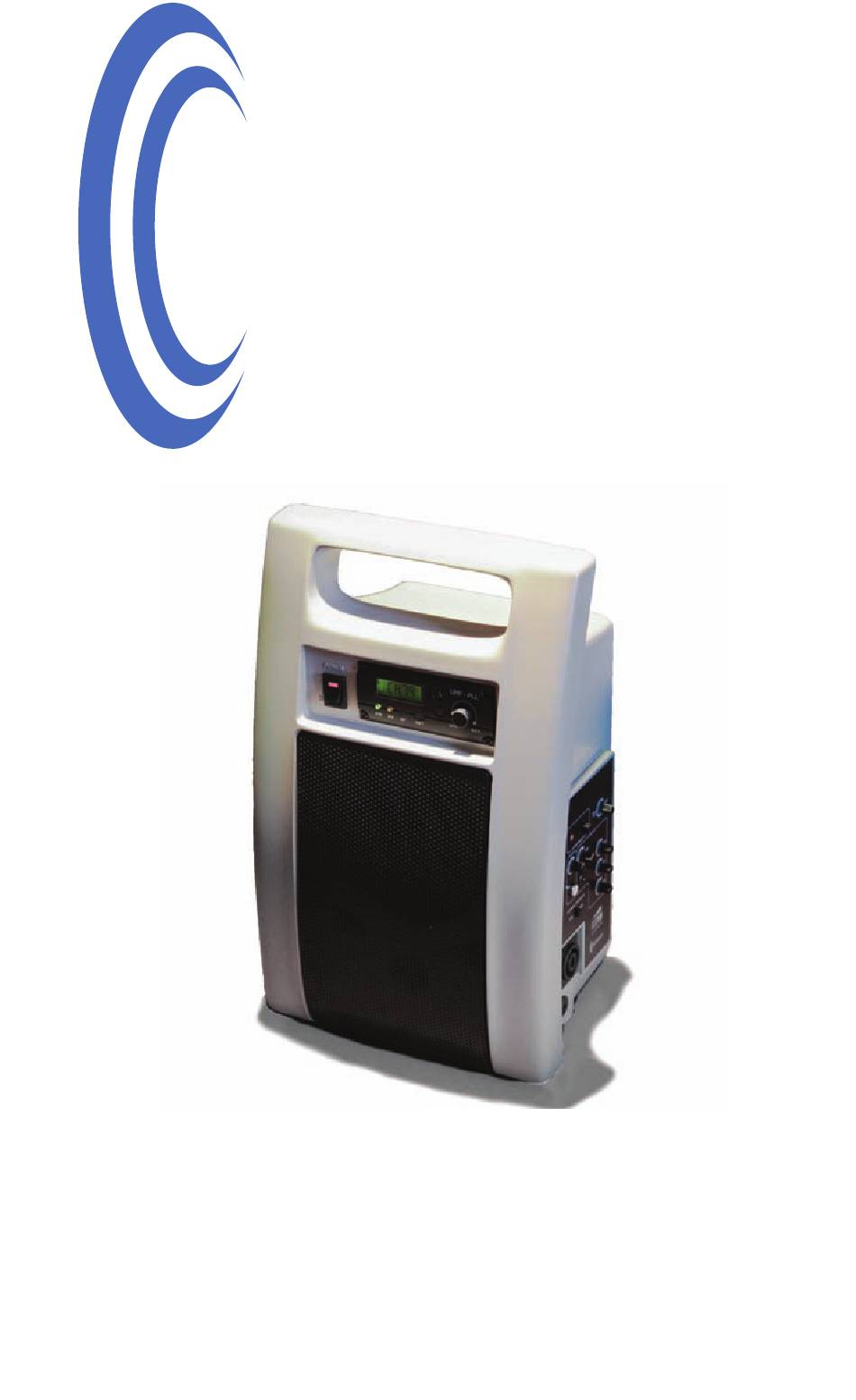

  • Page 1 Simeon Audita Portable Soundfield System User Manual...
  • Page 2 Notice: The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user’s authority to operate the device.
  • Page 3 FM or digital transmitter formats. The system can be set up in any classroom or meeting room and is easy to transport. It also interfaces simply with a Simeon OmniPanel setup, giving the portable system the power of a permanent installation. The system includes: •...
  • Page 4 Simeon Audita Portable Soundfield Receiver Figures 1 & 2 1. Power ON/OFF switch with power indicator 2. Display Screen 3. Volume Control 4. Set Button 5. Cursors 6. Power adapter plug (20V) 7. Speaker Output 8. Speaker Switch 9. Auxiliary RCA Input with gain control 10.
  • Page 5 A continuous green light indicates when charging is complete. The transmitter and Receiver channels on both the Audita Digital and Audita FM Systems will have been assigned before shipping. It will only be necessary to change the channels if the preassigned channels conflict with other FM or Digital systems in your facility.
  • Page 6 Simeon Omnipanel 900 Flat Panel Loudspeaker Figures 3 & 4 17. Speaker Panel 18. Exciters (Piezoelectric Drive Elements) 19. Receiver Input 20. Fastening Knob 21. Mount...
  • Page 7 6T transmitters, make sure the front of the receiver is facing towards the centre of the charging cradle. The Simeon 5T, 6T, 5M and 6M will turn off automatically when they are placed in the charging cradle. A steady red ‘ON’ charging indicator will light during charging;...
  • Page 8 Simeon 5M and 6M Hand-held Transmitter/Microphones Figures 5, 6 & 7 22. Microphone Capsule 23. Power ON/OFF Button 24. Display Screen 25. Control Wheel 26. Talk/Mute Button 23 24 25 27. Battery Housing 28. Charging Dock Connector Cursor Cursor Simeon 602 Transmitter Charging Cradle Figure 8 29.

  • Page 9: Operation

    Simeon 5M and 6M Hand-held Transmitter/Microphones To turn the Simeon 5M and 6M on, hold the power button on the front of the transmitter for two (2) seconds [38], until the display screen reads “On”. This screen shows both the channel selection and the battery status.
  • Page 10 Simeon 5T and 6T Pendant Transmitters Figures 12 & 13 32. Power ON/OFF and Talk/Mute Button 33. Set Button 34. Cursors 35. Display Screen 36. Microphone Capsule 37. Auxiliary Input Jack “Aux In” 38. Alternate Charging Plug 39. Charging Dock Connectors 40.
  • Page 11 Simeon 5T and 6T Pendant Transmitters To turn the Simeon 5T or 6T on, hold the power button on the front of the transmitter [21], until the display screen reads “On”. This screen shows both the channel selection and the battery status. Adjust the volume control corresponding to the Digital position (A or B) or FM channel (1-96) displayed on your transmitter.

  • Page 12: Assigning Channels

    Assigning Channels FM Transmitters 5T and 5M, and the Simeon FM Dual-Receiver Module, all part of the Simeon Audita FM System, feature a simple-to-use menu that allows selection between 96 UHF channels. To assign a new channel, press the SET button until the displayed channel flashes.

  • Page 13: External Connections

    The equalizers allow adjustment at 100, 1,000 and 10,000 Hz. At the bottom of the side panel on the Simeon Audita there is a Speakon cable jack [7]. This can be used to connect the receiver to a Simeon Omnipanel when larger amplification solutions are needed.

  • Page 14: Battery Care And Charging

    Avoid excessive amplification – speech should be comfortably audible throughout your listening area. On the top right of the side panel of the Simeon Audita there is a screw-adjust bass and treble control [12]. This will change the tone quality of the Simeon Audita’s built in speaker.

  • Page 15: Useful Tips

    AC outlet via the charging power adapter. • Serial numbers are located on the back of the Simeon Audita, on the back of the Omnipanel, on the bottom of the 602, on the back of the 5T and 6T, and...

  • Page 16: Microphone Care

    The Simeon 623 boom (headset) microphone has a unidirectional pick-up pattern. The tip of the mic capsule must be pointed towards the corner of the mouth for proper performance.

  • Page 17: Troubleshooting

    MUTE. Verify that the Simeon Audita receiver battery is charged, or else plugged into an AC supply with the correct power adapter. Check or replace transmitter microphone. Check that the transmitter batteries are charged.
  • Page 18 System Technical Specifications Simeon Audita Overall System Specfications Output power 40W (RMS) Speaker types 5” Neodymium, 1” tweeter Audio control Gain, Tone control, 3-band on auxilary output Auxiliary input Single RCA connector. Input sensitivity 350mV Auxiliary output 3.5mm mini plug. Output level 1V...
  • Page 19 Receiver Module Technical Specifications With RD5 FM Dual Receiver Module UHF Frequency range 640~664MHz (Canada & USA); 863~865MHz (Europe) Number of channels Canada & USA frequencies: 96; European frequencies: 16 Squelch Adjust OFF - 100 ± 3dBm Total harmonic distrotion <...
  • Page 20 33 x 52 x 88mm (1.3 x 2 x 3.5 inches) Weight 77g (2.7 Oz) Including battery Certifications Industry Canada, FCC, CE Simeon 5M FM Wireless Microphone Microphone capsule Condenser UHF Frequency range 640~664MHz (Canada & USA); 863~865MHz (Europe) Number of channels Canada &...
  • Page 21 Dimensions 33 x 52 x 88mm (1.3 x 2 x 3.5 inches) Weight 77g (2.7 Oz) Including battery Certifications Industry Canada, FCC, CE Simeon 6M Digital Wireless Microphone Microphone capsule Condenser Frequency range 2.4 ~ 2.5GHz Number of channels 16 Channel pairs...
  • Page 22 Supportive Hearing Systems, Inc. 283 MacPherson Ave., Toronto, ON, Canada M4V 1A4 T: 416-236-4898 | F: 416-483-6210 T: 1-800-732-8804 | F: 1-800-597-3143 e-mail: info@SimeonCanada.com www.SimeonCanada.com...
