Trainor Sports 1232014US Owner's Manual

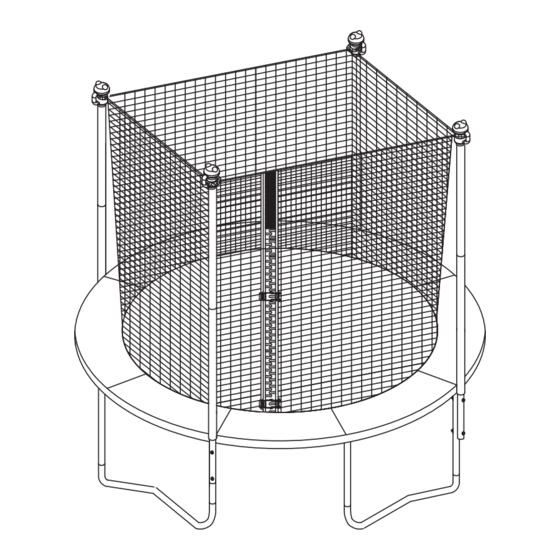

14 foot round trampoline and enclosure
Hide thumbs
Table of Contents

Advertisement

Quick Links

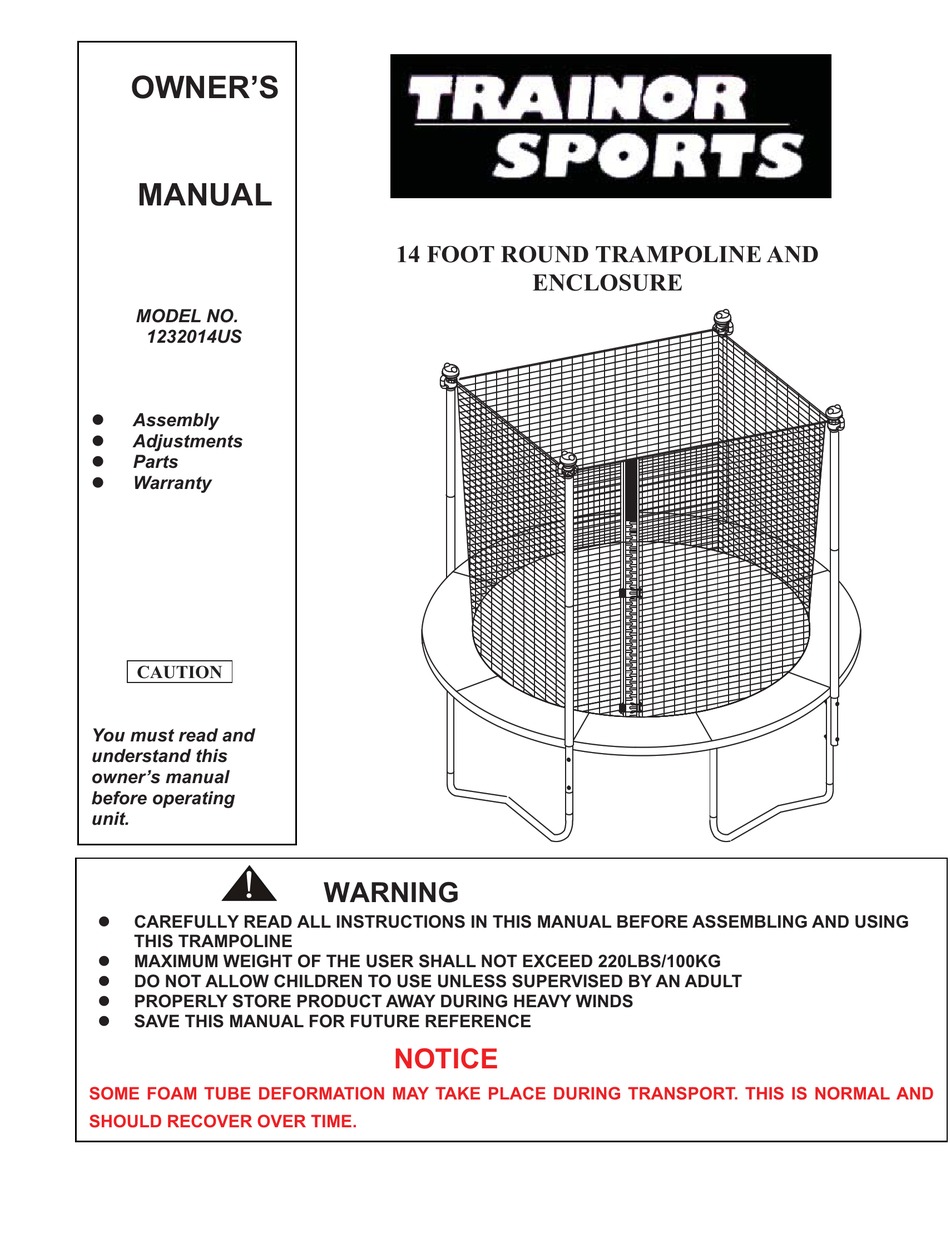

OWNER'S
MANUAL
MODEL NO.
1232014US
z
Assembly
z
Adjustments
z
Parts
z
Warranty
CAUTION
You must read and
understand this
owner's manual
before operating
unit.
z
CAREFULLY READ ALL INSTRUCTIONS IN THIS MANUAL BEFORE ASSEMBLING AND USING
THIS TRAMPOLINE
z
MAXIMUM WEIGHT OF THE USER SHALL NOT EXCEED 220LBS/100KG
z
DO NOT ALLOW CHILDREN TO USE UNLESS SUPERVISED BY AN ADULT
z
PROPERLY STORE PRODUCT AWAY DURING HEAVY WINDS
z
SAVE THIS MANUAL FOR FUTURE REFERENCE
SOME FOAM TUBE DEFORMATION MAY TAKE PLACE DURING TRANSPORT. THIS IS NORMAL AND
SHOULD RECOVER OVER TIME.
14 FOOT ROUND TRAMPOLINE AND
WARNING
NOTICE
ENCLOSURE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1232014US and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Trainor Sports 1232014US

  • Page 1 OWNER’S MANUAL 14 FOOT ROUND TRAMPOLINE AND ENCLOSURE MODEL NO. 1232014US Assembly Adjustments Parts Warranty CAUTION You must read and understand this owner’s manual before operating unit. WARNING CAREFULLY READ ALL INSTRUCTIONS IN THIS MANUAL BEFORE ASSEMBLING AND USING THIS TRAMPOLINE...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Table of Contents…….………………………………………………………………….1 Introduction and Important Safety Instructions and Warnings……………………2-6 Part List for Trampoline…………………………………………………………………8 Part List for Enclosure…..………………………………………………………………9 Assembly and Installation Instructions: Trampoline Frame Assembly…………………………………………………10-12 Trampoline Mat Assembly ……………………………………………………13-18 Frame Pad Assembly………………………………………………………… 19-21 Disassembly of Trampoline….……………………………………………………21 Trampoline Enclosure Assembly……...………………………………………22-27 Disassembly of Enclosure…………………………………………………………27 Care and Maintenance Instructions ………………………………………………28-29 Proper Use Instructions…………………………………………………………………30...

  • Page 3: Introduction And Important Safety Instructions And Warnings

    INTRODUCTION Thank you for purchasing a Trainor Sports product! This trampoline was designed and manufactured with quality materials and craftsmanship, providing fun and exercise in the enjoyment of your own backyard. It is very important that the owners and users of this trampoline have adequate knowledge of techniques and rules for safe use.
  • Page 4 DO NOT allow any pets onto the mat in order to prevent the trampoline mat from being damaged. DO NOT allow any pets or children to go under the jump mat. DO NOT use unauthorized Trainor Sports parts. This may damage the integrity of the product and will Customer Service 1-888-707-1880...
  • Page 5 void the manufacturer’s warranty. ALWAYS ensure adequate overhead clearance. Recommended overhead clearance is 26.25ft (8 meters) from ground level. Provide clearance for wires, tree limbs and other possible hazards. ALWAYS place the trampoline on a level surface before assembly and use. This trampoline is for OUTDOOR USE ONLY.
  • Page 6 IMPORTANT WARNING ABOUT ENCLOSURE NETTING AND PAD TRAMPOLINE NET & PAD – MAINTENANCE REQUIREMENTS IMPORTANT ! READ IT! Failure to follow these instructions to ensure proper operational condition of your trampoline may lead to serious injury or death. Do not allow more than one person on the trampoline at a time.
  • Page 7 Trying to exit in this way poses a risk of strangulation from being caught between the trampoline frame and the netting walls. Do not attach anything to the netting that is not a Trainor Sports approved accessory or part of the trampoline enclosure.
  • Page 8 ASSEMBLY AND INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN: Review all steps before assembly and read all precautions before using the trampoline. At least two adults are required to assemble the trampoline. Protective gloves should be used during assembly to avoid pinching by the springs and goggles should be worn to avoid injuries to the eyes. To assemble this product, you will only need the special spring loading tool and wrenches provided with this product.

  • Page 9: Part List For Trampoline

    PART LIST FOR TRAMPOLINE Part Diagram Description Q'TY Number Trampoline Mat, stitched with HJ201401 Triangle-Rings HJ201402 Frame Pad HJ201403 Top Rail with Leg Sockets HJ201404 Top Rail HJ201405 Leg Base HJ201406A Vertical Leg Extension (one hole) HJ201406B Vertical Leg Extension (two holes) Galvanized Springs –...

  • Page 10: Part List For Enclosure

    PART LIST FOR ENCLOSURE Part Diagram Description Q'TY Number Upper Frame Tube with Foam Lower Frame Tube with Foam Tube Cap Gap Spacer Screw Cap Nut Large Spring Lock Washer Arc Washer Enclosure Safety Instruction Placard Wrench Allen Wrench Cord Enclosure Netting REMEMBER TO USE GLOVES DURING ASSEMBLY TO AVOID PINCHING.

  • Page 11: Trampoline Frame Assembly

    TRAMPOLINE FRAME ASSEMBLY STEP 1 - Frame Layout There are a total of 20 pieces of tubing parts that are needed to assemble the frame. All parts with the same part number are interchangeable and have no “right” or “left” orientation. To connect the parts, simply slide a section (male) of tubing that is smaller on one end into the adjacent section (female) that has a larger opening.
  • Page 12 STEP 2 – Support Assembly Slide one Vertical Leg Extension (one hole) (# 6A) and one Vertical Leg Extension (two holes) (# 6B) into the Leg Base (# 5) as shown in FIGURE 2. Repeat this step for all the Leg Bases. # 6B # 6A FIGURE 2...
  • Page 13 B. Install the Top Rail (# 4) into the gaps between the Vertical Leg Extensions by inserting them into the slots as shown in FIGURE 3B. # 6B # 6B # 6A # 6A FIGURE 3B Important Notice Make sure the holes on the Top Rail with Leg Sockets and the indent hole on the Vertical Leg Extension(# 6A-4pcs, # 6B-4pcs) are aligned and are facing outward.

  • Page 14: Trampoline Mat Assembly

    TRAMPOLINE MAT ASSEMBLY BEFORE YOU BEGIN: Review all steps before assembly and read all precautions before using the trampoline. At least two adults are required to assemble the trampoline. Protective gloves should be used during assembly to avoid pinching by the springs and goggles should be worn to avoid injuries to the eyes. To assemble this product, all you need is our special spring loading tool and wrenches provided with this product.
  • Page 15 Select an arbitrary point on the Frame (call it Point “ZERO”). Hook one end of the Spring (# 7) into the triangle-ring on the Mat (# 1). Holding the Spring Loading Tool underhand, pull the other end of the Spring towards point “ZERO” and drop the hook into the hole on the Frame as shown in FIGURE 6. Tap on the Spring to make sure it is securely latched into the hole.
  • Page 16 C. Next, starting from point Zero, count to hole 44 on the opposite end of the mat and attach a Spring in the same manner. For even distribution of tension and ease of assembly, springs should always be installed on opposite sides of the mat/frame in an alternating manner, i.e. Zero, then 44, followed by 22 and 66 as shown in FIGURE 7.
  • Page 17 D. Attach a spring at every 11 holes and corresponding Triangle-Rings. For even distribution of tension and ease of assembly, springs should be placed on opposite sides of the mat/frame…..i.e. 11then 55, 33 then 77, etc. In addition to the previously installed springs, you should have springs at 11, 33, 55 and 77 as shown in FIGURE 8.
  • Page 18 E. Attach a spring every 5 holes and corresponding Triangle-Ring. For even distribution of tension and ease of assembly, springs should be placed on opposite sides of the mat/frame…..i.e. 5 then 49, 82 then 38, etc. In addition to the previously installed, you should have springs at 5, 16, 27, 38, 49, 60, 71 and82 as shown in FIGURE 9.
  • Page 19 F. Then, attach the remaining 80 springs by using the same theory of counting equal holes as shown in FIGURE 10. FIGURE 10 STEP 5 – Trampoline Safety Placard Attachment Using the tie wrap, attach the Trampoline Safety Instruction Placard (# 8) to the trampoline as shown in FIGURE 11.

  • Page 20: Frame Pad Assembly

    FRAME PAD ASSEMBLY WARNING Never use the trampoline without the Frame Pad. Inspect the Frame Pad before each use to ensure all exposed metal parts are fully covered by the Frame Pad!! STEP 6 – Frame Pad Assembly A. Lay the Frame Pad (# 2) over the trampoline so that the springs and steel frame are fully covered. Please ensure that the Frame Pad covers all metal parts.
  • Page 21 B. Tie the remaining elastic straps around the trampoline frame as shown in FIGURE 13. Pull tightly so that the frame pad securely covers the frame. FRAME PAD (# 2) (IN LIFT-UP POSITION) ELASTIC STRAP FIGURE 13 Customer Service 1-888-707-1880 Dyaco Canada Inc.

  • Page 22: Disassembly Of Trampoline

    C. Finally, wrap the elastic straps which are located next to the Trampoline Mat around the triangle-rings and tie a knot as shown in FIGURE 14. Make sure the knot is tight and the frame pad is securely attached to the trampoline.

  • Page 23: Trampoline Enclosure Assembly

    TRAMPOLINE ENCLOSURE ASSEMBLY BEFORE YOU BEGIN: Review all steps before beginning assembly and read all precautions before using the trampoline. All the tools needed are included with this package. NOTICE: SOME FOAM TUBE DEFORMATION MAY TAKE PLACE DURING TRANSPORT. THIS IS NORMAL AND SHOULD NATURALLY RECOVER OVER TIME.
  • Page 24 B. Attach Tube Cap (# C) to Upper Frame Tube with Foam (# A) as shown in FIGURE 16. Repeat this step for all upper frame tubes. C. Attach Upper Frame Tube with Foam (# A) to Lower Upper Frame Tube with Foam (# B) as shown in FIGURE 16.
  • Page 25 D. Attach the snap in buckles on the top of the netting enclosure to the Tube Cap (# C) as shown in FIGURE 17. Attach the top snap in buckles for all other sets of tube frame. Please make sure the Tube Holder of Tube Cap is facing outward and keep the strap on the buckle loose.
  • Page 26 IMPORTANT NOTICE If the strap falls off the buckle in some cases, please follow the instruction below to re-assemble it. Please note that two sides of buckle different. should slide the strap through the slot from the SIDE A, otherwise it wouldn’t work properly.
  • Page 27 F. Pull the zipper of ENCLOSURE NETTING at the door which should be located within one leg base of the trampoline as shown in FIGURE 18. Then snap in buckles closely. Now, adjust the length of the strap. FIGURE 18 Customer Service 1-888-707-1880 Dyaco Canada Inc.

  • Page 28: Disassembly Of Enclosure

    G. Now, use the included plastic tie, attach Enclosure Safety Placard (# I) to the netting near the door as shown in FIGURE 19. FIGURE 19 DISASSEMBLY OF ENCLOSURE To disassemble the enclosure netting, simply follow the above instructions in reverse order. Customer Service 1-888-707-1880 Dyaco Canada Inc.

  • Page 29: Care And Maintenance Instructions

    CARE AND MAINTAINANCE INSTRUCTIONS REGULAR INSPECTION OF THE TRAMPOLINE: Inspect the trampoline before each use and replace any worn, defective or missing parts. The following conditions could represent potential hazards: Missing, improperly positioned or insecurely attached frame padding Punctures, frays, tears or holes in the trampoline mat or frame padding Deterioration in the stitching or fabric of the mat or frame padding Ruptured or loose springs Bent or broken frame...
  • Page 30 MOVING THE TRAMPOLINE: Two or three people will be needed to move trampoline. Before lifting the trampoline, all connector points must be wrapped and secured with weather resistant tape, e.g. duct tape. This will keep the frame intact during the move and prevent the connector points from dislocating and separating.

  • Page 31: Proper Use Instructions

    PROPER USE INSTRUCTIONS MAXIMUM USER WEIGHT: Maximum weight of user should not exceed 220lbs (100kg). Trampolines over 20 inches (51cm) tall are not recommended for use by children under 6 years of age. MOUNTING AND DISMOUNTING: Be very careful when getting on and off the trampoline. DO NOT mount the trampoline by grabbing the safety pad, stepping onto the springs or by jumping onto the mat of the trampoline from any object (i.e.

  • Page 32: Tips To Reduce The Risk Of Accidents

    TIPS TO REDUCE THE RISK OF ACCIDENTS IMPORTANT SAFETY INSTRUCTIONS FAILURE TO FOLLOW INSTRUCTIONS AND WARNINGS COULD RESULT IN SERIOUS INJURY OR DEATH. All jumpers need to be supervised, regardless of skill level or age. Jumper’s role in accident prevention The key here is to stay in control of your jumps.
  • Page 33 Lesson 3 A. Review and practice skills and techniques learned in previous lessons. B. Front Drop-To avoid mat burns and teach the front bounce position, all students should be requested to assume the prone position (face down on the ground) while the instructor checks for faulty positions that could cause injury.
  • Page 34 KNEE BOUNCE 1. Start with basic bounce and keep it low. 2. Land on knees keeping back straight, body erect and use your arms to maintain balance. 3. Bounce back to basic bounce position by swinging arms up. SEAT BOUNCE 1.

  • Page 35: Limited Warranty

    LIMITED WARRANTY Dyaco Canada Inc. warrants this unit, to the original purchaser, to be free from defects in material and workmanship for the period of time listed below. Warranty time begins at the time of purchase. Normal wear and user’s abuse are not covered in the warranty.
