Summary of Contents for StandCrafted THE STANDCRAFTED DESK

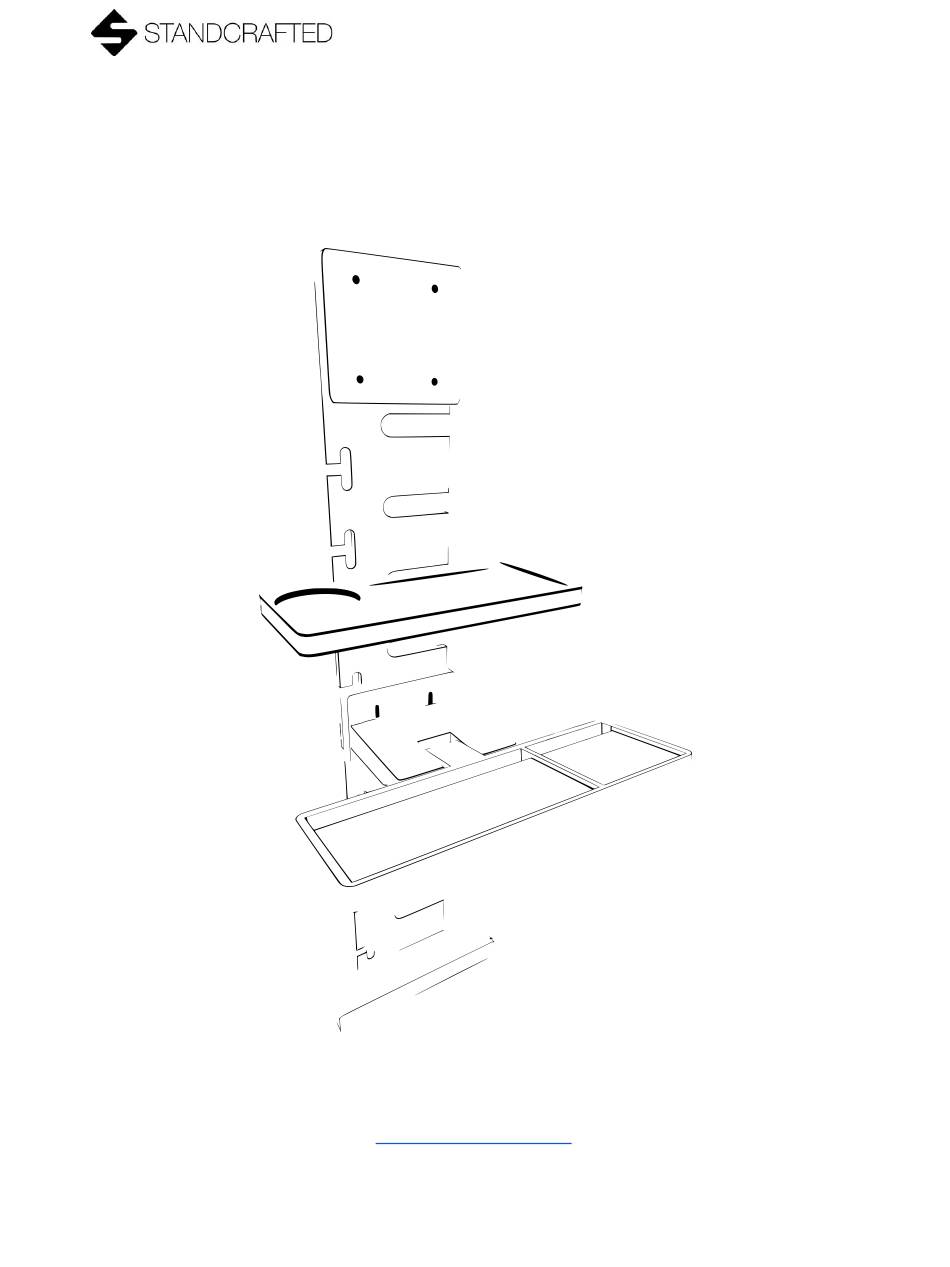

- Page 1 The Minimalist, Modular, Wall-Mounted Standing Desk The StandCrafted Installation Manual Last Update: 03/04/2016 www.standcrafted.com support@standcrafted.com ...
-
Page 2: Handling And Safety Instructions
The Minimalist, Modular, Wall-Mounted Standing Desk DISCLAIMERS Copyright © StandCrafted LLC. All rights reserved. T his document is solely intended for customers of StandCrafted. No part of this document may be retransmitted to individuals or organizations in any form or by any means, electronic, mechanical, photographic or otherwise, without the prior written permission of StandCrafted LLC. The material furnished in this document is believed to be accurate and reliable. StandCrafted reserves the right to make changes at any time and without notice. The content of these documents is continually reviewed and amended, where necessary. However, discrepancies cannot be excluded. No guarantee is made for the completeness of these documents. StandCrafted assumes no responsibility for the use of this material. You may refer to the StandCrafted website ( w ww.standcrafted.com ) for the most updated version. All company, brand products, and service names are trademarks or registered trademarks of respective holders. StandCrafted products are trademark protected and patent pending. StandCrafted reserves all patent and trademark rights of its products and will enforce unlawful duplication or sales of its proprietary inventions. The images contained in this document are for illustrative purposes only and may vary in scale and accuracy depending on product models. HANDLING AND SAFETY INSTRUCTIONS The use of StandCrafted desks are solely meant for bearing weight of computing devices and related computer ... - Page 3 The Minimalist, Modular, Wall-Mounted Standing Desk 1: Packaging Figure 1 and 2 show the arrangement of materials as packaged. Figure 1 shows the overall contents and Figure 2 shows the smaller box containing assembly components and laptop module. Figure 1: Box contents Figure 2: Small Parts Page 2 ...
-
Page 4: Parts List
The Minimalist, Modular, Wall-Mounted Standing Desk 2: Parts List Table 1 lists every component, its purpose, its image, and any noteworthy information. Table 1: Parts List Component Parts Image Notes Spine (46” x 7” x ¾”) To be installed vertically on the intended wall with 4 larger holes for bolts pointed outward. Cable conduit faces the wall on the left side. Module slides face the right side. 4 Drywall Anchors Included with drywall +1 spare mounting option Spine 4 Bolts 4 Washers ... - Page 5 The Minimalist, Modular, Wall-Mounted Standing Desk Module Preassembled from ● Table (15” x 7” x ¾”) manufacturer ● Rear slide Small Table Module Modules ● Vertical component (w/ rear slide) ● Horizontal component ● Keyboard module* (several variants) Rotational Assembly (1) 8” x 5/16” threaded bolt (2) 5/16” wing nuts Keyboard To be assembled Module Vertical Assembly (2) 1.5” bolts (2) washers (2) lock washers (2) nuts ...
- Page 6 The Minimalist, Modular, Wall-Mounted Standing Desk 3. Spine Installation Introduction The StandCrafted spine is designed to securely mount to any wall using 4 provided bolts, much like a home television. At the time of purchase, the buyer was presented with the option for hardware supporting drywall, wall studs, or masonry walls. StandCrafted provided the respective hardware for standard mounting options. Please see the packing list section for more details. If the wall is of an unusual construction, please seek the help of a professional installer to source mounting hardware (generally available at any hardware store). The spint mounting holes are ¼” diameter and are inset by approximately ⅜” to allow for bolts to be below flush level with the spine surface. The spine requires careful and sturdy mounting to ensure aesthetic placement on the wall, level installation, proper movement of modules, and ergonomically correct height for all users. If unsure about proper installation after review of this manual, StandCrafted recommends identifying a qualified professional to install the spine. Tools required Power drill (drywall & wall studs) Hammer drill (masonry) Phillips head bit for respective bolts ¼” hex bolt drill bit or wrench Construction level Fine point marking tool (pencil, pen, fine tip sharpie, etc.) ½” Drill bit (for drywall installation) ⅛” Drill bit (for wood stud installation) 5/16” Carbide drill bit (for masonry installation) ...
- Page 7 The Minimalist, Modular, Wall-Mounted Standing Desk Table 2: Spine Installation Step 1 Spine Location Step 2 Horizontal Positioning Step 3 Vertical Positioning Step 4 Marking Holes for Drilling Page 6 ...
- Page 8 The Minimalist, Modular, Wall-Mounted Standing Desk Step 5 Drilling Holes f or Drywall & Securing Spine to Wall Step 5 Drilling Holes f or Masonry & Securing Spine to Wall Page 7 ...
- Page 9 The Minimalist, Modular, Wall-Mounted Standing Desk 4. Monitor Module Assembly The monitor mount is designed to adhere to any VESAcompatible monitor or monitor attachment (e.g., Apple Cinema Display / iMac adapter). Monitors must have 4 rear mounting holes measuring 100mm x 100mm for successful mounting. All steps for assembly are described in the table below. Videos of the monitor assembly are also posted on YouTube. Please find our uptodate links on our website tandcrafted.com/support Step 1 Remove monitor stand (as Step 2 Position monitor for module assembly necessary) Place monitor on a flat, soft surface to Based on the unique monitor design, prevent scratching. Position 4 VESA mount determin idea way to remove any stand holes on rear side of monitor to the install currently connected to the monitor via VESA module mount holes. Step 3 Determine screw type Step 4 Secure module to monitor Four VESA mount screw (metric size 4M) are provided (both 20mm and 25mm lengths). Ensure the rear slide is pointed the correct Determine the proper screw length by way to allow for the monitor to be upright as beginning installation of the module to the preferred by the user. ...
- Page 10 The Minimalist, Modular, Wall-Mounted Standing Desk 5. Keyboard Module Assembly The keyboard module is designed to support several types of computer peripherals while maintaining comfortable ergonomics. In each design, the module holds a keyboard and some form of a mouse or trackpad. For all keyboard modules, there are 3 main components for connecting to the StandCrafted Spine: Vertical Component Horizontal Component Keyboard / Mouse Platform (and rear slide) All steps for keyboard module assembly are described in the table below. Videos of the assembly are also posted on YouTube. Please find our uptodate links on our website standcrafted.com/support Step 1 Connect horizontal and vertical Step 2 Connect vertical and keyboard components components Using the pats marked r otational assembly in the ...
- Page 11 The Minimalist, Modular, Wall-Mounted Standing Desk 6. Laptop Module Assembly The laptop module is designed to support any vendor model laptop in an open, leaning position against the spine. The module is delivered preassembled, but it was unassembled for shipping. To reassemble, simply use a power drill or phillips head screwdriver to reconnect the three components into place. Ensure the rear slide is in the correct alignment with respect to spine insertion. 7. Final Desk Assembly With the spine secured to the wall and all four modules assembled, the components can be rotated freely throughout the spine at the user’s ergonomic preferences throughout each work day. Please refer to healthcare guidance on recommended ergonomic measurements for each user. Page 10 ...
