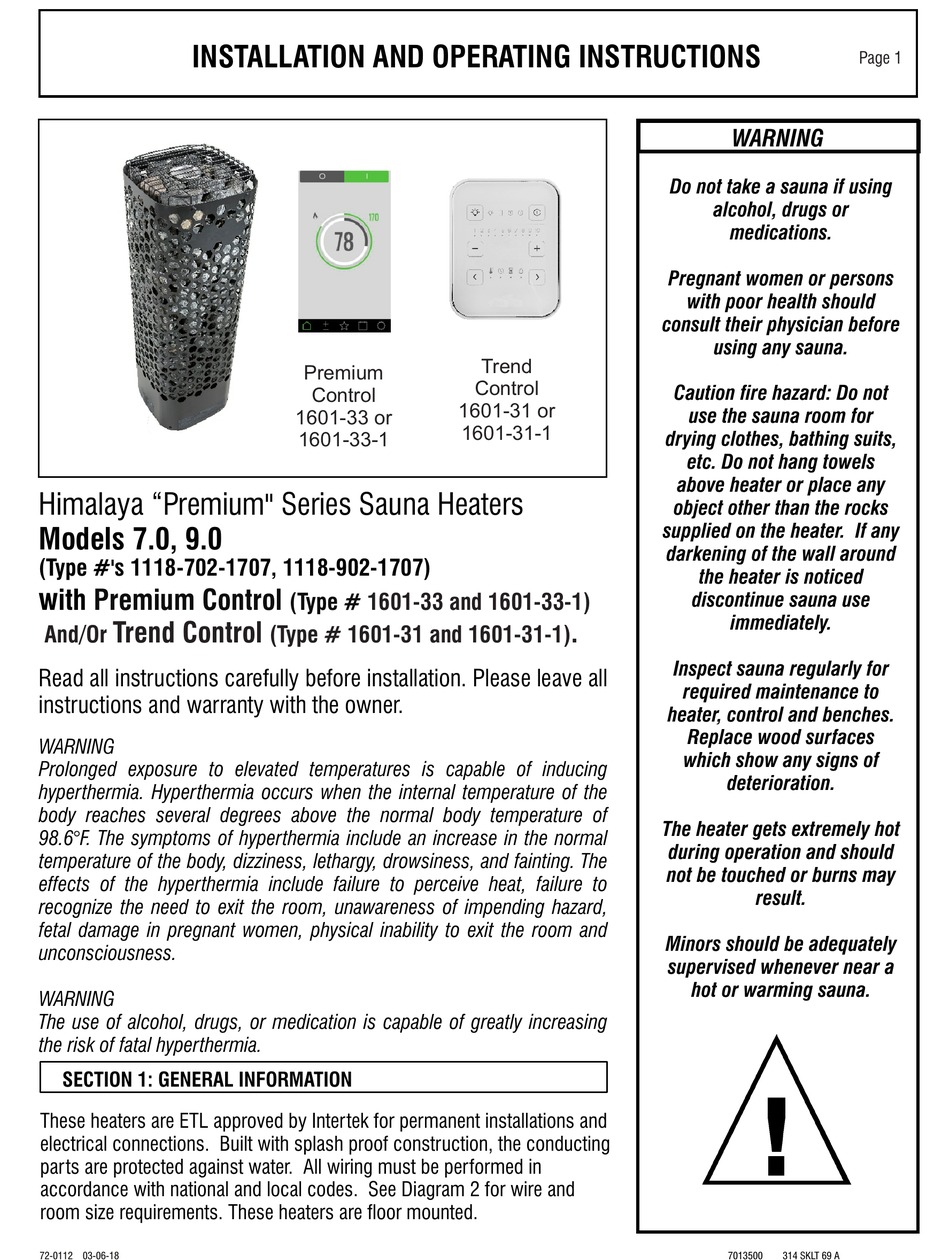

INSTALLATION AND OPERATING INSTRUCTIONS

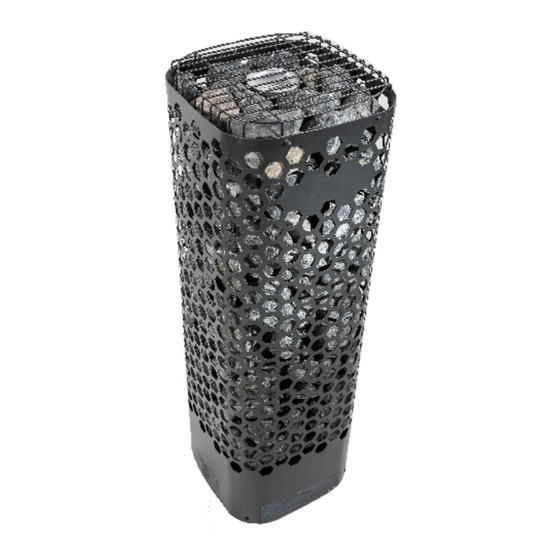

Himalaya "Premium" Series Sauna Heaters
Models 7.0, 9.0
(Type #'s 1118-702-1707, 1118-902-1707)
w
ith
Premium Control
Trend Control
And/Or
Read all instructions carefully before installation. Please leave all
instructions and warranty with the owner.
WARNING
Prolonged exposure to elevated temperatures is capable of inducing
hyperthermia. Hyperthermia occurs when the internal temperature of the
body reaches several degrees above the normal body temperature of
98.6°F. The symptoms of hyperthermia include an increase in the normal
temperature of the body, dizziness, lethargy, drowsiness, and fainting. The
effects of the hyperthermia include failure to perceive heat, failure to
recognize the need to exit the room, unawareness of impending hazard,
fetal damage in pregnant women, physical inability to exit the room and
unconsciousness.
WARNING
The use of alcohol, drugs, or medication is capable of greatly increasing
the risk of fatal hyperthermia.
SECTION 1: GENERAL INFORMATION
These heaters are ETL approved by Intertek for permanent installations and
electrical connections. Built with splash proof construction, the conducting
parts are protected against water. All wiring must be performed in
accordance with national and local codes. See Diagram 2 for wire and
room size requirements. These heaters are oor mounted.
72-0112 03-06-18
Premium
Control
1601-33 or
1601-33-1
(Type #
1601-33 and 1601-33-1)
(Type # 1601-31 and 1601-31-1)
Trend
Control
1601-31 or
1601-31-1
.
WARNING
Do not take a sauna if using
alcohol, drugs or
medications.
Pregnant women or persons
with poor health should
consult their physician before
using any sauna.
Caution re hazard: Do not
use the sauna room for
drying clothes, bathing suits,
etc. Do not hang towels
above heater or place any
object other than the rocks
supplied on the heater. If any
darkening of the wall around
the heater is noticed
discontinue sauna use
immediately.
Inspect sauna regularly for
required maintenance to
heater, control and benches.
Replace wood surfaces
which show any signs of
deterioration.
The heater gets extremely hot
during operation and should
not be touched or burns may
result.
Minors should be adequately
supervised whenever near a
hot or warming sauna.
7013500
314 SKLT 69 A
Page 1
Advertisement
Table of Contents
Summary of Contents for Himalaya Premium 7.0
-
Page 1: Section 1: General Information
1601-31-1 drying clothes, bathing suits, 1601-33-1 etc. Do not hang towels above heater or place any Himalaya “Premium" Series Sauna Heaters object other than the rocks supplied on the heater. If any Models 7.0, 9.0 darkening of the wall around... - Page 2 HEATER MODEL / Area Height Cu.Ft. Height Cu.Ft. Heater Product Number PHASE AMPS 32.7 2 #8AWG+N+GR 28.3 Himalaya Trend 7.0 2 #8AWG+N+GR 21 sq. ft. 75" 96" 1118-702-1707 18.9 3 #10AWG+N+GR 16.4 3 #10AWG+N+GR 43.3 2 #6AWG+N+GR Himalaya Trend 9.0 37.5...
-
Page 3: Section 2: Mounting Of Sauna Heater
INSTALLATION AND OPERATING INSTRUCTIONS Page 3 WARNING SECTION 2: MOUNTING OF SAUNA HEATER -NOTE: Complete electrical connections and test the heater prior to this step. Attach wall bracket to any of the mounting holes located on either side of the spine on the Fire sprinkler systems used rear of the heater shroud (reference diagram 4). - Page 4 INSTALLATION AND OPERATING INSTRUCTIONS Page 4 DIAGRAM 4 DIAGRAM 3 Sensor protective cover. Locate bottom of sensor horizontally 3" from ceiling and directly above the heater. Sensor Wire Trend Control Minimum ceiling 75" spacing Heater Input Power Bracket ts in any hexagon opening and then screws to the wall or bench.
- Page 5 INSTALLATION AND OPERATING INSTRUCTIONS Page 5 DIAGRAM 6 Single Phase Wiring Diagram Color Code Himalaya Heater Models 1118-702-1707 6.8 kW Premium Sensor Control 1118-902-1707 9.0 kW 1601-33 or 1601-33-1 Trend Front Control Element Middle 1601-31 or Element 1601-31-1 Back Sensor...
- Page 6 INSTALLATION AND OPERATING INSTRUCTIONS Page 6 DIAGRAM 6 Three Phase Wiring Diagram Color Code Himalaya Heater Models 1118-702-1707 6.8 kW Premium Sensor Control 1118-902-1707 9.0 kW 1601-33 or 1601-33-1 Trend Front Control Element Middle 1601-31 or Element 1601-31-1 Back Sensor...
-
Page 7: Section 6: Heater Guard Rail
INSTALLATION AND OPERATING INSTRUCTIONS Page 7 WARNING SECTION 6: HEATER GUARD RAIL Install a wooden heater guard to prevent the sauna bather from accidentally touching the sauna heater. Install the heater guard rail with the dimensions shown Do not locate benches over in Diagram 1. -
Page 8: Operation
INSTALLATION AND OPERATING INSTRUCTIONS Page 8 SECTION 7: PREMIUM CONTROL OPERATION (1601-33 or 1601-33-1) Home Screen A. - Off Button B. - On Button C. - Set Point Room Temperature D. - Current Room Temperature E. - Home Button F. - Temperature Button G. - Page 9 INSTALLATION AND OPERATING INSTRUCTIONS Page 9 SECTION 7: PREMIUM CONTROL (1601-33 or 1601-33-1) OPERATION, Continued Temperature Screen Options Temperature and Room Light Sauna Duration Creating Favorites Change temperature by pressing + Change sauna length by pressing Ensure temperature and sauna or - to desired temperature.
- Page 10 INSTALLATION AND OPERATING INSTRUCTIONS Page 10 SECTION 7: PREMIUM CONTROL (1601-33 or 1601-33-1) OPERATION, Continued Calendar Screen Options Adding One Time Event Adding One Time Event Adding One Time Event Calendar Showing Event Scheduled Click the date for the event. Click the + to add event.
- Page 11 INSTALLATION AND OPERATING INSTRUCTIONS Page 11 SECTION 7: PREMIUM CONTROL (1601-33 or 1601-33-1) OPERATION, Continued Calendar Screen Options Setting Screen Options Viewing Scheduled Events Setting Options Click the in the upper Select the icon in the lower right corner of the control to access right corner to see events.
- Page 12 INSTALLATION AND OPERATING INSTRUCTIONS Page 12 SECTION 7: PREMIUM CONTROL (1601-33 or 1601-33-1) OPERATION, Continued Phone Application Setup Screen Application Home Screen Network Choose Sauna Control Select the Settings icon. Select network Phone must be connected to the same network as Sauna Control Press Find System Choose Control Connect to Control...
- Page 13 INSTALLATION AND OPERATING INSTRUCTIONS Page 13 SECTION 7: TREND CONTROL (1601-31 or 1601-31-1) OPERATION, Continued A. - On/Off Light Switch B. - Indicators - lighting, door switch (n/a), timer and the heater C. - On/Off Sauna Switch and fault alarms D.
-
Page 14: Section 8: High Limit Control (Reset Button)
INSTALLATION AND OPERATING INSTRUCTIONS Page 14 SECTION 7: TREND CONTROL OPERATION, Continued SET TEMPERATURE: Press function button (F). Then you can choose the desired temperature 1–10 using buttons – and +. (Setting 10 equals highest set point.) When the desired temperature has been set and the heater is switched on, the set temperature indicator light will remain on and the current temperature indicator LED will ash. - Page 15 INSTALLATION AND OPERATING INSTRUCTIONS Page 15 DIAGRAM 7 DIAGRAM 8 TYPICAL PRE-CUT WALL CONSTRUCTION HEATER SCREEN (GUARD RAIL) 1/2" wallboard 2x4" framing 2 " min berglass insulation 6" min foil vapor barrier Heater Guard T&G soft wood 1/2" wallboard DIAGRAM 9 DIAGRAM 10 VENTILATION 1.
-
Page 16: Section 10: Warning Placards
INSTALLATION AND OPERATING INSTRUCTIONS Page 16 WARNING DIAGRAM 11 The "CAUTION" and "WARNING" placards must be mounted in accordance with Section 10. BWT tank hangs on the top of the BWT tank, tank lid, and the vent cover heating elements. installed and the rocks placed around the tank. -
Page 17: Section 12: Ventilation
INSTALLATION AND OPERATING INSTRUCTIONS Page 17 SECTION 12: VENTILATION VENTILATION In a sauna, the air should be changed about 6 times an hour. This can be achieved by making a vent opening (fresh air inlet) in the sauna wall directly below the heater. The air outlet must be lower than the upper benches, as far as possible from the heater and about two feet higher than the fresh air inlet vent, See Diagram 9. - Page 18 INSTALLATION AND OPERATING INSTRUCTIONS Page 18 DIAGRAM 12: ROOM TEMPERATURES 190° F Ceiling Non-Typical Ceiling Height 140° F Head Height Notes: Temperatures vary in a sauna room by height and distance from heater. Ventilation will help reduce it but will not eliminate temperature variations.
-
Page 19: Section 15: Replacement Parts
SWITCH,HIGH LIMIT,55.31529.960 2100-552 TERMINAL,BLOCK,4-POS,WHT 5304-019 CABLE,ASSY,FLAT,12",4-COND,RJ10/22 CONNECTORS 3100-593 FUSE,CIRBRKR,SC,2 AMP,T13-211-2A 2100-550 TERMINAL,BLOCK,6POS,SPADE,W/3JUMPERS,NLWB,1-1 8093-001 ENCL,ELECTRICAL CHASSIS,HIMALAYA 3229-015 PCA,SAUNA,RELAY,HIGH,PAL,SERVICE 3131-517 CONTACTOR,OKTA 5-1,LC7K09004M7 8026-020 STAND,ADJ.FEET,HIMALAYA 8201-039 BRKT,PCA HIGH MNT,SST,VERT,(Himalaya) (Not Shown) 8012-477 COVER,ELECTRICAL ACCESS,HIMALAYA (Not Shown) 72-0112 03-06-18 7013500 314 SKLT 69 A... -
Page 20: Section 15: Troubleshooting
INSTALLATION AND OPERATING INSTRUCTIONS Page 20 SECTION 15: TROUBLESHOOTING Control will Run but No Heat - Press the (reset) high limit switch on the back right side of heater. Slow Heat Time or High Limit Tripping - Check rock placement, they will break down over time and reduce the air ow in the heater. -
Page 21: Section 16: Installation Premium Control
INSTALLATION AND OPERATING INSTRUCTIONS Page 21 SECTION 16: INSTALLATION PREMIUM CONTROL OPERATION (1601-33 or 1601-33-1) Page Intentially Left Blank 72-0112 03-06-18 7013500 314 SKLT 69 A... - Page 22 INSTALLATION AND OPERATING INSTRUCTIONS Page 22 SECTION 16: INSTALLATION PREMIUM CONTROL OPERATION (1601-33 or 1601-33-1) Recessed Mounting For the Premium Control The recessed mounting box allows the control to mount with its surface almost even to the wall surface. Print this page to “Actual”...
