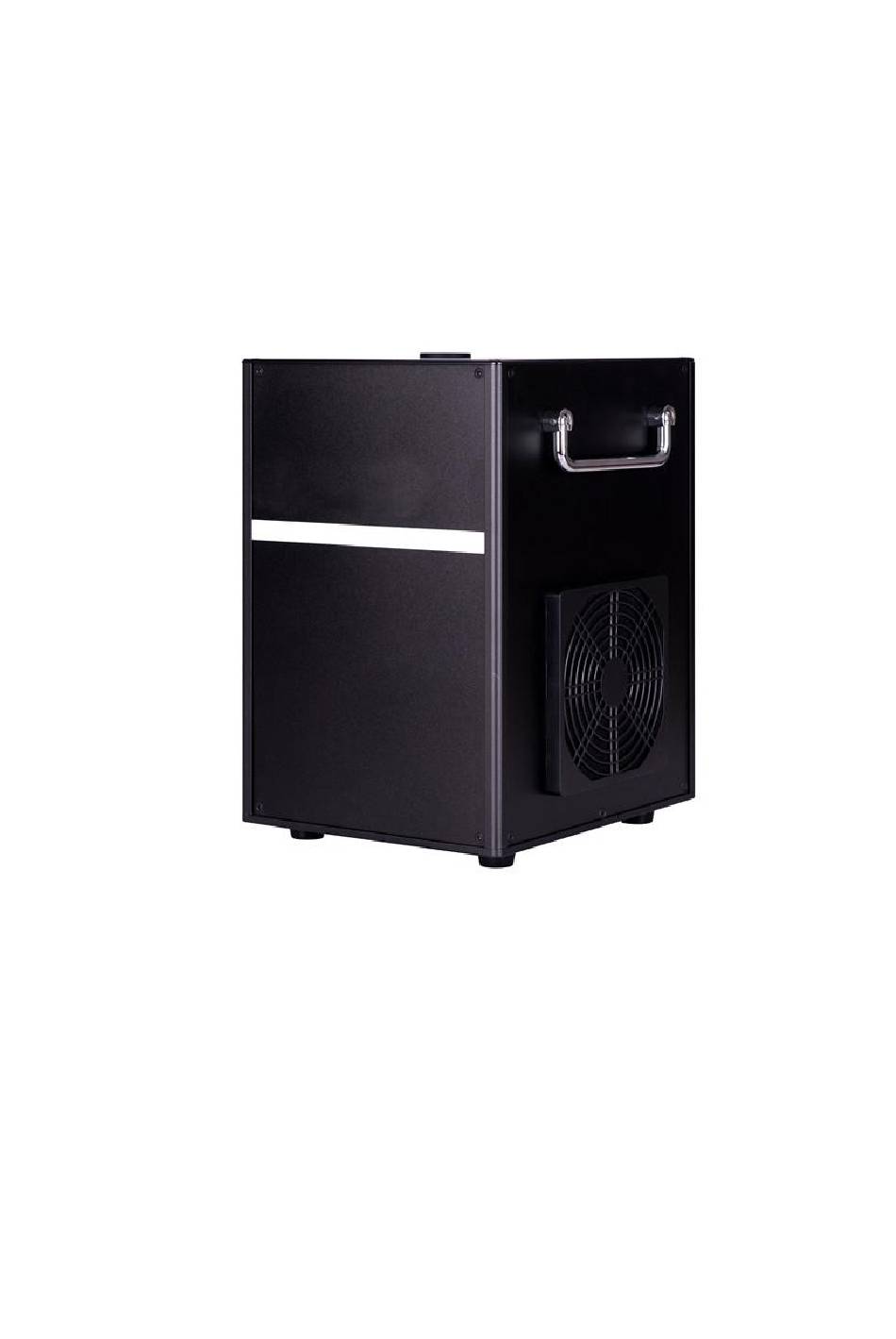

- Page 1 SPARKULAR USER MANUAL Please read this manual carefully before operating this product.
- Page 2 Safety Warnings and Cautions The sign is to remind users of paying attention to risk and security. Please note that the machines are not meant to be a continuous duration effect. The maximum running time is 30 second and can be repeated but should not be done to overheat the machine. Eye Protection Eye protection warning sign is to remind you of protecting the eyes during the machine operation.
-
Page 3: Security Considerations
2. Keep sparkular dry and do NOT use in rain or snow. 3. Make sure the hopper lid is well covered when use sparkular. Accidentally Burning of Composite Ti can only use sands to extinguish. Composite Ti should be stored in a dry sealed environment. - Page 4 Parameter(machine): sparkular 1(DMX control mode) Model: sparkular 2(DMX+remote control mode) Working Height: 1-5 meters Working Temperature: -10℃-50℃ Power: 400w 3.6A (110V version) 400w 1.8A (220V version) Fuse: 110V/10A, 220V/6A Control: DMX/remote control+DMX Net Weight: 9.5kg Dimensions: 230*195*300mm Max connections:...
-
Page 5: Operation Panel
DMX 512 setting: The first channel: Functions: 0-10 Pre-heat OFF 11-220 E-stop 221-239 clear powder 240-255 Pre-heat ON The second channel: Functions: 0-15 Pre-heat OFF 16-39 working height 1 40-63 working height 2 64-87 working height 3 88-111 working height 4 112-135 working height 5 136-159... - Page 6 DMX channel. For example, “001”, it is connecting the 1 channel. When it is heating, LED screen shows the temperature.) Remote control mode: only sparkular 2(DMX+remote control mode) has this function 1. Please press the red button “Power” to turn on the machine.
- Page 7 Power cable connection： For convenient use, there are power supply cable and power supply ex-cable. power Supply ex-cable can achieve multiple devices connected, and maximum cascade is 6pcs. If you use mobile power plate, be sure to use good quality and match rated power products.
- Page 8 1. Do not run over 30 seconds for each time. 2. Make sure the device is turned off while refilling. 3. In case of fire, use sand to extinguish. Do not use water. 4. Keep away from children. 5. Damage caused by improper using, installation, transportation, and maintenance, or damage caused by human factors are out of our warranty service range.
