Caimore CM510-x-50P Series Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
1

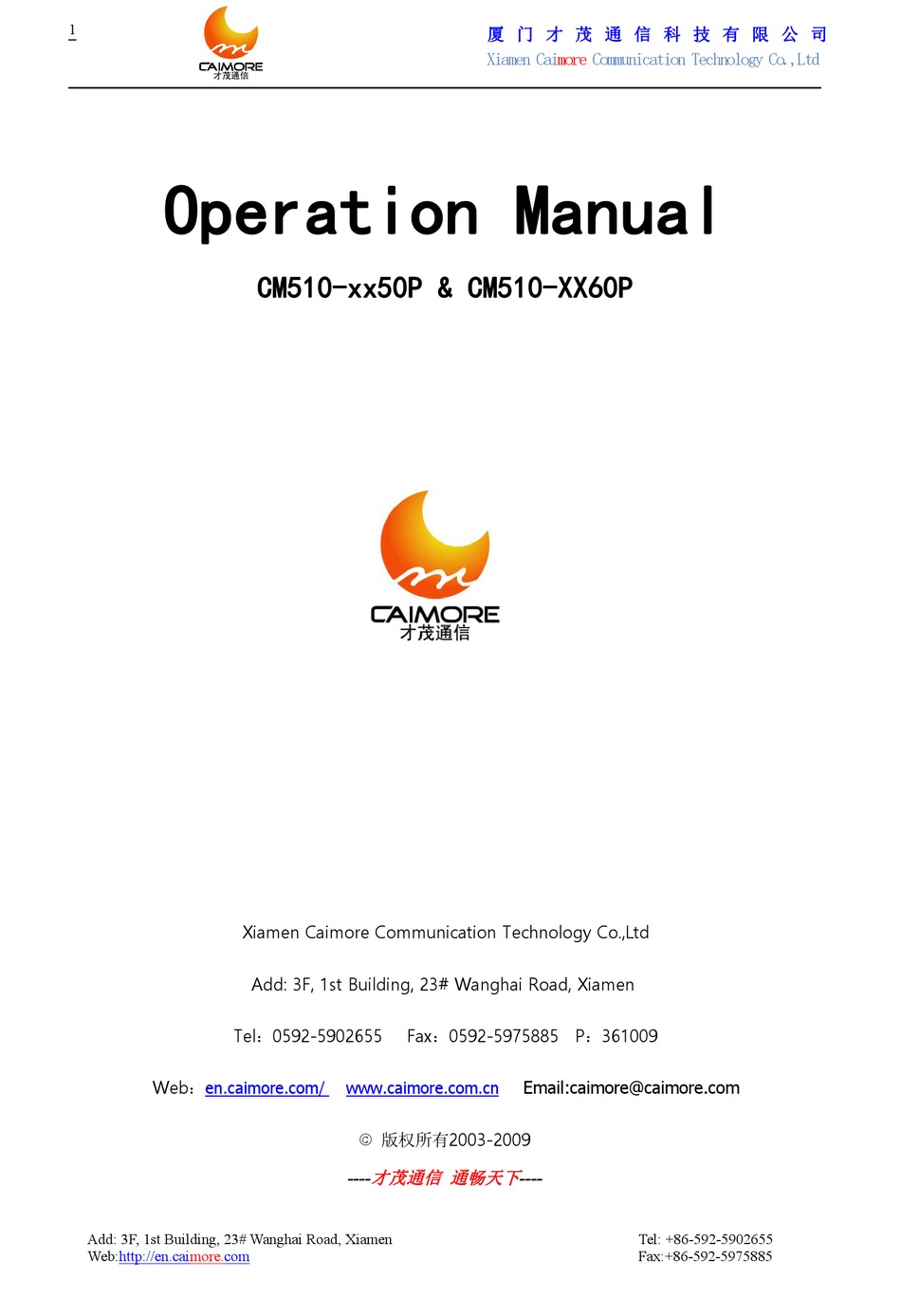

Operation Manual
Tel：0592-5902655
en.caimore.com/
Web：
Add: 3F, 1st Building, 23# Wanghai Road, Xiamen
Web:http://en.caimore.com
CM510-xx50P & CM510-XX60P
Xiamen Caimore Communication Technology Co.,Ltd
Add: 3F, 1st Building, 23# Wanghai Road, Xiamen
Fax：0592-5975885 P：361009
www.caimore.com.cn
 版权所有2003-2009
----
才茂通信 通畅天下
厦 门 才 茂 通 信 科 技 有 限 公 司
Xiamen
Caimore
Communication Technology Co.,Ltd
Email:caimore@caimore.com
----
Tel: +86-592-5902655
Fax:+86-592-5975885

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CM510-x-50P Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Caimore CM510-x-50P Series

  • Page 1 厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd Operation Manual CM510-xx50P & CM510-XX60P Xiamen Caimore Communication Technology Co.,Ltd Add: 3F, 1st Building, 23# Wanghai Road, Xiamen Tel：0592-5902655 Fax：0592-5975885 P：361009 Email:caimore@caimore.com en.caimore.com/ www.caimore.com.cn...
  • Page 2 Xiamen Caimore communication technology co.,Ltd. Trademark： Caimore and other Caimore brands are possessed by Xiamen Caimore communication technology co.,Ltd. Other brands or registered brands mentioned in this page are possessed by their owner. Notice: The file will be updated because of the unscheduled upgrade of products and other reasons.

  • Page 3: Table Of Contents

    厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd Catalog 1 Installation...............................5 1.1 Overview..............................5 1.2 Unpacking............................5 1.3 Installation and Cable Connection.......................5 1.3.1 Installation of Antenna and SIM Card..................5 1.3.2 Install Cables..........................6 1.4 Power Supply.............................
  • Page 4 厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd Appendix V: UDP Protocol Document......................33 Add: 3F, 1st Building, 23# Wanghai Road, Xiamen Tel: +86-592-5902655 Web:http://en.caimore.com Fax:+86-592-5975885...

  • Page 5: Installation

    1 Installation 1.1 Overview To meet the design function, DTU must be installed correctly. Usually, the installation should be under the guidance of qualified engineer who is approved by Xiamen Caimore communication technology co.,Ltd.  Notice： Please install the DTU without power! 1.2 Unpacking...

  • Page 6: Install Cables

    厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd 1.3.2 Install Cables Definition of RS232 DB9 interface: (1)CMxx60P series’ interface: Diagram of interface plane: DTU user data interface DB9 cable connector is BoxHeader, pitch:2.0mm, 9Pin.
  • Page 7 厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd Interface’s definition Electrical Input Interface Function Interface Default Extended Characteristics Number Classification Name Function Function Output Online prompt pin(After DTU connect data center, this pin...
  • Page 8 厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd ~ 30v voltage DTU power off (2)CMxx50P series’ interface: Diagram of interface plane DTU user data interface DB9 cable connector is BoxHeader, pitch:2.0mm, 9Pin.
  • Page 9 厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd computer ,the date flow is: DTU<-computer) RS232 interface, send pin(Assume DTU connected Standard RS232 output to computer ,the voltage date flow is: DTU->computer)

  • Page 10: Power Supply

    厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd 1.4 Power Supply The DTU model can be used in complex environment. Usually, the range of power changes large. To adapt to complex application environment excellently and improve the stability of system, the power supply adopts advanced power technology, and power provided directly by external power supply transformer.
  • Page 11 CD: English\ wireless data transmission terminal DTU\ tool software of products\ DTU configuration software V544 of xiamen caimore communication technology co.,Ltd\ DTU configuration software VXXX.exe of xiamen caimore), then run the program. Program interface as follows.
  • Page 12 厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd Selected Model Interface Product Model Type CM3150P,CM6550P,CM8150P,CM8250P,CM8350P,CM510-21H, CMxx50 CM510-21T,CM510-21F CMxx60 CM3160P、CM6560P CM3150P-SVR,CM6550P-SVR,CM8150P-SVR,CM8250P-SVR,CM8 CMxx50-SERVER 350P-SVR,CM510-21H-SVR,CM510-21T-SVR,CM510-21F-SVR Remark: you can find the corresponding models in configuration log.

  • Page 13: Manual Configuration

    厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd 7. You can configure parameters after it appear a cue that “Load Parameter: Success!”. 8. The configuration process can refer to 4. Configure DTU Rapidly and 5. Details of DTU Configuration.

  • Page 14: Import Configuration

    厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd 3. After loading configuration information, click File and Export. 4. Then there is a Export window. 5. You can set the file path and file name in this interface. Then click the save button.

  • Page 15: Preparation Before Configuring

    5. In this interface, you can select the corresponding configuration file you want. Then click the Open button. 4 Preparation Before Configuring 1. Please run Xiamen Caimore DTU Configuration Software VXXX.exe. 2. Choose corresponding model: Choose DTU in Type Choose corresponding model in Model...

  • Page 16: Details Of Configuration

    厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd CMxx60 CM3160P、CM6560P CM3150P-SVR,CM6550P-SVR,CM8150P-SVR,CM8250P-SVR,CM8 CMxx50-SERVER 350P-SVR,CM510-21H-SVR,CM510-21T-SVR,CM510-21F-SVR 3. Enter Configuration State: 1）Choose corresponding serial port, set baud rate to 115200bps, data bits to 8, parity to NONE,stop bits to 1, and flowctrl to NONE.

  • Page 17: Center Server Conf

    厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd Description of Basic Conf: Name Description Notice If there is no static IP for server, please Main Server IP Set it to main server’s IP address or domain name.
  • Page 18 厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd Description of Center Server Conf: Name Description Notice The max number of server link is NO. of server Link The number of server...

  • Page 19: Advance Conf

    厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd 4. If DNS server does not be appointed, please set address to 0.0.0.0 for 3160/6560 series, other series are set to empty. 5.3 Advance Conf Parameters in this page are used to configure DTU’s working state, such as time to reconnect center...
  • Page 20 厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd Description of Advance Conf Name Model Description Notice Protocol used in communication. Include TCP, UDP, COM Mode and TRNS. Different level debug information shown at Data display...

  • Page 21: Net Conf

    厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd 5.4 Net Conf The default network parameters is general network which is used to dial telecommunication carrier.The details can refer to Appendix I, Parameters of Net Conf.
  • Page 22 厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd Description of Activate Conf Name Description Notice Wake-up mode, include SMS, PHONE, DATA, The details can refer to table Wake-up Mode MIX, and IO.

  • Page 23: Protocol Conf

    Communication Technology Co.,Ltd 5.6 Protocol Conf By default, DTU establishes a link and transfers data by using protocol of Xiamen Caimore Communication Technology Co.,Ltd(Protocol norm can refer to appendixes of TCP Protocol Document and UDP Protocol Document). If software on server already compatible with our company’s protocol, you can keep the default configuration or the parameters should be changed.

  • Page 24: Parameters Configuration Reference Table Of All Transmission Protocol

    TCP Caimore’s protocol UDP Transparent transmission UDP Caimore’s protocol After restoring the factory or default TCP Caimore’s protocol transfer mode Notice：following information is the introduction for some special transmission: Add: 3F, 1st Building, 23# Wanghai Road, Xiamen Tel: +86-592-5902655 Web:http://en.caimore.com Fax:+86-592-5975885...
  • Page 25 厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd XX60 series under TCP Transparent transmission configure: Configured according to the table it will be sent every minute that contains the actual data retention 0xFE online package.

  • Page 26: Configure Registered Packet

    厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd In this mode, DTU to receive within every 300 seconds to the data from the data center, or DTU will be reached when 300 seconds, reconnect the server to ensure DTU permanent online. During reconnect to the server, there is a time interval (30-60 seconds), in this time sent to the user equipment DTU data will be discarded.

  • Page 27: Configure Heartbeat Packet

    厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd <NONE>: Do not Send default heartbeat respond packet, can not be used with other characters. <ID>: Send ID number, and can be used with other characters.

  • Page 28: Instruction Of Local Network / Server Mode Parameters

    厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd 5.7.1 Instruction of Local Network / Server Mode Parameters Local Network Conf’s Interface: a. CMxx50-SERVER series: b. CMxx60 series: Description of Conf: Name...
  • Page 29 厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd Maximum Allowable ID Server-DTU will disconnect Client Timeout connection with a client-DTU if the xx50-SERVER Time client-DTU’s data-send interval more than the value of this parameter.

  • Page 30: Appendix I: At Commands Set

    厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd Timeout Time server-DTU over the time, server-DTU will reboot wait client’s connection. We suggest to not to use it for it can parameter...
  • Page 31 厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd AT+PORT6 AT+IPAD7 AT+PORT7 AT+IPAD8 AT+PORT8 AT+DNS Configure primary DNS server’s IP address AT+DNS2 Configure alternate DNS server’s IP address Configure baud rate AT+IPR...

  • Page 32: Appendix Ii: Description Of Indicator

    厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd AT+SMSPSWD Configure SMS wake-up password AT+DONPSWD Configure serial wake data AT+DOFFPSWD Configure sleep data Appendix II: Description of Indicator Indicator Status Description normal...
  • Page 33 All series of DTU send data to server transparently.  Notice: 1. It suggests that fix the length of registered packet to 21 bytes if you use Caimore’s demo software of data center and want to change the registered packet.
  • Page 34 厦 门 才 茂 通 信 科 技 有 限 公 司 Xiamen Caimore Communication Technology Co.,Ltd Description: DTU Identify Code：DTU RUIM card’s number, such as 13312345678 DTU IP Address：the IP address after DTU dial successfully Local Port ： XX50 and XX60 can not fix the local port, and the port is different among each connection.
