SewingMachinesPlus QF00007-12 Assembly Instructions Manual

King quilter ii frame
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

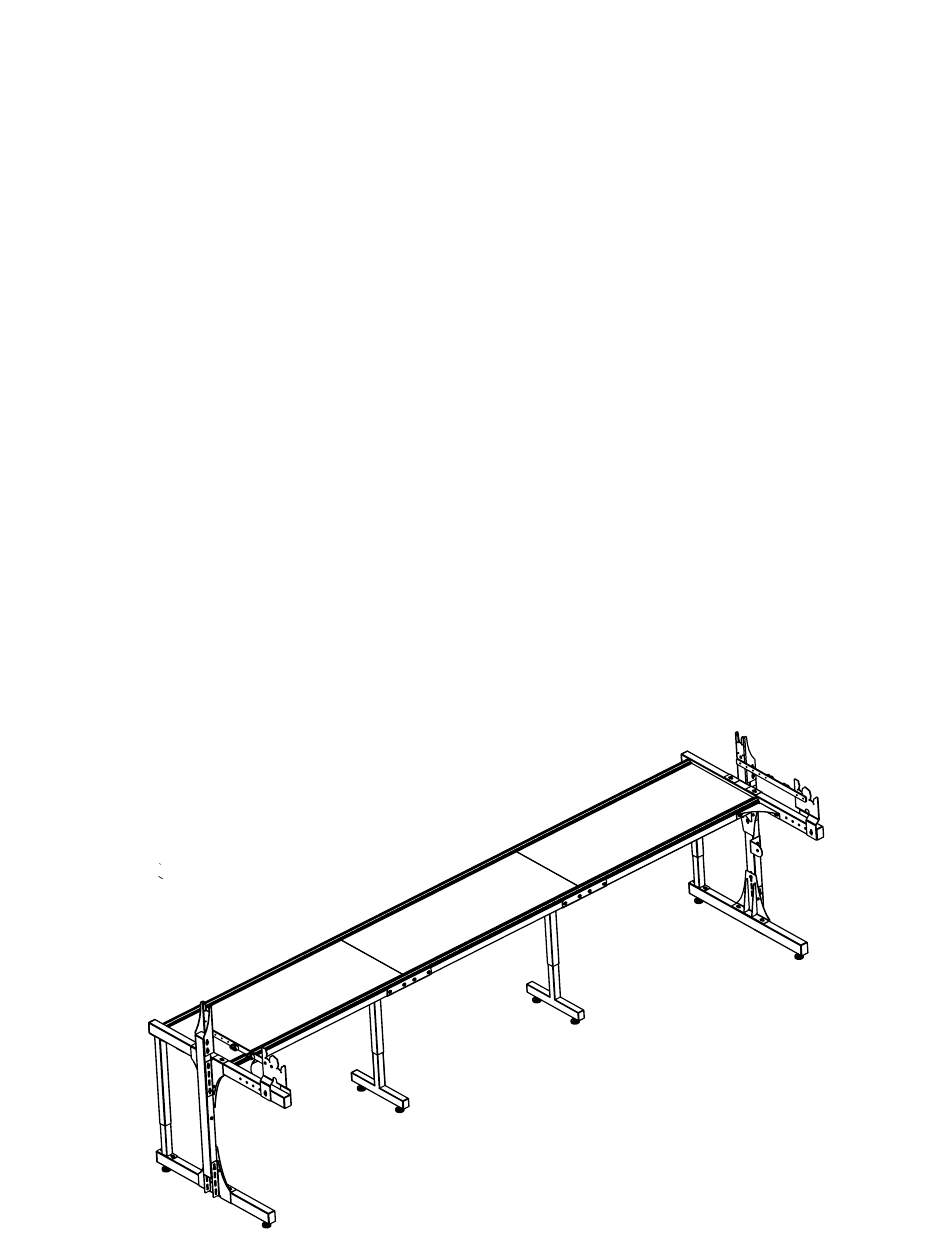

King Quilter Frame
Assembly Instructions
November 2018

Table of Contents

Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 2
Step 1: End Leg Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 8
Step 2: Table Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 14
Step 3: Center Leg Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . .page 15
Step 4: End Leg to Table Assembly . . . . . . . . . . . . . . . . . . . . . .page 17
Step 5: Precision-Glide Track Assembly . . . . . . . . . . . . . . . . . . page 22
Step 7: Bungee Cleat Assembly . . . . . . . . . . . . . . . . . . . . . . . . .page 26
Step 8: Leveling the Frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 27
Step 9: Pole Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 28
Step 10: Adding Pole Ends . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 29
Step 11: Pole to Frame Assembly . . . . . . . . . . . . . . . . . . . . . . . page 31
Step 12: Rubber End Cap Assembly . . . . . . . . . . . . . . . . . . . . . .page 32
Step 13: Bungee Clamp Assembly . . . . . . . . . . . . . . . . . . . . . . .page 33
Step 15: Attach Leaders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 35
King Quilter Frame Assembly 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QF00007-12 and is the answer not in the manual?

Questions and answers

Related Manuals for SewingMachinesPlus QF00007-12

Summary of Contents for SewingMachinesPlus QF00007-12

  • Page 1: Table Of Contents

    King Quilter Frame #QF00007-12 and QF00007-10 Assembly Instructions November 2018 Table of Contents Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 2 Preparation: Batting Bar Bracket Assembly, Do this First! .

  • Page 2: Parts List

    SMP QF00007-12 and QF00007-10 Frame Parts List 2 King Quilter Frame Assembly...
  • Page 3 SMP QF00007-12 and QF00007-10 Frame Parts List Inside Left Inside right Upper beam Left Hand Side Leg (1) Upper beam right Hand Side Leg (1) QF00007-503 QF00007-403 boX 1 boX 1 Lower beam (both Sides) (2) Upright beam both Sides (2)
  • Page 4 SMP QF00007-12 and QF00007-10 Frame Parts List Lower Gusset bracket (1 per side=2 total) Upper Gusset bracket (1 per side=2 total) QF00007-406 QF00007-407 boX 3 boX 3 outer Side bracket right (2 per side=4 total) outer Side bracket Left (2 per side= 4 total)
  • Page 5 SMP QF00007-12 and QF00007-10 Frame Parts List Front Left Pole Carrier (1) Front right Pole Carrier (1) QF00007-511 QF00007-411 boX 3 boX 3 rear Pole Carrier Arm (2) Upper middle Leg bungee Cleat bar (2) QF00007-410 (2) for 12’ frame, (1) for 10’ frame...
  • Page 6 SMP QF00007-12 and QF00007-10 Frame Parts List Large washer head Large washer head Screw m8 x 1 .25 x 16 SbHCS (98) button Head Cap screw m6 x 50mm screw m6 x 12mm Part# QF09318-07 Screw m5 x 8mm (SbHCS) (4 total)

  • Page 7: Preparation: Batting Bar Bracket Assembly, Do This First

    Preparation: Batting Bar Brackets inside view of right side left side upright beam Parts Needed 2 - upright beams 2 - batting bar brackets 2 - screws, m8 x 16mm SbHCS Tools Required 5mm Allen wrench (provided) Do this Preparation first! Prep-1: Insert an m8 x 16mm SbCHS into the batting bar bracket on the left side of the frame .

  • Page 8: Step 1: End Leg Assembly

    Step 1: End Leg Assembly NOTE: Assembly is easiest if all connections are finger-tightened first, as instructed, while assembling the Left rear Leg Upper right rear Leg Upper frame . Tighten with the wrench only when instructed . Why is this important? If you tighten as you go, you may have trouble getting all the parts to align properly .

  • Page 9: Qf00007

    Step 1: End Leg Assembly (continued) 1-2: Slide the left rear leg upper down over the rear leg lower to the desired height and insert the m8x16 screw into one of the two holes that best corresponds to your desired height . Fully tighten this height screw now to Inside view of upper beam maintain the desired height .

  • Page 10: Qf00007

    Step 1: End Leg Assembly (continued) 1-6: Identify the outer side bracket right and outer side bracket left . Two of each bracket are used on the outside of the leg assembly . on the left leg assembly the left bracket is used on the top right and bottom left and the right bracket is used on the top left and bottom right .

  • Page 11: Qf00007

    Step 1: End Leg Assembly (continued) 1-8: A left and right bracket are used on the top with three screws in each . Finger tighten the screws only for now . Note: Upright beam shown in its highest position . The frame height is adjusted at these lower...

  • Page 12: Qf00007

    Step 1: End Leg Assembly (continued) 1-10: Place the upper gusset bracket up under the upper beam and insert two m8x16 SbHCS screws through the bracket into the top beam, and two screws into the upright beam . Align the center of the elongated hole with the screw .

  • Page 13: Qf00007

    Step 1: End Leg Assembly (continued) 1-12: Turn the leg assembly to access the outside of the leg assembly . Place an m6 x12 large washer head screw thru each bracket into the gusset . There are four screws going through four brackets into the gussets .

  • Page 14: Step 2: Table Assembly

    Step 2: Table Assembly NOTE: For this step, a carpeted 2-2: 12 foot: Start with two 4-foot table sections upside- down on the floor, end to end. 10-foot: start with one surface is recommended for the 2-foot and one 4-foot table sections upside-down (black protection of your floor and frame.

  • Page 15: Step 3: Center Leg Assembly

    Step 3: Center Leg to Table Assembly NOTE: If Parts Needed NOTE: measure from the instructions were 1 - table assembly underside of the table top frame, to 2 - middle legs the bottom of the tube on the center carefully followed 4 - leveling feet leg, to confirm the center legs are the...
  • Page 16 Step 3: Center Leg to Table Assembly (continued) NOTE: on the 10 foot frame there is only one center leg assembly . It is mounted to the table left to right at the top bracket and the bottom beam runs front to back as shown .

  • Page 17: Step 4: End Leg To Table Assembly

    Step 4: End Leg to Table Top Assembly NOTE: Have an assistant hold the frame NOTE: in position as you start Place a block the two inside m6x50mm under this corner screws with large fender of the table top washer first. Then put in assembly .
  • Page 18 Step 4: End Leg to Table Top Assembly (continued) Parts Needed NOTE: It may be necessary to NOTE: 1 - table assembly Finger-tighten shim the table top a little differently 1 - left leg assembly in order to align the screws with the screws only 1 - right leg assembly rivnuts .
  • Page 19 Step 4: End Leg to Table Top Assembly (continued) 4-8: measure the two end leg assemblies at the front and rear and the two center leg assemblies to ensure they are the same height from the bottom of the table top tube to the bottom of the bottom leg tube near the floor.
  • Page 20 Step 4: End Leg to Table Top Assembly (continued) 4-10: measure between the back beam and the center of the screw on the vertical beam at the bottom and the top to determine if they are the same distance and parallel . If necessary loosen the four screws in elongated slots at the two bottom brackets and adjust the bottom of the...
  • Page 21 Step 4: End Leg to Table Top Assembly (continued) Note: Care should be taken to ensure the two ends of the frame are the same height and that the frame has been assembled correctly and consistently using the same corresponding slots on the left and right ends of the frame .

  • Page 22: Step 5: Precision-Glide Track Assembly

    Step 5: Precision-Glide Track Assembly Place the track support upside down with the m5 x 8mm SbHCS lip toward the outside Stop Screws m5 x 8mm SbHCS of the table . Fig. 5-2 QF09318-02 Center Section Track Support Third Hole for QF09318-02 F09318-02 Fig.
  • Page 23 Step 5: Track Assembly (continued) Insert a plastic track completely NOTE: The into one side of the aluminum track extrusions have supports . The plastic track should slide a wider shoulder into the track support easily . If the on one edge of plastic track binds slightly, try backing the track .
  • Page 24 Step 5: Track Assembly (continued) Track Support back of Table m6 x 12mm Connector bolt x 12 Front of Table IMPORTANT remember to slide the black plastic tracks into the track supports before you mount them to The twelve large washer head the table top .

  • Page 25: Step 6: Front Pole Carrier / Rear Pole Carrier Arm Assembly

    Step 6: Front Pole Carrier & Rear Pole Carrier Arm Assembly Parts Needed 6 .3: Place the rear pole carrier arm 2 - rear pole carrier arm with the solid face inside and the two 2 - front pole carrier flanges to the outside onto the vertical 12 - screw m8 x 16mm SbHCS beam .

  • Page 26: Step 7: Bungee Cleat Assembly

    Step 7: Bungee Cleat Bar Assembly Parts Needed 2 - bungee cleat bars 2 - front pole carrier 6 - screws, M6 x 12mm large flange Tools Required 4mm Allen wrench (provided) 7-1: Align the bungee cleat bar inside the front pole carrier and rear pole carrier arm .

  • Page 27: Step 8: Leveling The Frame

    Step 8: Leveling the Frame Parts Needed: 1 - assembled frame with leveling feet Tools Required: 17/13/16mm wrench (provided) 8-1: It is recommended that the frame be leveled by using the machine on its carriage . The machine should stay where ever it is placed, left to right and front to back, without rolling .

  • Page 28: Step 9: Pole Assembly

    Step 9: Pole Assembly hole for spring button IMPORTANT: be careful not to pinch your hands between pole parts while sliding them together . spring button Pole Section NOTE: Your frame comes with 15 pole sections, which enable you to create 5 completed pole assemblies Pole Coupler •...

  • Page 29: Step 10: Adding Pole Ends

    Step 10: Adding the Pole Ends QF11034 ratchet QF11035 ratchet QF11023 ratchet QF11036 ratchet QF11037 spring right hand (x2) thumb shifter left hand (x1) idler end cap loaded idler end (x3) (x3) cap (x4) Parts Needed 5 - pole assemblies 1 - ratchet left hand 2 - ratchet right hand 3 - ratchet idler end cap...
  • Page 30 Step 10: Adding the Pole Ends (continued) QF11035 ratchet QF11036 ratchet QF11036 ratchet QF11034 ratchet QF11037 spring left hand (x1) thumb shifteridler idler end cap right hand (x2) loaded idler end end cap (x3) (x3) cap (x4) 10-5: Insert the ratchet idler end cap into the other end of the pole while aligning the large round tab with the large side hole in the pole .

  • Page 31: Step 11: Pole To Frame Assembly

    Steps 11: Pole to Frame Assembly backing Pole Quilt-Top Pole Take-up Pole Idler Pole batting Storage Pole Parts Needed 1 - frame assembly 1 - batting storage pole 1 - backing pole 1 - quilt-top pole 1 - idler pole 1 - take-up pole Tools Required None...

  • Page 32: Step 12: Rubber End Cap Assembly

    Step 12: Rubber End Cap Assembly Parts Needed 1 - backing pole 1 - quilt top pole 2 - rubber cap #QF09318-716 Tools Required: None 12-1: Slide one (1) rubber end cap onto the end of the bolt sticking out of the ratchet on the backing pole and quilt top pole .

  • Page 33: Step 13: Bungee Clamp Assembly

    Step 13: Bungee Clamp Assembly Parts Needed 1 - frame assembly with bungee cleats 4 - bungee clamps Tools Required: None 13-1: Thread the bungee cord from the inside of the frame through the bungee cleat; then pull the cord in a downward movement to lock the bungee clamp in place .

  • Page 34: Step 14: Hook And Loop Strips On Poles Assembly

    Steps 14: Hook and Loop on Pole Assemblies Parts Needed 1 - quilt-top pole 1 - backing pole 1 - take-up pole 3 - hook and loop strips Tools Required measuring tape or ruler (not provided) Scissors (not provided) NOTE: Attach the strip next to the snap button, not between .

  • Page 35: Step 15: Attach Leaders

    Steps 15: Attach Leaders Parts Needed 1- frame assembly with hook and loop strip applied to poles 3 - King Quilter leaders NOTE: The leaders provided with the King Quilter Frame are sized for the 12-foot frame . If you are setting the frame up at the 10-foot, 8-foot or 4-foot length, you should cut the leaders to fit.
