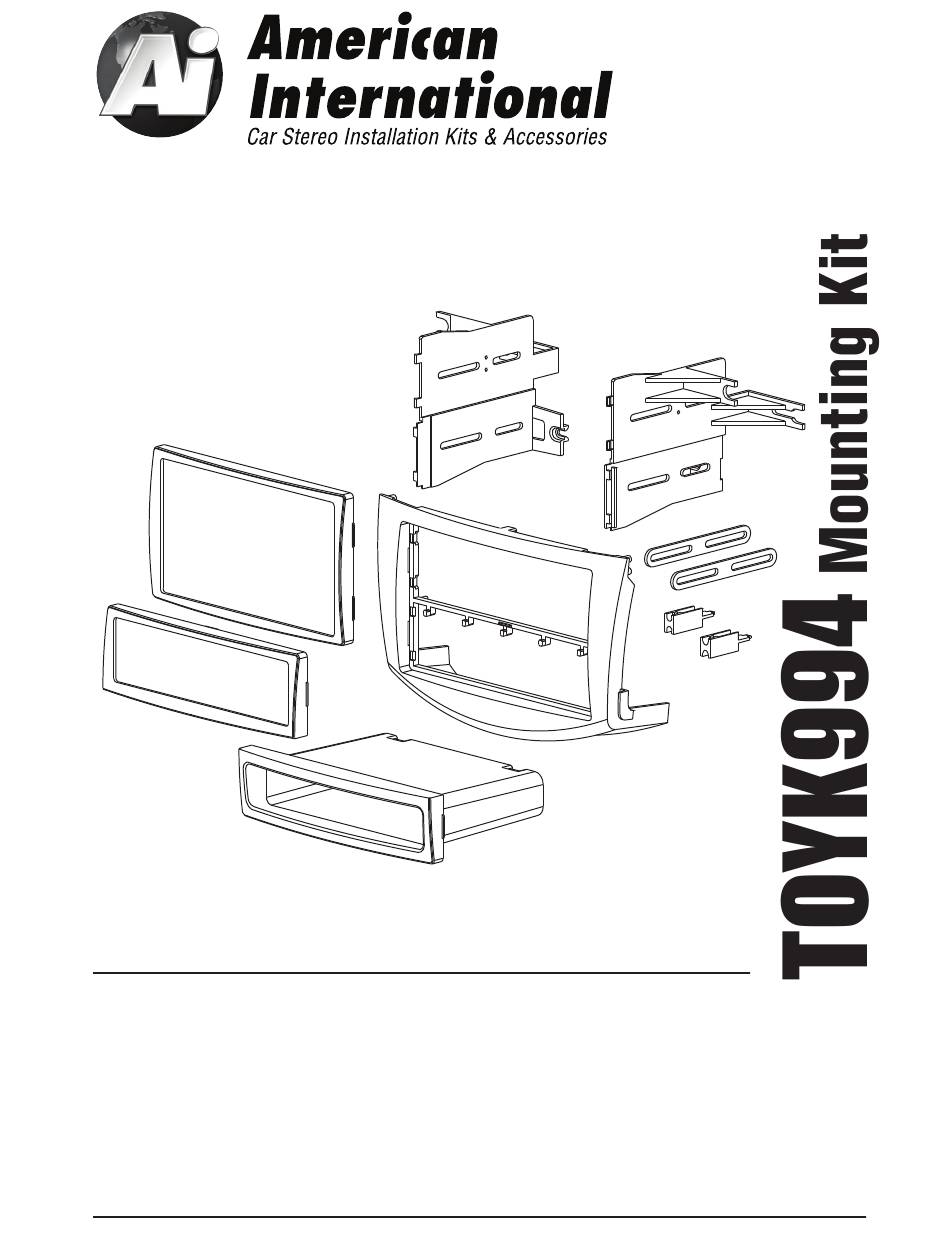

- Page 1 VEHICLE APPLICATIONS Toyota 2006-12 RAV 4 TECH Ver. 1/13 PRINT Ver. 1/15 ©2015 AMERICAN INTERNATIONAL INDUSTRIES, INC.
- Page 2 2006-2012 TOYOTA RAV 4 DASH DISASSEMBLY AND RADIO REMOVAL INSTRUCTIONS 1. Starting from the bottom edges, carefully pry outward the trim panels from the left and right sides of the radio and climate controls, disconnect the attached harnesses and remove trim panels. 2.
- Page 3 KIT ASSEMBLY INSTRUCTIONS Single ISO Mount Applications 1. Attach the left and right side brackets to the main bracket. See Figure B. 2. Insert pocket (part # POC994) into lower section of the main frame. 3. Attach left and right side brackets to the rear of the pocket using screws supplied. 4.
- Page 4 KIT ASSEMBLY INSTRUCTIONS Double DIN Mount Applications NOTE: Remove shaded pocket support Tabs on left and right bracket (See Fig. C below). 1. Cut and remove center rib from main frame and file edges smooth. 2. Attach the left and right side brackets to the main frame (See figure C below). 3.
