Enttec E-Streamer Mk2 Quick User Manual

Hide thumbs Also See for E-Streamer Mk2:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Quick User Manual, Manual

Box Contents

•
E-Streamer Mk2 (pn: 70710 or 70711)
•
Straight connect Ethernet lead (pn:79102)
•
IEC power cord (country dependent plug)
Safety
•
This unit is intended for indoor use only.
•
Do not expose this device to rain and moisture
•
Do not use this device near water.
•
Do not block any ventilation apertures on this
device.
•
Ensure proper earth connections
•
Always be sure to mount this unit in an area that
will allow proper ventilation. Allow about 6" (20
cm) between this device and a wall.
•
Do not install this device near heat sources such
as heaters, stoves, monitors, amplifiers, dim-
mers, luminaries or any other equipment that
produces heat.
•
Power-supply cords should be routed so that
they are not likely to be walked on or pinched
by protective cabinets, enclosures or cases.
•
Use only attachments, accessories or fixings
specified by ENTTEC.
20 December 2018
E-Streamer Mk2
mfile ID: 4838403
E-Streamer Quick User Manual
•
Unplug this device from the mains supply and ex-
ternal data links during electrical storms or when
the device is not used for a long time.
•
Do not remove the cover, there are no user service-
able components inside.

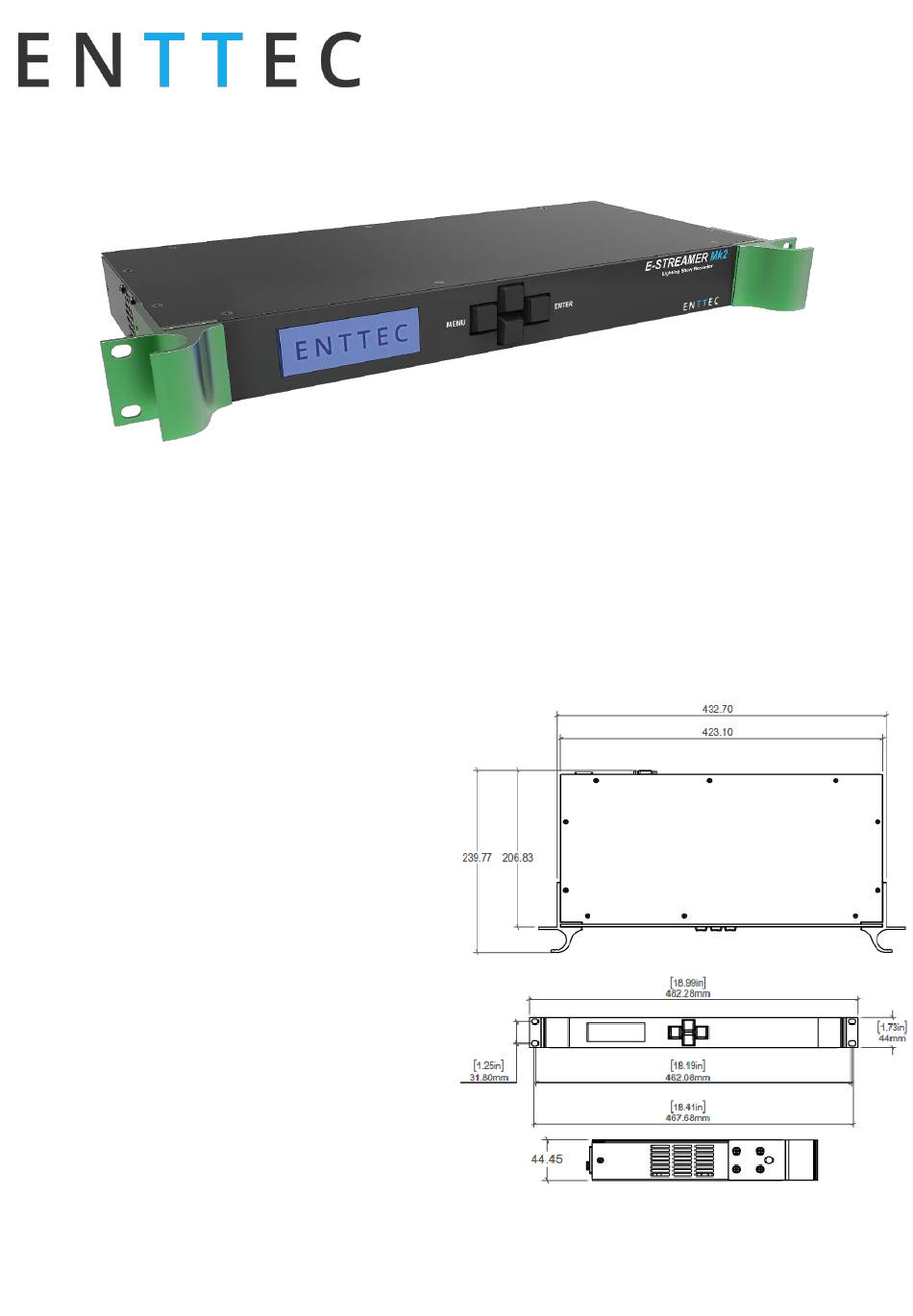

Physical Dimensions
For latest version visit:
www.enttec.com
Page|1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E-Streamer Mk2 and is the answer not in the manual?

Questions and answers

Related Manuals for Enttec E-Streamer Mk2

Summary of Contents for Enttec E-Streamer Mk2

  • Page 1: Box Contents

    E-Streamer Mk2 Box Contents • • E-Streamer Mk2 (pn: 70710 or 70711) Unplug this device from the mains supply and ex- • ternal data links during electrical storms or when Straight connect Ethernet lead (pn:79102) the device is not used for a long time.

  • Page 2: Physical Features

    Control and configuration using inbuilt web in- good condition before plugging it in to power. terface 2. The E-Streamer Mk2 occupies a single unit (1U) in a • Show replay can be triggered on: 19-inch rack. You may attach it to the rack either at o Power up this time or later after configuring it, if desired.

  • Page 3: Selection Menu

    NMU can be downloaded from Selection Menu our website (www.enttec.com) 1-Show Select 2. E-Streamer Mk2 can now be configured using a 2-Setup web browser and the IP address displayed on 3-Status 4-Restart the LCD Menu. More details on different web pages will be covered later.

  • Page 4: Usb Backup/Restore

    Factory Reset 2-NO Activating Factory Reset, leads to a simple prompt Once confirmed, E-Streamer Mk2 will stop all DMX out- confirming your action. Once confirmed, the Factory put and restart the system. While rebooting the LCD Reset will take a minute to run. It will end up delet- screen will change between a couple of screens, and ing all your shows &...

  • Page 5: Web Interface

    The Save button will save the Show with selected op- tions, and streams. The E-Streamer Mk2 is configured, controlled and Show Options programmed through a web browser interface run- ning on a computer system located on the same Lo-...

  • Page 6: Data Streams

    (hexadecimal)] each containing 16 Universes [0 - F of DMX Output Ports 4 (only on PN 70711) (hexadecimal)]. An E-Streamer Mk2 show may have up to 64 data streams (maximum streams determined by universe li- Recording Control Channel A single DMX channel can be used as an override cense on the unit), each of which can contain a contin- control for the recording of a Show.

  • Page 7: Show Control

    Event Defining Events are crucial to scheduling shows using Show Control the E-Streamer MK2. Events allow the user to define various conditions, specify start & stop times and pro- vide the ability to create complex events that can be scheduled and controlled as needed.

  • Page 8: Backup / Restore

    USB port or export show option. and 45 minutes past the hour on Tuesdays be- The Settings Restore allows the E-Streamer Mk2 to be tween sunset and 23:00 - only during the months restored to the saved settings. Upload the backup file of August and November.

  • Page 9: Firmware Update

    Backup + Restore page. The feature ena- The Firmware Update function provides a facility to bles the export and import of recorded shows, using update the firmware that runs the E-Streamer Mk2. To the web interface. obtain the latest revision of the firmware, visit the E- The show files are exported with an.

  • Page 10: Specifications

    240 mm /9.5 inches ears Width 70710 E-Streamer MK2 (inc. 8 universe license) Without 207 mm /8.2 inches 70711 E-Streamer MK2 + DMX Ports (inc. 4 universe rack ears license) Height 32 mm/1.26 inches 70721 1 Universe license for E-Streamer MK2 Certification...
  • Page 11 GMT offset and coordi- If the screen does not show the LCD Menu, or is nates, and save that on the Settings page under Geo- blank, the E-Streamer Mk2 needs to be reset by an location. ENTTEC support technician, please contact support for help.
  • Page 12 Doesn't output DMX (License) Your E-Streamer Mk2 must be equipped with DMX Ports (License) to output DMX streams Please ensure that the show(s) being played have DMX streams correctly configured.
