BINMASTER Smart Sonic Instruction Manual

Ultrasonic transmitters

Hide thumbs

Table Of Contents

Smart Sonic

Ultrasonic Transmitters

Instruction Manual

925-0156 Rev 1

Table of Contents

Need help?

Do you have a question about the Smart Sonic and is the answer not in the manual?

Questions and answers

Summary of Contents for BINMASTER Smart Sonic

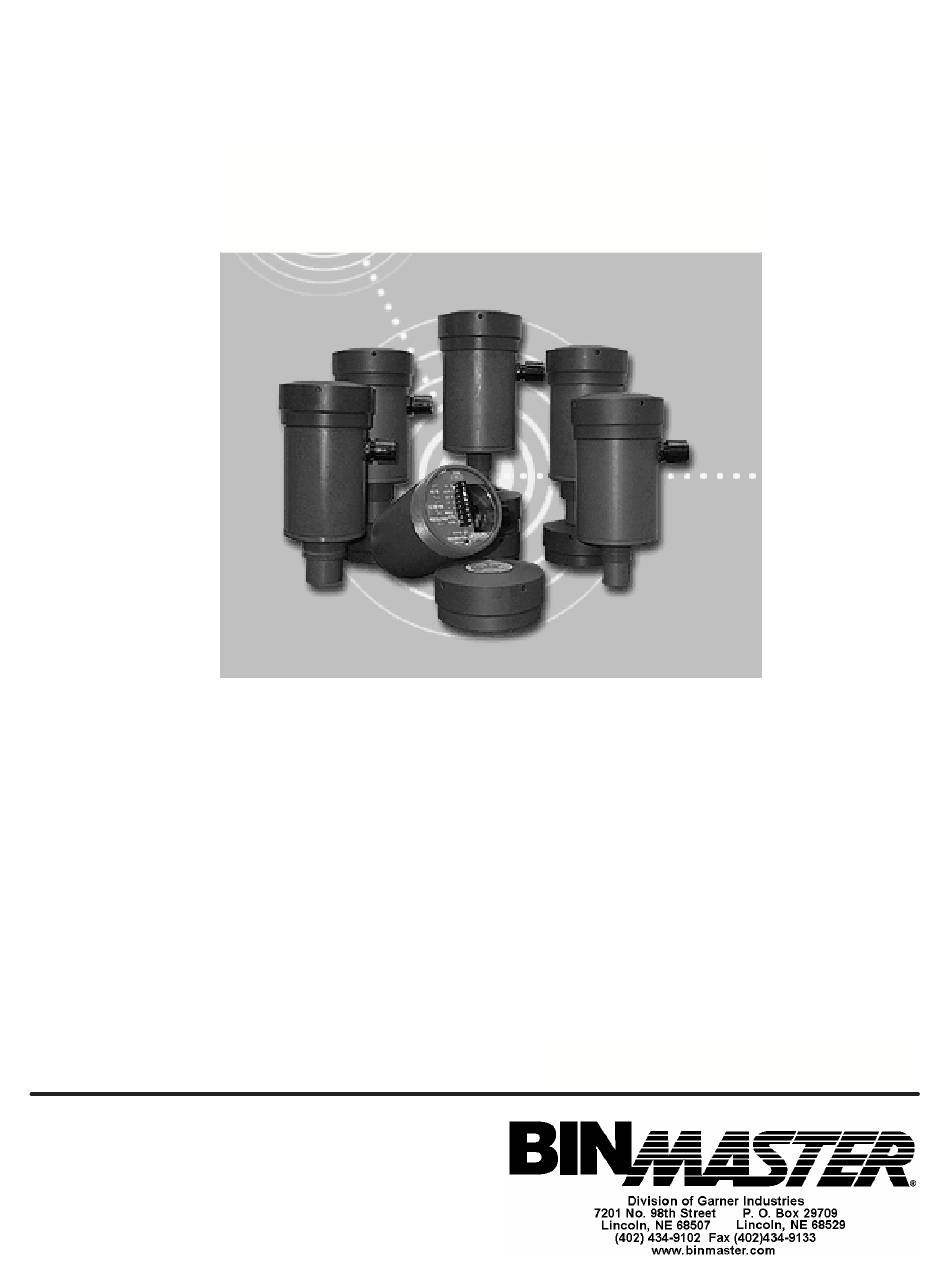

Page 1 Smart Sonic Ultrasonic Transmitters Instruction Manual 925-0156 Rev 1...
Page 2: Table Of Contents
SmartSonic 2 Table of Contents Contact Information……...…………………………….……..3 General Specifications……………………………………….4 Operation………………………………………………………5 Wiring…………………………………………………………..6 Calibration………………………………….…………………7 Mounting………………… …..……………………………….8 Technical Specifications……………………………………..9...
Page 3: Contact Information
8:00 am — 5:00 pm CST (402) 434-9102 Voice (402) 434– 9133 www.binmaster.com Division of Garner Industries PO Box 29709 / Lincoln, NE 68529 / 7201 North 98th St. / Lincoln, NE 68507 Phone: 800-278-4241 or 402-434-9102 / Fax: 402-434-9133...
Page 4: General Specifications
SmartSonic 4 General Specifications Conduit Entry: 1/2” NPT (PVC conduit only) Enclosure: PVC-94VO Enclosure Rating: NEMA 4X(IP65) Temperature: -40 to +140° F (-40 to 60° C) Pressure: 1 bar Approvals: Entela—CSA/UL Accuracy: +/- 0.25% of maximum range Beam Angle: 6°-12° conical at –3dB Loss of Echo: Hold 30 seconds, 22 mA Temperature Compensation:...
Page 5: Operation
SmartSonic 5 Operation The new SmartSonic transmitter features high efficiency, narrow beam design technology using a wide frequency bandwidth to enhance operation in difficult applications. The transmitter performs particularly well in harsh environments where vessel temperatures vary. SmartSonic uses smart signal processing to eliminate unwanted echoes from tank walls, standpipes, and other tank structures that often cause error readings by other ultrasonic devices.
Page 6: Wiring
SmartSonic 6 Interconnecting Wire Diagram 1/2” Conduit NPT Conduit Connection DC Power input Note—TB #7 is Connected to TB #4 Control Panel Fastening Screw Terminal Block NOTE: When installing the SmartSonic in locations where moisture or moist air could Status LED enter the enclosure through the electrical conduit, use a duct seal compound to seal Calibration...
Page 7: Calibration
SmartSonic 7 2 Wire DC 4/20 mA Loop Powered Calibration—4-20 or 20-4 mA Output Calibration Pushbutton/ LED Indicator for 4— 20 mA (750 ohm max.) Output Full—Calibration 20 mA or 4 mA (set near target) Calibration mode LED color Green Push button Deadzone FULL...
Page 8: Mounting
SmartSonic 8 Mounting Mounting: Mounting the SmartSonic Transmitter is critical to the proper operation of the unit. The unit can be directly mounted by simply threading the sensor directly into a metal or plastic mounting flange. If an extended standpipe is used for mounting, please consult the factory for assistance.
Page 9: Technical Specifications
SmartSonic 9 Technical Specifications 7.3” Ø 4” Ø Threaded Access Cover Electronic Enclosure ‘A’ ‘A’ 1/2” NPT Conduit Entry 6.2” 6.625” 3” NPT Thread Located on Enclosure 1” 6” NPT Thread ‘B’ DIA. ‘C’ DIA. ‘C’ Models SS300/400-45U,52U,70U,80U,81U,and 148U Model SS300/400-25U Only MODEL RANGE RESOLUTION...
Page 10 2 Wire - 4/20mA Loop Powered 4” Ø Threaded Access Cover Electronic Enclosure ‘A’ 1/2” NPT Conduit Entry 4.75” 3” NPT Thread Located on Enclosure 1” ‘B’ DIA. ‘C’ Models SS200-70U,80U,81U,and 148U MODEL RANGE RESOLUTION OPERATING MOUNTING DIMENSION DIMENSION DIMENSION FREQUENCY ‘A’...
