ULTRASONIC ALGAE CONTROL
LG SOUND BV Platinastraat 5,7, 2718 SZ Zoetermeer, The Netherlands
USER MANUAL
LG SONIC
LG SONIC®
MODEL
e-Line
e-Line
LG SOUND
Platinastraat 5,7
2718 SZ Zoetermeer
www.lgsonic.com
AQUATIC TECHNOLOGIES
T 0409 180 707
41 Yazaki Way, Carrum Downs,
Victoria Australia 3201
www.lgsonic.com
www.algae-control.com.au
Advertisement
Table of Contents
Summary of Contents for LG sonic e-Line
- Page 1 LG SOUND Platinastraat 5,7 2718 SZ Zoetermeer www.lgsonic.com USER MANUAL LG SONIC LG SONIC® ULTRASONIC ALGAE CONTROL MODEL e-Line e-Line LG SOUND Platinastraat 5,7 2718 SZ Zoetermeer www.lgsonic.com LG SOUND BV Platinastraat 5,7, 2718 SZ Zoetermeer, The Netherlands www.lgsonic.com AQUATIC TECHNOLOGIES...
-
Page 2: Table Of Contents
1 Table of Contents Introduction............. 4 Safety instructions ........Components included ........Installation ............ Installation of the electronic box..6 Installation of the e-transmitters... 7 Installation of the float ..... Installation of two units ......8 Installation examples of one unit ..9 Installation examples of two units . -
Page 3: Introduction

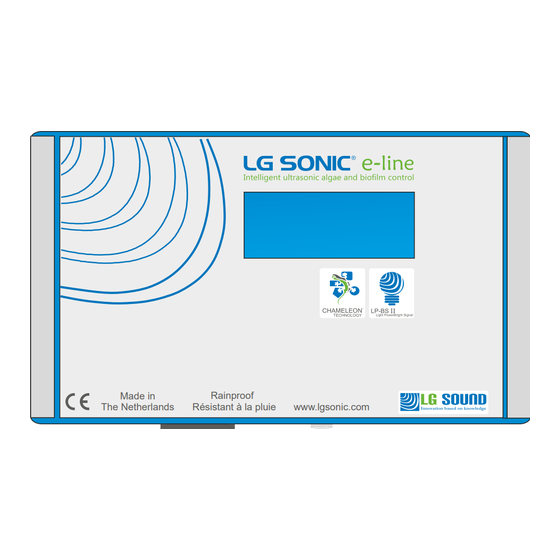

Consult a qualified electrician. WARNING: Risk of Electric Shock. Mount the unit at a height greater than 1 foot from the ground surface. Ensure the power outlet used for the LG Sonic® has a ground fault circuit interrupter. LG SONIC Ÿ... - Page 4 3 Components INSTALL IN A DRY SAFE PLACE INSTALL IN WATER Rainproof Made in The Netherlands Résistant à la pluie www.lgsonic.com DC INPUT Electronic box (E-box) User manual Screw (4p) Wiper unit Transmitter cable Transmitter power supply extension cord Power cable (Lead) (Optional part, purchased separately) 50- or 100-foot (15- or 30-metres) Transmitter unit...
-
Page 5: Installation
4 Installation Please always check if the voltage on the sticker of the electronic box matches with the plug type and your electricity network before installation. Please contact your dealer immediately if this is not the case. Installation of the electronic box The electronic box should be attached to a wall, with the cables facing downwards. -
Page 6: Installation Of The E-Transmitters
4.2 Installation of the E-Transmitter The transducer transforms the electrical signals produced by the electronic box into ultrasonic sound signals. These signals are inaudible. The transducer is a very sensitive instrument that needs to be handled with the greatest care. The ultrasonic sound waves are issued by the transducer in a 180 degrees spread from the front of the machine. -
Page 7: Installation Of The Float
4.3 Installation of the float All the LG Sonic products are provided with a float. This float ensures that the transducer always remains in a position of about 20 cm horizontally below water surface. In this way the sound waves will be reflected when they touch the water surface. The... -
Page 8: Installation Examples Of Two Units
4.5 Installation examples top view oval top view circle top view square top view triangle top view narrow side view top view broad rectangle top view broad water tank rectangle L shape /container 4.6 installation examples of two units It is advised to contact your dealer for advice on the use of multiple transmitters. -
Page 9: Activation
The Netherlands Résistant à la pluie www.lgsonic.com 3.Connect the antenna to the e-Box. 4.The LG Sonic is ready for use. It is not necessary to change the program 4.7.1 Explanation of LCD GSM Signal strength (1 to 5) Date & time T1: Transmitter output number 1. -
Page 10: Gsm Activation And Configuration
4.7.2 GSM Activation and Configuration The GSM module has 3 functions: Make sure there is no To change the ultrasonic program of individual pincode on your SIM Card. Ÿ transmitter(s) To request status Make sure there is enough Ÿ To receive error alerts. credit on the SIM Card to Ÿ... -
Page 11: Set The Pincode Of The Device
4.7.3 Set the pincode of the device 1. Press both buttons for 3 seconds to enter the main menu. 2. Select option 2: “SMS Phone Setup” 3. In the next menu select 3: SMS Pin Code 4. The pincode will appear behind the menu. 5. -
Page 12: Change Ultrasonic Program
4.8 Change ultrasonic program The transmitters of the LG Sonic e-Line can be set to a The LG Sonic e-Line LG SONIC specific, preprogrammed ultrasonic program. products are all being send Depending on the model of the e-Box, the LG Sonic e-... -
Page 13: Usage
Usage To operate effectively, the algae control system must be operating LG SONIC LG Sonic® continuously, 24 hours a day. The speed in which the algae are killed will depend on the concentration of algae in your water entity (for example, a lake, reservoir, swimming pool or pond) and the size of your device in relation to the quantity of water. -
Page 14: Troubleshooting
Failure to keep the front of the transducer clean will hinder the ultrasonic waves and ultimately result in reduced effectiveness of your device. LG Sonic® LG SONIC Always disconnect power from the device before cleaning or handling it. -
Page 15: The Algae Are Not Dying
7.3 The algae are not dying 1.Check whether the e-Box is in operation: a.Check the LCD - Check if the LCD is on. - Check if the transmitters are running a program (section 4.7.1). If a transmitter is broken or off, the words “ERROR” or “OFF” are shown on the LCD behind the transmitter number (T1 - T4) - Check If one of the Transmitters shows “OFF”... -
Page 16: Guarantee
The warranty limits itself to material- and construction faults and has a term of TWO YEARS for the LG Sonic E-box THREE YEARS for the LG Sonic e- transmitters XXL, XL and Tank after purchase date.
