TracPhone
Cable Grounding Instructions
The following instructions explain how to properly ground the
TracPhone F33 antenna cable.

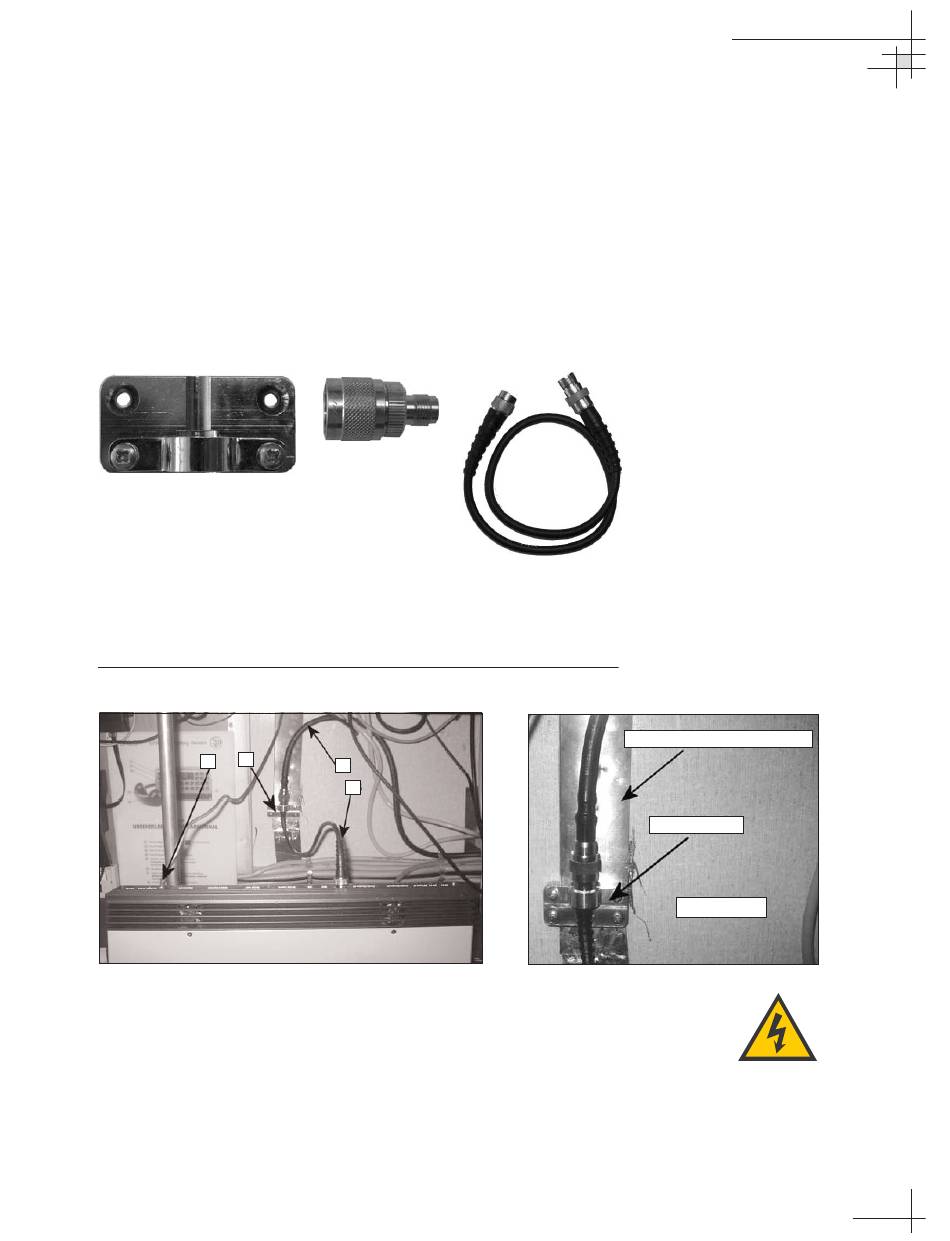

Grounding Kit Contents
The following parts are included with the grounding kit:
Installation Instructions
Refer to Figure 1 and follow the steps below to ground the
antenna cable using the grounding kit.
Figure 1 Antenna Cable Properly Grounded
C
D
1. Disconnect power from the antenna unit.
2. If the antenna cable ("A" in Figure 1) is already connected
to the Below Deck Unit (BDU), disconnect it.
3. Connect the male TNC connector end of the pigtail cable
to the female TNC connector on the BDU (see "B" in
Figure 1). The pigtail cable is only 19.6" (50 cm) long and
must not be extended.
54-0248 Rev. B
®
F33 Antenna
N-to-TNC Adapter
A
B
Pigtail Cable
Copper Foil Common Ground
Grounding Kit
Before servicing the antenna unit,
be sure to disconnect vessel power.
Antenna Cable Grounding Instructions
C, Close-up
1
