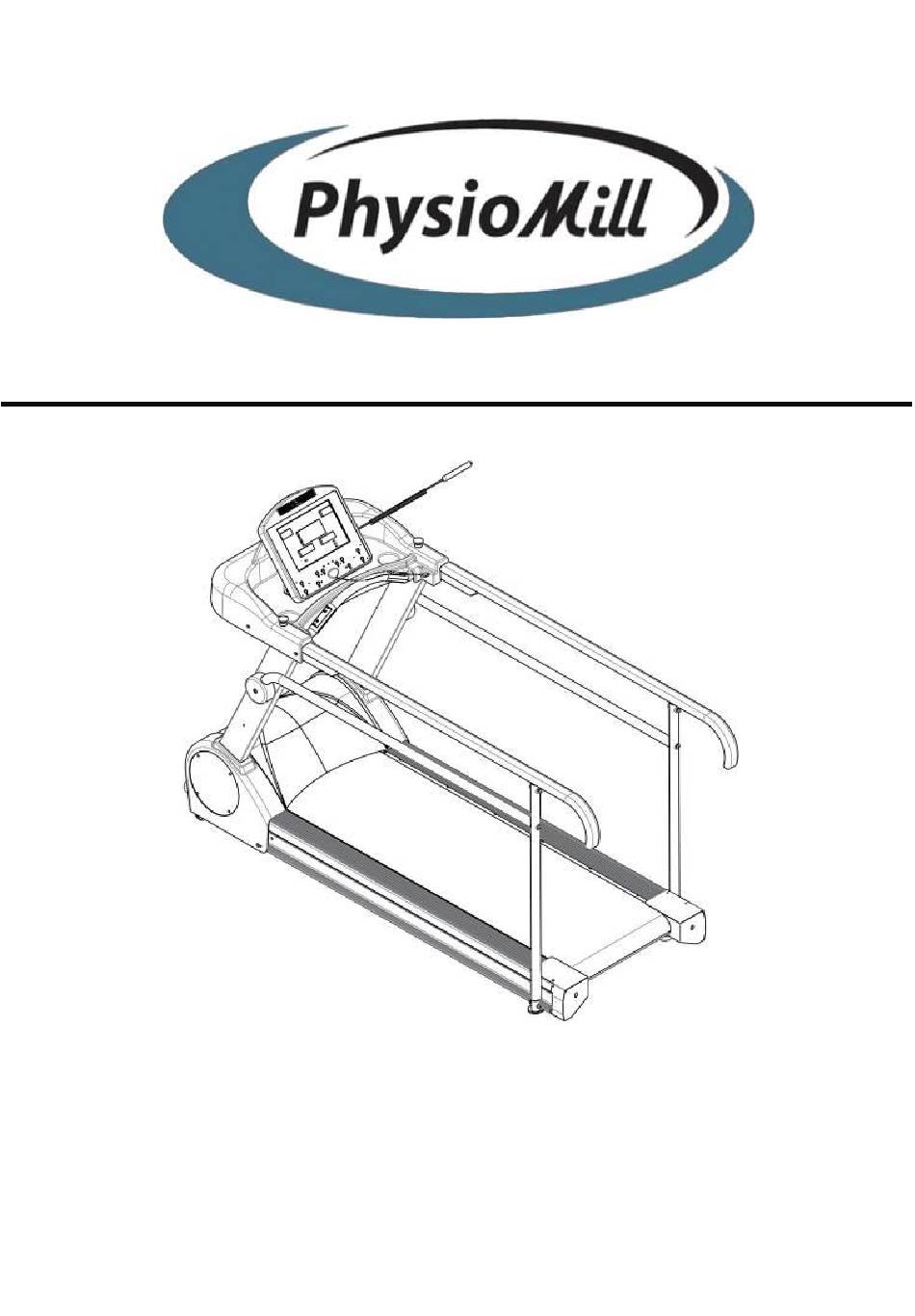

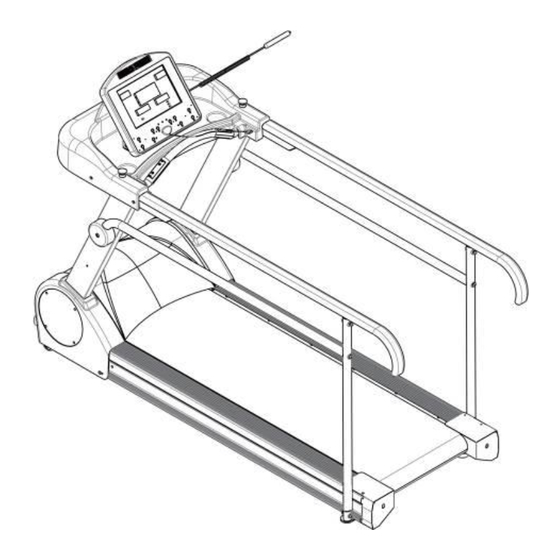

- Page 1 Owner Manual V.2 HealthCare International, Inc. PO Box 1509, Langley, WA 98260 www.HCIFitness.com - sales@hcifitness.com P: (360) 321-7090 or (800) 398-9121...
-
Page 2: Table Of Contents
Table of Contents Safety Precautions ....................2 Warranty Information....................3 Assembly Instructions ....................5 PhysioMill Display Console ..................9 Button Functions ..................... 10 General Maintenance ....................10 Exploded Diagram....................11 Parts List ......................... 12... -
Page 3: Safety Precautions
9. Keep hands and feet away from any moving parts. Do not insert any objects into any openings. 10. Keep clothes, jewelry and loose items away from moving parts. NOTE: MAXIMUM WEIGHT CAPACITY FOR THE PHYSIOMILL IS 500 LBS. (227 KGS) WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM CONSULT YOUR PHYSICIAN. -
Page 4: Warranty Information
Dear Valued Customer, Thank you for your recent purchase of the PhysioMill from Fitness. We believe that you have purchased one of the highest quality affordable rehabilitation treadmills market today. Prior to using your new PhysioMill please review the owner's... - Page 5 SCREW AND TOOL SET Description 065 Mushroom Head Hexagonal Bolt M8*60L 066 Mushroom Head Hexagonal Bolt M8*55L 050 Hexagonal Bolt M8*55L 019 Mushroom Hexagonal Bolt M8*50L 067 Mushroom Head Hexagonal Bolt M8*50L 062 Mushroom Head Hexagonal Bolt M8*20L 059 Mushroom Head Hexagonal Bolt M8*16L 049 Hexagonal Bolt M8*16L 023 Metal screws TP4*16L 036 Cross Screw M5*10L...
-
Page 6: Assembly Instructions
Assembly Instructions Wire Pinch Point: STEP 1: Insert the Upright Posts (6) (7) to the main base, then loosely tighten the Hexagon Head Bolts (19) (62) and Flat Washer (14) to temporarily secure. Do Not Tighten Bolts Completely Until Step 4... - Page 7 Wire Pinch Point: STEP 2: Place Computer Rack (51) on top of Upright poles and loosely screw in the Hexagonal Bolts (49). Take hold of Middle Sensor Cable Wire (78) connect with the Upper Sensor Cable Wire (77) firmly. Do Not Tighten Computer Rack Completely Until Step 4 STEP 3: Loosely connect the Hand Rails (52) to the computer rack with the nut on the top.
- Page 8 STEP 4: Completely tighten the nuts and bolts from Steps 1-3. Start with Step 1 and tighten down the bolts that support the Upright Posts. Then tighten the bolts in Step 2 that hold the computer rack in place. Finally, tighten the nuts and bolts that secure the handrails in Step 3. STEP 5: Place the display rack cover (57) as per drawing.
- Page 9 Before use please read the safety precautions carefully. Periodically retighten screws and bolts as needed. Electrical Connection The PhysioMill needs to be plugged into a standard electrical outlet. The AC adaptor is connected at the front of the unit. The power switch must be on for operation.
-
Page 10: Physiomill Display Console
PhysioMill Display Console Hand-Held Therapy Start / Stop Remote Allows for therapists to start and stop the treadmill while performing hands on rehabilitation. Simply press the button once to pause the session. Then press the button again to resume the treadmill belt. -
Page 11: Button Functions
Button Functions 1. START BUTTON 1.1. Pressing the START button starts the treadmill. 2. STOP BUTTON 2.1. Pressing the STOP button strops the treadmill. 3. PAUSE BUTTON 3.1. Pressing the PAUSE button pauses your session. 4. [+] BUTTON 4.1. Press the [+] button to increase values. 4.2. -
Page 13: Parts List
Parts List Description 001 Main Frame 002 Front Roller 003 Rear Roller 004 Suspension 005 Running Deck 006 Upright Pole(R) 007 Upright Pole(L) 008 Cross Screw M8*30L 009 Nut M8 010 Running Belt with logo 011 Mushroom Head Hexagonal Bolt M8*65L 012 Washer 8*16*1.2T 013 25 tapping Iron plates 014 Washer 8*18*1.5T... -
Page 14: Mushroom Head Hexagonal Bolt M8*60L
Parts List Description 044 Mushroom Head Hexagonal Bolt M8*115L 045 Washer 8*18*2T 046 Nylon Nut M8 047 Mushroom Head Hexagonal Bolt M8*115L 048 Nylon Nut M10*7L 049 Hexagonal Bolt M8*16L 050 Hexagonal Bolt M8*55L 051 Computer Rack 052 Hand Pole - Long type 053 Nylon Nut M8 054 Heart Rate Handle Bar 055 Hexagonal Bolt M8*35L... - Page 16 Pair your PhysioMill with the PhysioGait Dynamic Unweighting System! Over Ground or with a Treadmill! www.PhysioGait.com...
