User Guide

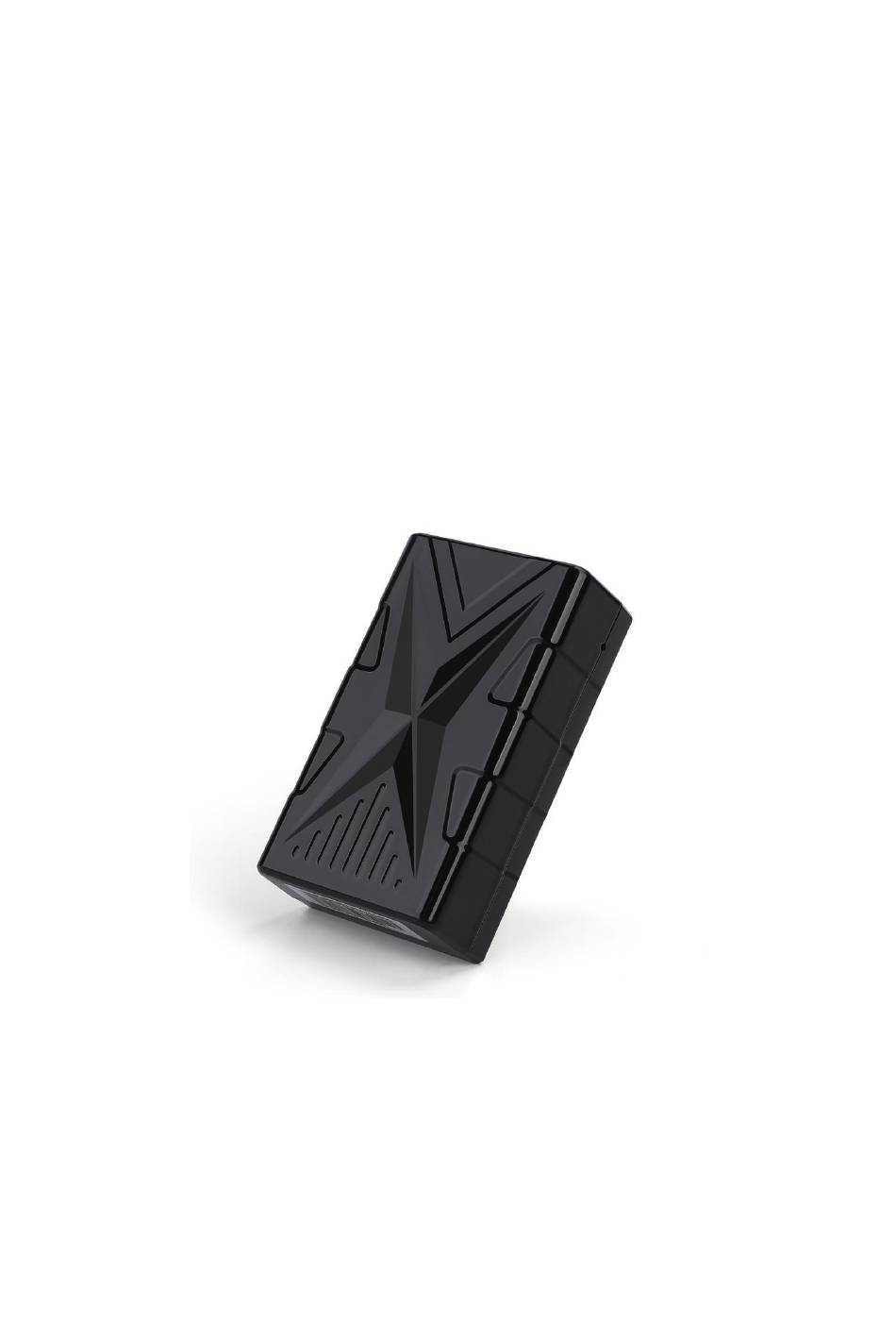

GPS Tracking Device
Product Overview
Thank you for purchasing portable GPS tracker.It ' s for
monitoring and protecting people and property with built-in
U-blox GPS and GSM/GPRS technology.It also with strong
magnet in the rear and 3200mA backup battery.
Accessories:
1X Device
1X USB charge cable
1X User Guide
1X Guarantee Card
Advertisement
Table of Contents
Summary of Contents for Aoli AoliTrack AL01
-
Page 1: User Guide
User Guide GPS Tracking Device Product Overview Thank you for purchasing portable GPS tracker.It ’ s for monitoring and protecting people and property with built-in U-blox GPS and GSM/GPRS technology.It also with strong magnet in the rear and 3200mA backup battery. Accessories: 1X Device 1X USB charge cable... - Page 2 How to Connect Device to the Platform for real time tracking via GPRS Check through PC http://en.aika168.com Web Platform: (International) Account: Device IMEI 123456 Original passwords: Operations of APP in a Cellular Phone Google Store APP Name: AIKA ※please search it in the IOS app store or Google play store or scan the QR code from the web platform ※please login the app as following: Note:Only when there is a certain distance between the phone and...
- Page 3 GSM frequencies 850/900/1800/1900Mhz GPRS Class12,TCP/IP GPS chip UBLOX G7020 Voltage range 3.6-4.2VDC Standby Current ≤2mAh GPS locating time cold start=38s warm start=32s hot start=2s GPS Accuracy ≤ 10m GPS sensitivity -159DB Work environment temperature -40℃+80℃ Work environment humidity 20%-80%RH Battery Chargeable 3.7v 3200mAh SIM Card Installation The SIM card is not included in the package.Any SIM card...
- Page 4 For the first time use,please fully charge the battery for around 2-3 hours with the USB charger.Turn on the device by Inserting Card Please insert the SIM card in the right direction. You will see the indicator light sparkles,then turn off.That means the SIM card inserted successfully.
- Page 5 information. 2.4.2 SMS query latitude and longitude information, any number sends instructions to the device, will reply latitude and longitude to the mobile phone number Instruction format: g1234 Note: When the GPS signal is not good, the received latitude and longitude information is the last place where the latitude and longitude has GPS signal.
- Page 6 SMS command format: 88 When the master control number or a specific number sends this command to the device SIM card number, the device calls back to implement the monitoring function. Note: To implement this function, you need to set the master number and SOS specific number first.
- Page 7 2.14.1 Single working mode (in single sleep mode, the working time can be set in minutes) Instruction format: DW5 Reply: OK After entering for 5 minutes, enter the default working mode. 2.14.2 Automatic working mode (default) If the device does not set any alarm, there is no operation after 5 minutes, and the device enters the sleep state: GPS off, GPRS off.
- Page 8 3.3 Report Statistics Through the software, the logistics enterprise can set the departure time, route point notification, line alarm, area alarm, collision warning, rollover alarm, driving speed, etc. of the monitored goods. We will comprehensively analyze the goods in transit and issue a report. Log in to the platform and click on the report statistics.
