Bronco Heated Grip Installation Manual

Heated Grip
The Installation Guide
V 1.2

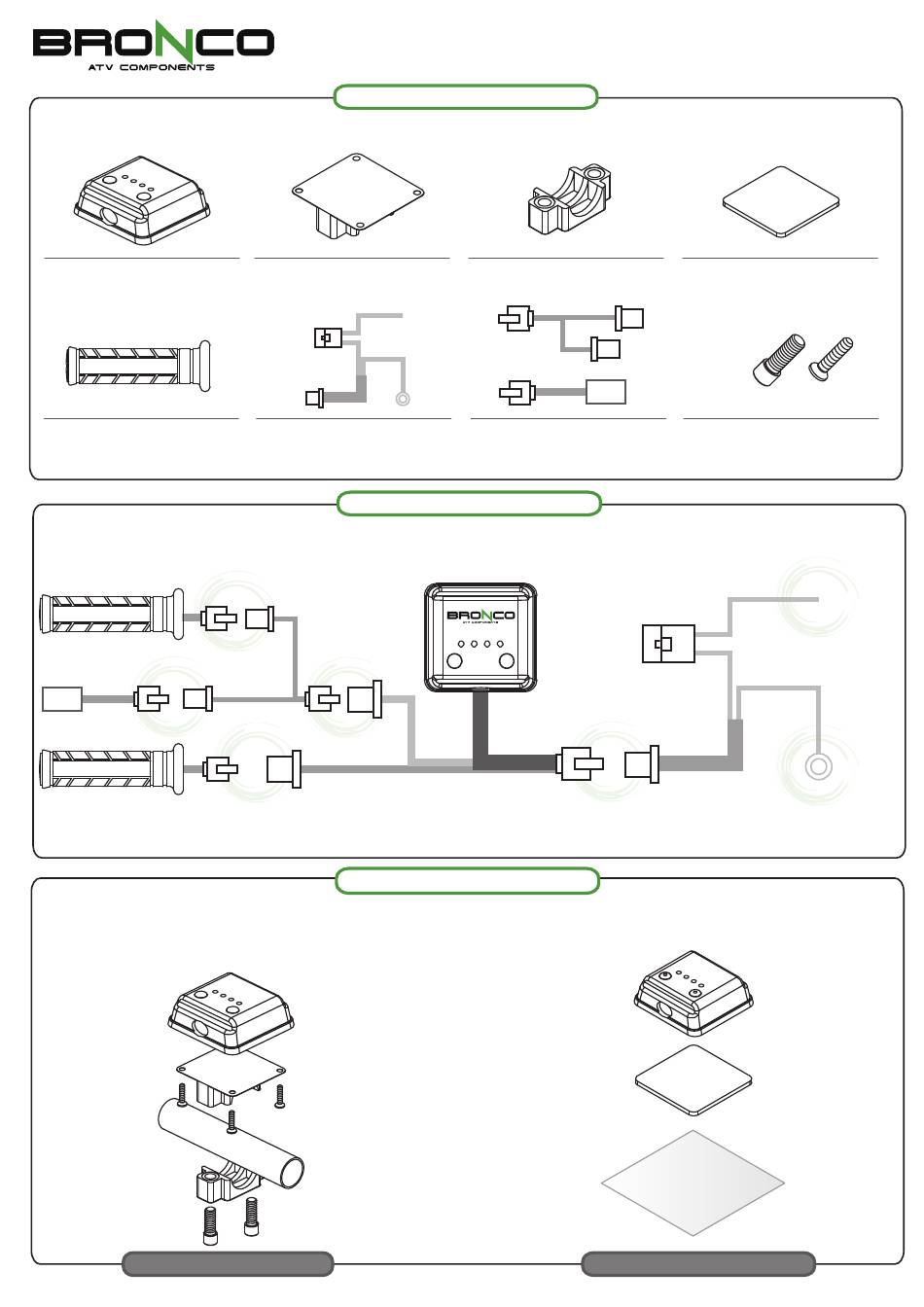

Check all componets
*Please check each component is included in the package before you go through.
Control Box - 1 PC Clamp.Top - 1 PC Clamp.Bot - 1 PC 3M Tape - 1 PC
Thumb Heater - 1 SET
Heat Grip - 1 PAIR ConnectorWire - 1 SET Hex.Screw - 2 PCS
SelfTap.Screw - 4 PCS

Wiring Connect Guide

* Damage can occur due to the wrong installation or incorrect wiring.
If you are unsure please ask your local dealer for assistance.
_Postitive Input DC12 V
<*Fuse>
<Thumb Heater Wire>
<Thumb Heater>
<Connector Wire>
_Ground wire / to vehicle body
* To avoid insufficient voltage regulation or potential damage and to avoid Battery
drain it is beneficial to wire the grips to shut off when power supply to vehicle is turned off.

Control Box Assembling

* Damage can occur due to the wrong or inappropriate assembling of the Control Unit.
If you are unsure please ask your local dealer for assistance.
< OR >
Screw on Handle-Bar Attach to body / surface
Turn back for operation instruction.
