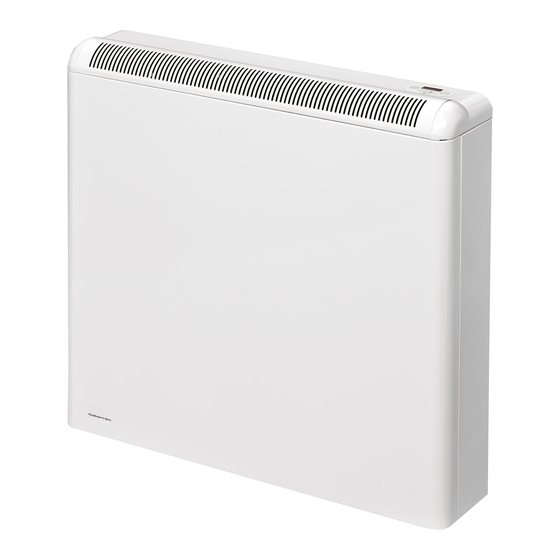

Electric storage heaters. 985 watts, 1310 watts, 1960 watts, 2620 watts
Hide thumbs Also See for Ecombi Eco 158:

Advertisement

Ecombi Electric Storage Heaters

Models
Eco 158 – 985 watts
Eco 208 – 1310 watts
Eco 308 – 1960 watts
Eco 408 – 2620 watts

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ecombi Eco 158 and is the answer not in the manual?

Questions and answers

Summary of Contents for Elnur Ecombi Eco 158

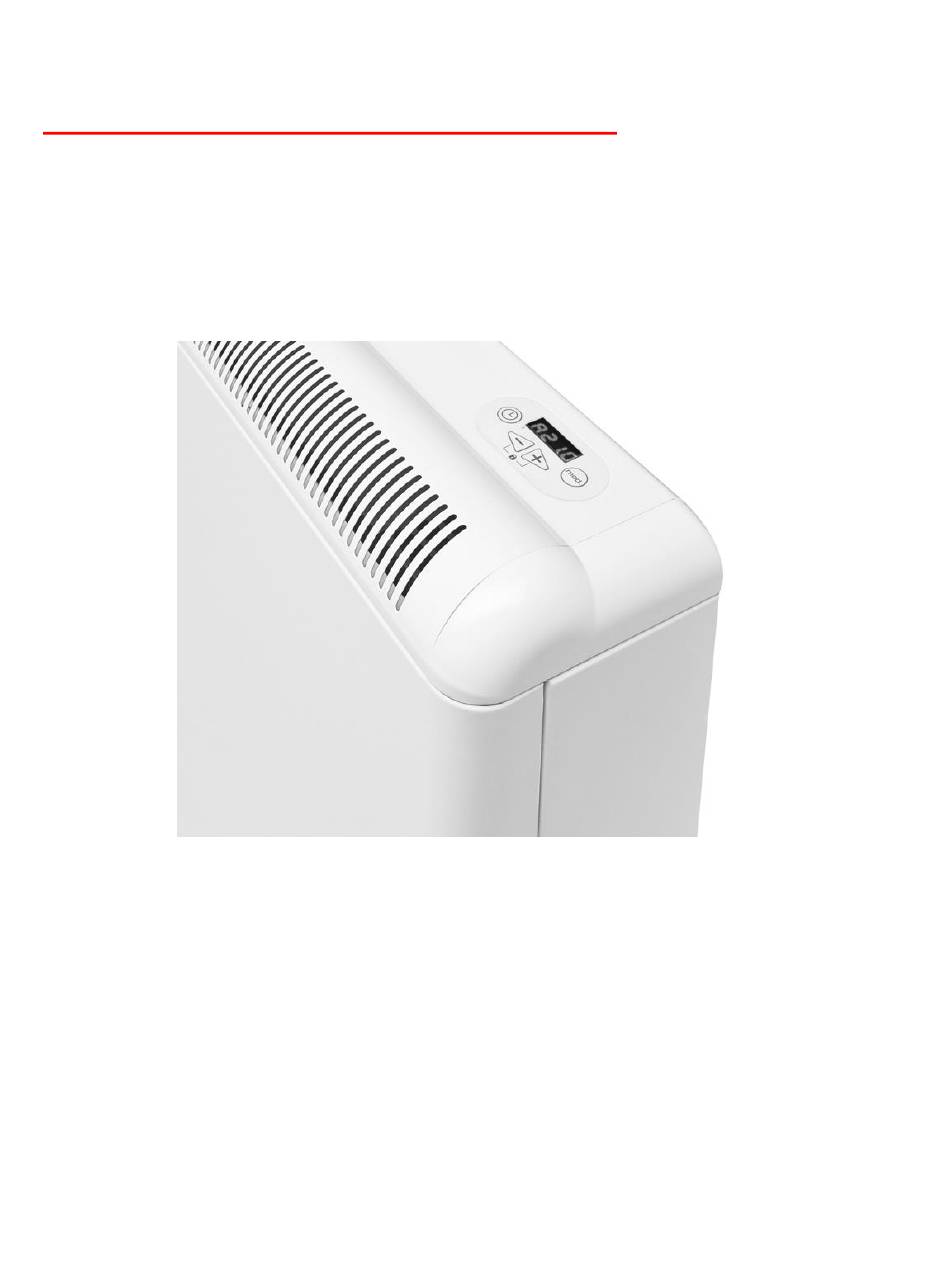

  • Page 1 Ecombi Electric Storage Heaters Models Eco 158 – 985 watts Eco 208 – 1310 watts Eco 308 – 1960 watts Eco 408 – 2620 watts...
  • Page 2 A storage heater stores heat in a core made of ceramic bricks by means of electric elements. Every storage heater loses the heat it has stored to some extent. Ecombi’s operation is based on this. Heat in the air chambers is dependent on the temperature of the brick core and the insulation that surrounds it.
  • Page 3 1.Microtherm insulation 2.Microtherm insulation 3.Ceramic Brick Core 4.Storage element 5.Upper insulation 6. Lower insulation 7. Air Chambers 8. Emitter Element 9.Cold air flow in 10.Warm air flow out 11.Temperature Sensor 12.Control Panel Ecombi Cross Section...
  • Page 4 Heater Display AC 5.0 Storage Mode ( storage elements off ) AC.5.0 Storage Mode ( storage elements on ) Number represents charge level A 21.0 Automatic Mode ( emitter off ) A 21.0. Automatic Mode ( emitter on ) Number represents set point in degrees C A 18.0 Eco Period 3 degree setback Sensor...
  • Page 5 Warranty Ecombi models Eco158, Eco208, Eco308, Eco408 are included under this warranty for a period of 5 years on parts and 1 year on labour from the date of installation. The invoice is your proof of installation date. This warranty is void if equipment has been moved from the original install location or if the product is subjected to use other than what it was intended for.

This manual is also suitable for:

Ecombi eco 408Ecombi eco 208Ecombi eco 308
