  • Page 1 ® Flow Gauge User’s Manual...

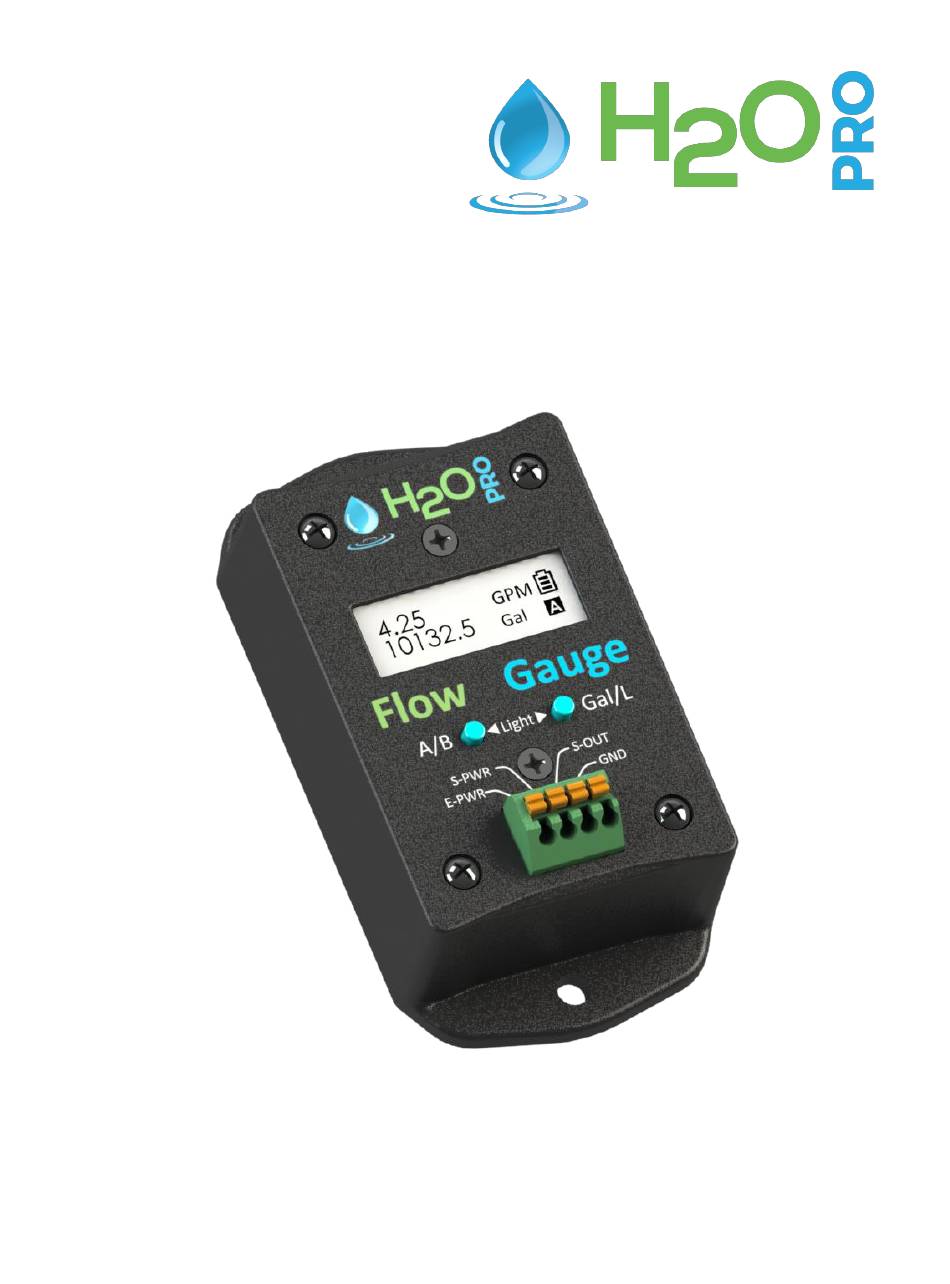

  • Page 2 Welcome to H2OPro – Flow Gauge The H2OPro-Flow Gauge is a compact digital readout for H2OPro flow meters. Flow rate and volume can be displayed in either gallons or liters with two independent volume totalizers. The unit can be powered internally by two AA batteries or by an external +4 to +24VDC power supply.

  • Page 3: Flow Meter Connection

    Flow Meter Connection  H2OPro 3-Wire and 2-Wire Flow Meters The H2OPro 3-wire flow meters connect to the H2OPro Flow Gauge as shown. The H2OPro Flow Meter data sheets can be accessed at www.H2OProTech.com. H2OPro Description H2OPro 3-Wire Flow Meter...
  • Page 4  External Power The H2OPro Flow Gauge can use an external power supply connected to the E-PWR and GND wire connections. The power supply should be between +4VDC and +24VDC. The external power can be used with or without the batteries installed. When the external power supply is used the batteries will not supply power, however they will power the system if the external power supply is disconnected or fails.

  • Page 5: Change History

    H2OPro Power Supply Flow Gauge E-PWR +4 to +24 VDC Common Change History Rev. 1 August 29, 2018 Initial release H2OPro Flow Gauge User Manual- © Hot Socket, LLC www.H2OProTech.com...
