CPC 210-2006 Installation Instructions

®
C O M P U T E R P R O C E S S C O N T R O L S
Installation Instructions: Wall-Mount
The Wall-Mount Dewpoint Probe (P/N 210-2006) measures dewpoint for indoor applications such as
anti-sweat heater control and HVAC dehumidification. The sensor's linear 0-5VDC output makes the
sensor compatible with the E2 site controller and all legacy CPC site control products that use MultiFlex
and 16AI input boards.

Specifications

Property
Operating Temperature
Storage Temperature
Supply Voltage
Current consumption

Mounting

Mount the dewpoint probe enclosure against a flat surface (such as a wall or riser) or junction box.
Remove the front cover, and remove the two screws that attach the sensor's circuit board to the rear
mounting plate (Figure 2). Attach the mounting plate to the mounting surface (Figure 3), then reattach
the circuit board and snap the cover back in place.
1.3"
(33 mm)
DEWPOINT ENCLOSURE DIMENSIONS
(WITH COVER ATTACHED)

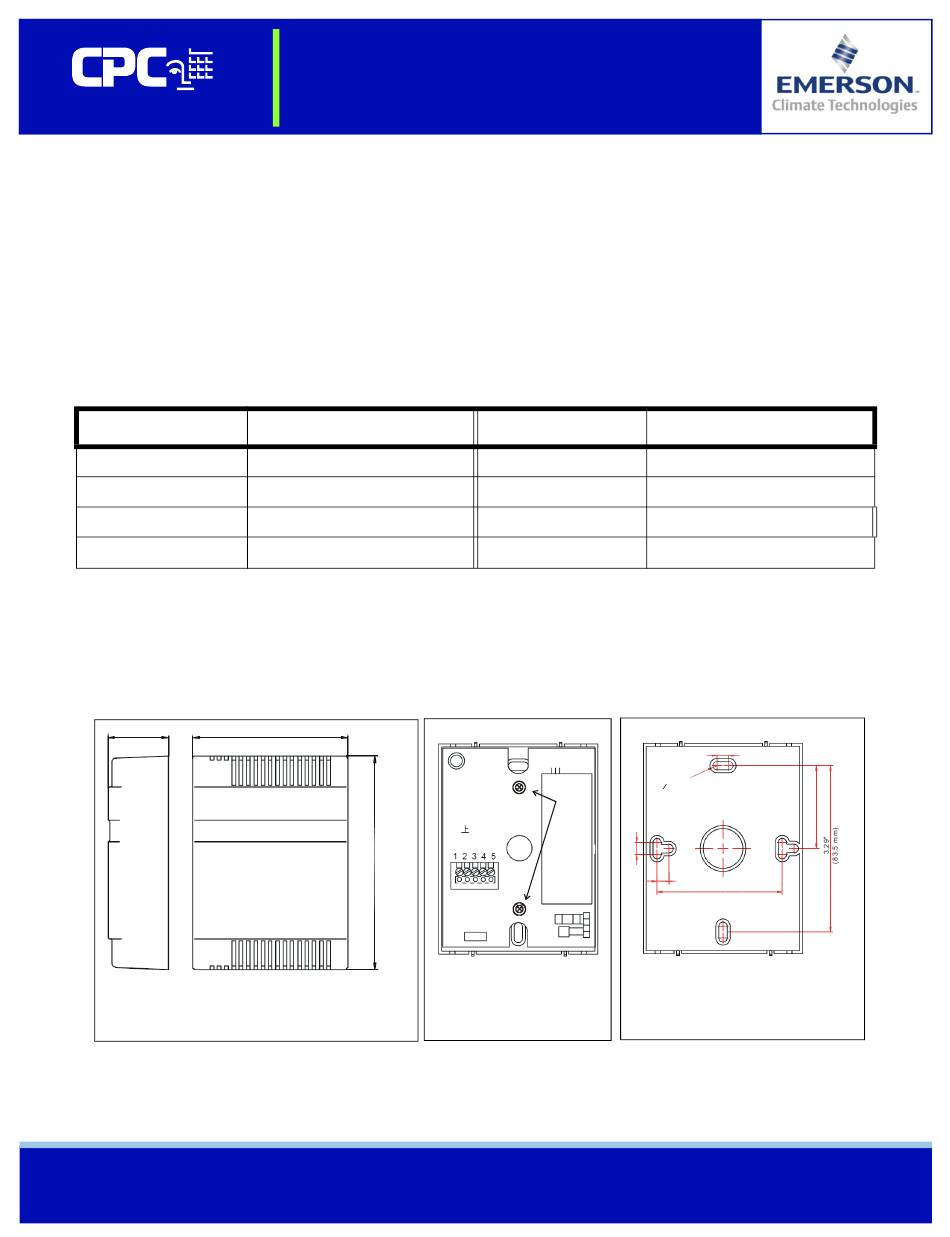

Figure 1 - Enclosure Dimensions
Document Part # 026-4824 Rev 0 5/8/2007
©2007 Emerson Climate Technologies Retail Solutions, Inc. This document may be photocopied for personal use.
Visit our website at http://www.emersonretailsolutions.com/ for the latest technical documentation and updates.
technical bulletin
Dewpoint Probe (210-2006)
Description/Value
-5°C — 55°C (-23°F — 131°F)
-40°C — 80°C (-40°F — 176°F)
12-35VDC or 24VAC
12mA, maximum
3.35"
(85 mm)
4.33"
(110 mm)
Property
Relative Humidity Range
Accuracy
Output Voltage
External Load
REMOVE
SCREWS
Figure 2 - Circuit Board
Description/Value
0-95% RH
+/- 1.2°C (+/- 3.6°F)
0-5VDC
R min. 10kΩ
L
0.23" (6 mm)
O0.16" (4.2mm)
0.23" (6 mm)
0.23" (6 mm)
2.49"
(63.3 mm)
Figure 3 - Mounting Plate Dimensions
Page 1 of 2
