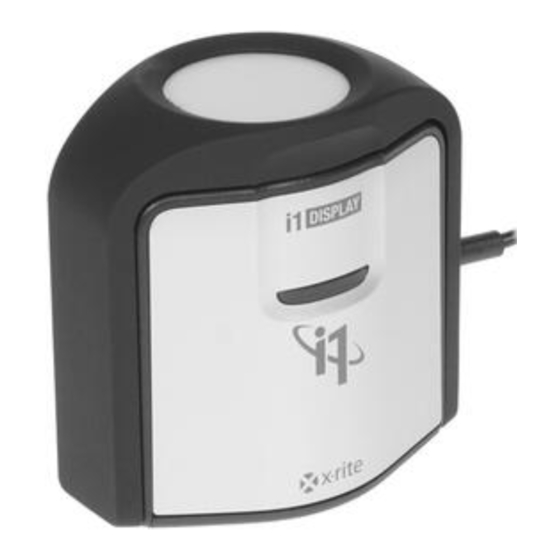

- Page 1 Setup Guide X-Rite i1Display Retail and OEM Rev. 1.2...
- Page 2 CCFL, LED, plasma, and also front and rear projectors. Renowned for its low light reading ability and its speed, the X-Rite i1 Display is a good value for those on a budget. Meter Diffuser The i1 Display includes an attached white disk diffuser for use when taking ambient light measurements or measuring direct light sources such as a projector in direct view mode.
- Page 3 CalMAN Setup Guide: X-Rite i1DisplaY Figure 1. i1 Display tripod mount. The i1 Display should be placed along the line of sight from the main/central viewing location, pointed at the center of the projector screen. In other words, the i1 Display should measure the screen from the same angle that the screen is normally viewed.
- Page 4 CalMAN Setup Guide: X-Rite i1DisplaY CalMAN Connection Procedure 1. Plug the i1 Display into a USB port. The built-in Windows HID driver will be installed automatically. 2. On the Meter Settings page, click Find Meter. 3. On the Find Meters popup dialog: Leave Com Port set to default.
- Page 5 CalMAN Setup Guide: X-Rite i1DisplaY 0.4 Seconds 0.5 Seconds 0.6 Seconds 0.7 Seconds 0.8 Seconds 0.9 Seconds 1 Second (default) 1.25 Seconds 1.5 Seconds 2 Seconds Low Light Handler When enabled, the low light handler averages multiple meter samples per measurement, when measuring light levels below the specified Low Light Trigger level.
- Page 6 CalMAN Setup Guide: X-Rite i1DisplaY About / Contact About Portrait Displays Portrait Displays, Inc., since 1993, is a leading application software provider (ASP) for PC, smartphone, and tablet displays. The Portrait Displays team now includes SpectraCal, the world’s leading provider of video display calibration software.
