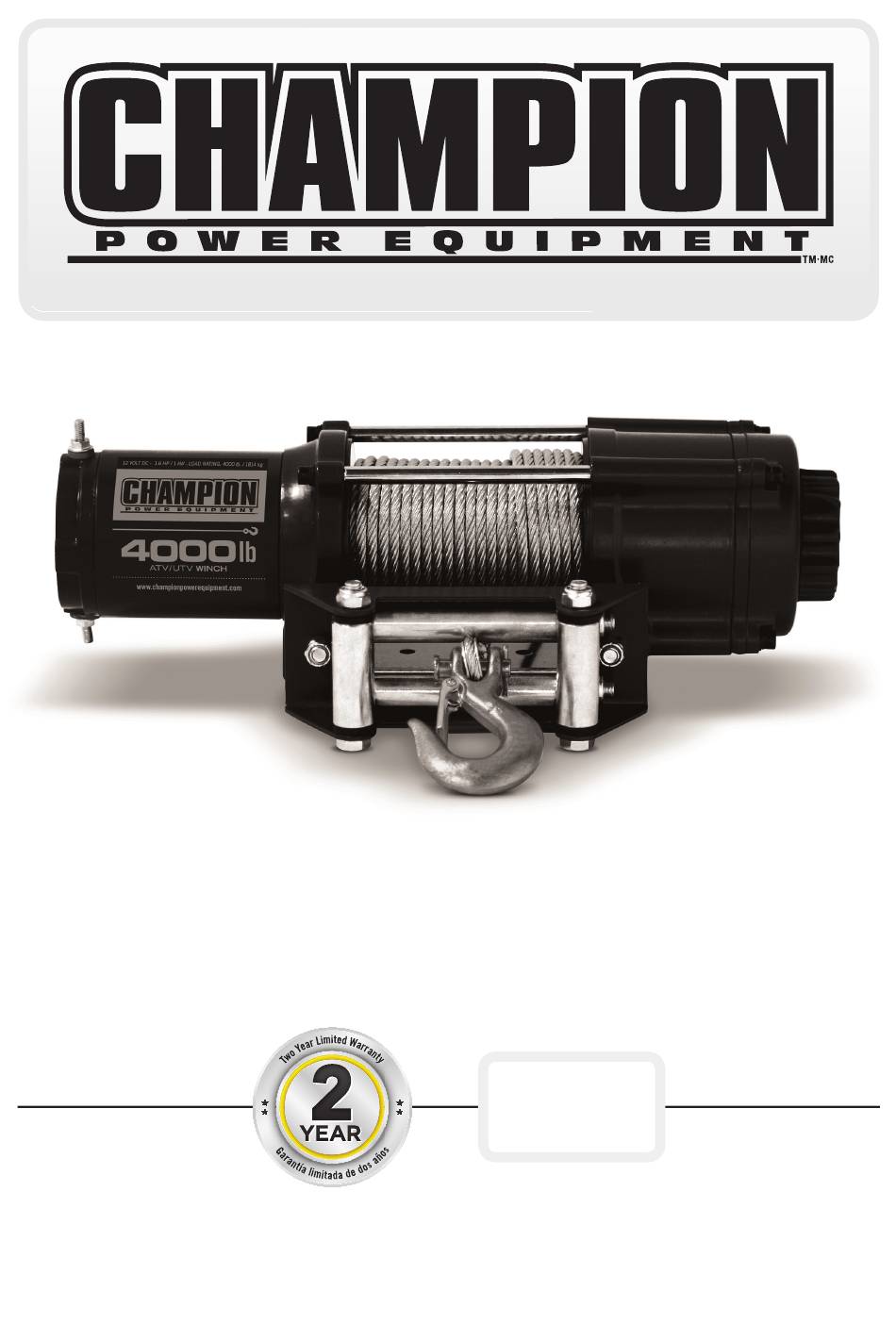

OWNER'S MANUAL & OPERATING INSTRUCTIONS
4000 lb.
ATV/UTV Winch Kit
MODEL NUMBER
14001
12039 Smith Ave.
SAVE THESE INSTRUCTIONS
Santa Fe Springs CA 90670
Important Safety Instructions
MADE IN CHINA
USA / 1-877-338-0999
are included in this manual.
REV 14001-20180821
www.championpowerequipment.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 14001 and is the answer not in the manual?

Questions and answers

Summary of Contents for Champion Power Equipment 14001

  • Page 1 OWNER’S MANUAL & OPERATING INSTRUCTIONS 4000 lb. ATV/UTV Winch Kit MODEL NUMBER 14001 12039 Smith Ave. SAVE THESE INSTRUCTIONS Santa Fe Springs CA 90670 Important Safety Instructions MADE IN CHINA USA / 1-877-338-0999 are included in this manual. REV 14001-20180821 www.championpowerequipment.com...
  • Page 2 Have questions or need assistance? Do not return this product to the store! WE ARE HERE TO HELP! Visit our website: www.championpowerequipment.com for more info: • Product Info & Updates • Tech Bulletins • Frequently Asked • Product Registration Questions –...
  • Page 3: Table Of Contents

    14001 4000 lb. ATV/UTV Wirelss Winch Kit TABLE OF CONTENTS .........
  • Page 4: Introduction

    INTRODUCTION Introduction Accessories Congratulations on your purchase of a Champion Champion Power Equipment manufactures and Power Equipment winch. CPE designs and builds sells accessories designed to help you get the winches to strict specifications. With proper use most from your purchase. To find out more about and maintenance, this winch will bring years of our covers, tree savers, hooks, fairleads, etc.,...
  • Page 5: Manual Conventions

    14001 ENGLISH MANUAL CONVENTIONS This manual uses the following symbols to help differentiate between different kinds of information. The safety symbol is used with a key word to alert you to potential hazards in operating and owning power equipment. Follow all safety messages to avoid or reduce the risk of serious injury or death.
  • Page 6: Safety Rules

    ENGLISH 14001 SAFETY RULES WARNING WARNING Read this manual thoroughly before operating Do not use the winch to secure or hold a your winch. Failure to follow instructions could vehicle for a long period of time. Do not use result in serious injury or death.
  • Page 7 14001 ENGLISH SAFETY RULES WARNING CAUTION When re-spooling the cable, ensure that the Duration of winching pulls should be kept as cable spools in the under-wind position with short as possible. the cable entering the drum from the bottom, If the motor becomes uncomfortably hot to not the top.
  • Page 8: Controls And Features

    ENGLISH 14001 CONTROLS AND FEATURES Read this owner’s manual before operating your winch. Familiarize yourself with the location and function of the controls and features. Save this manual for future reference. Winch Motor – 1.4 HP 12V DC motor provides Roller Fairlead –...
  • Page 9: Assembly

    14001 ENGLISH ASSEMBLY Assembling the Winch Assembling the Winch Cont’d. This CPE 4000 lb. (1814 kg) winch is designed NOTE with a bolt pattern that is standard in this class of winch. Many winch mounting kits are available The type of vehicle to which the winch and...
  • Page 10: Wiring The Winch

    ENGLISH 14001 ASSEMBLY Wiring the Winch Wiring the Winch Cont’d. 7. Once all wiring is connected to the contactor/ CAUTION solenoid it can then be mounted using the supplied M6 hardware. NEVER route electrical cables across any 8. Tighten the contactor/solenoid terminal nuts.
  • Page 11: Wiring Diagram

    14001 ENGLISH ASSEMBLY Wiring Diagram Negative (–) Blue Yellow Positive (+) Black Negative (–) Positive (+) To Switch And Remote Wiring (See Below) Switch Wiring Diagram Green Black Ignition Wire...
  • Page 12: Operation

    Self Recovery Locate a suitable anchor such as a strong tree trunk Your 14001 winch is rated at a 4000 lb. capacity or boulder. Always use a sling as an anchor point. in first layer (max) when spooling the first rope layer on the drum.
  • Page 13: Winching Techniques A-Z

    14001 ENGLISH OPERATION Winching Techniques A-Z Winching Techniques A-Z Cont’d. (a) Take time to assess your situation and plan (p) The vehicle to be winched should be placed your pull. in neutral and the emergency brake released. (b) Put on gloves to protect your hands.
  • Page 14: Maintenance

    ENGLISH 14001 MAINTENANCE Lubrication The owner/operator is responsible for all periodic maintenance. All moving parts within the Electric Winch having been Lubricated using high temperature lithium WARNING grease at the factory. No internal lubrication is required. Lubricate Cable Assembly periodically Never operate a damaged or defective winch.
  • Page 15: Specifications

    14001 ENGLISH SPECIFICATIONS Performance Specifications ........
  • Page 16: Parts Diagram

    ENGLISH 14001 SPECIFICATIONS Parts Diagram...
  • Page 17: Parts List

    14001 ENGLISH Parts List Part Number Description Part Number Description Motor Assembly - Roller Fairlead - Black 410100-BF 250029-BF Black Flat Flat 250035 Washer Ø10, Locking 450001 Coupling, I 300020 Washer Ø8, Locking 450002 Spring,Coupling 300019 Washer Ø8, Flat 450003A...
  • Page 18: Troubleshooting

    ENGLISH 14001 TROUBLESHOOTING Problem Cause Solution Motor does not turn on Switch Assembly not connected Insert Switch Assembly all the way into the connector. properly Loose battery cable connections Tighten nuts on all cable connections. Contactor malfunctioning Tap contactor to loosen contacts. Apply 12 volts to coil terminals directly.
  • Page 19 Please register within ten (10) days Limits of Implied Warranty and Consequential Damage from date of purchase. Champion Power Equipment disclaims any obligation to cover any loss of time, use of this product, freight, or any incidental Repair/Replacement Warranty or consequential claim by anyone from using this product.
