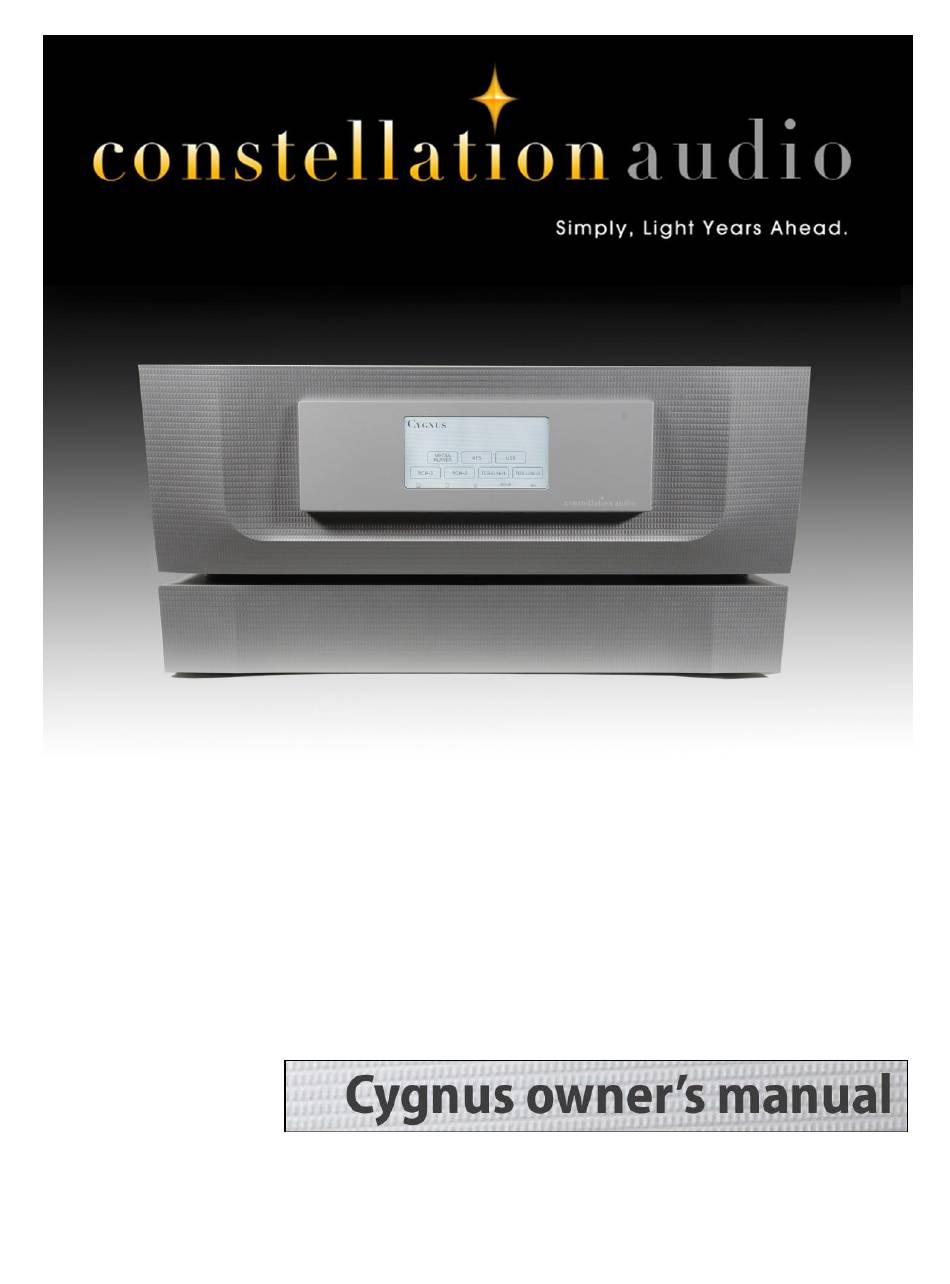

Constellation audio Cygnus Owner's Manual

Digital file player/dac
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cygnus and is the answer not in the manual?

Questions and answers

Summary of Contents for Constellation audio Cygnus

  • Page 2 CAUTION To reduce risk of electric shock, do not remove any of the cover plates or screws on the digital file player/DAC. There are no user serviceable parts inside. Contact qualified service personnel. WARNING To reduce risk of fire or electric shock, do not expose this digital file player/DAC to moisture, rain, or excessive humidity.

  • Page 3: Table Of Contents

    Please read this manual in full before you operate the Cygnus, so you can be assured of getting maximum performance. Contents...

  • Page 4: Before You Install The Cygnus

    The Cygnus's separate power supply (bottom component in the picture above) must be connected to the Cygnus main chassis (top component in the picture above) as shown above before you plug the unit into a wall. Make sure the power switch on the power supply is in the off (O) position.
  • Page 5 Connecting the Link cable The Link cable is a DVI-type digital cable that connects the Cygnus main chassis to the power supply section. It carries digital audio and control signals from the power supply’s WiFi transceiver and USB interface to the main chassis.

  • Page 6: Installation Notes

    Make sure that the Cygnus will not be exposed to moisture. Do not locate it in an area where it might be spilled on, and do not place it in a humid location (such as an unfinished basement).

  • Page 7: In The Event Of Malfunction

    Cygnus’s internal parts or circuit will immediately void your warranty. If your Cygnus does not function correctly, refer to the Troubleshooting section at the end of this manual. If you are still unable to resolve the problem, contact your Constellation Audio dealer.
  • Page 8 4. XLR output If your preamp or integrated amp has XLR inputs, use these outputs to connect the Cygnus, because they deliver the best sound. To remove an XLR plug, press the tab on the plug and pull the plug out.

  • Page 9: Other Connections On The Cygnus (Main Chassis)

    5. RCA output If your preamp or integrated amp does not have XLR inputs, use these RCA outputs to connect the Cygnus. To remove an RCA plug, grasp the plug and pull it straight out. Do not pull on the cable.
  • Page 10 Analog Left power jack on the power supply and the Control power jack on the preamp to the Control power jack on the power supply. Before connecting these cables, switch off the Cygnus’s power supply and disconnect it from the AC power. Failing to do this can damage the Cygnus or its power supply.

  • Page 11: Other Connections On The Cygnus (Power Supply)

    14. Link (power supply) This jack carries audio and control signals between the Cygnus main chassis to the power supply. It uses a DVI digital cable, which is provided with the Cygnus. 15. Antenna This threaded connector is where the supplied WiFi antenna connects.

  • Page 12: Controls / Displays / Indicators

    19. Standby/power Push this button to turn the Cygnus on and off. When you turn the unit on, it will take a few seconds for the unit to warm up. When the Cygnus is ready for use, its screen will illuminate. When you turn the Cygnus off, it enters cool-down mode.

  • Page 13: Control Screens

    Powering On screen This screen appears immediately after you push the onscreen power button. It shows that the Cygnus is warming up. In this mode, none of the controls will function and the unit will emit no sound.
  • Page 14 Media Player until you change them. Pressing Soft Reset will restore the factory settings, but only temporarily; the Cygnus will return to the previous user settings when the power is shut off.

  • Page 15: Setting Up For Wifi Control

    STEP 1: Turn on the master power switch on the back of the power supply. Touch the front screen on the Cygnus so it lights up, then hit the Power button and wait 10 seconds for the unit to go through its warmup process.

  • Page 16: Using The Web Interface To Control The Media Player

    WiFi-connected tablet, computer or phone that can run a web browser. TO OPEN THE INTERFACE: If you are using an Apple device, enter cygnus.local in the address bar at top. If you are using a PC or an Android or Windows tablet or phone, enter 172.17.2.254 in the address bar at top. Now...
  • Page 17 TO SCAN (OR RESCAN) USB STICKS: If you are using a USB stick that you haven’t used before, or on which the contents have been changed, Cygnus needs to scan the stick’s contents. To activate this process, click on the Setup button at left, then click the Rescan Media Folders button.

  • Page 18: Creating And Managing Playlists

    1-4, and turn upsampling on and off. You can also use this menu to rescan the media folders on the USB devices connected to the Cygnus, and also to return it to its factory settings. Creating and managing playlists TO CREATE A PLAYLIST: To create a playlist, click on the Now Playing button on the left side of the screen, and hit the Clear button to clear out any recently played tracks.

  • Page 19: Maintenance

    Maintenance The Cygnus requires no regular maintenance. If the Cygnus’ surface becomes dusty, simply wipe it off with a soft dry cloth. Do not spray cleaners on the surface. To clean fingerprints from the surface of the Cygnus, spray a small amount of mild window cleaner such as Windex onto a soft dry cloth, then use the cloth to remove the fingerprints.
  • Page 20 WiFi connection to the Cygnus. 3. Check to make sure you haven’t lost your WiFi connection to the Cygnus. The methods to do this vary depending on your web browsing device, but most of them have a WiFi status icon somewhere on the screen.

  • Page 21: For More Information

    200 or so tunes on each USB stick. There is no harm in using larger sticks or putting more tunes on them, but it will take Cygnus longer to scan them so the operation of the unit won’t be as fast.
