RocketFish RF-WHTIB-A Quick Setup Manual

PACKAGE CONTENTS

• Wireless sender • Power adapter (wireless sender)
• Wireless receiver • Power cord (wireless receiver)
• 2-foot speaker wires (2) • User Guide
• Quick Setup Guide

FEATURES

• 2.4 GHz wireless sender and wireless receiver
• Transmits high quality audio over a radio
frequency communication link
• Compact size
Front view
• Hidden antennas
• Low power consumption
Wireless sender
Back view
Power indicator LED
Bottom view
Right speaker Power switch
DC IN jack
input terminals
Left speaker
input terminals
Hanging holes for wall
mounting the wireless sender
Before using your new product, please read these instructions to prevent any damage.
Wireless receiver
Front view
Bottom view
Power indicator LED
CONNECT
button
Hanging holes for wall
CONNECT
Back view
mounting the wireless receiver
button
100-240V~ 50/60Hz
Volume AC IN jack Power switch
control knob
Left speaker Right speaker
output terminals output terminals

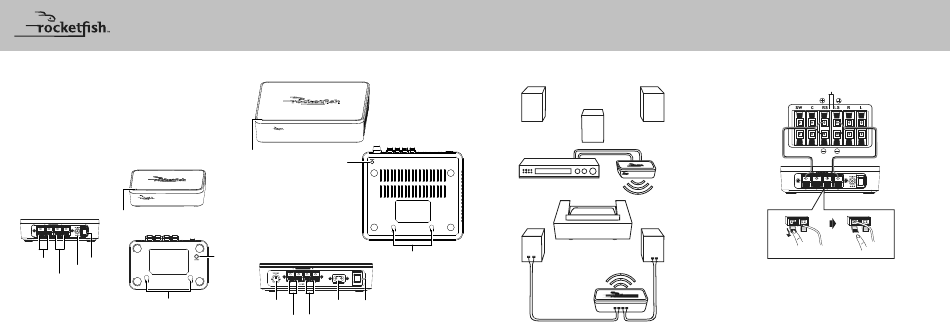

SETTING UP YOUR WIRELESS REAR SPEAKER KIT

Left speaker Right speaker
Center speaker
Wireless sender
Home theater receiver
Left rear Right rear
Wireless receiver
QUICK SETUP GUIDE
Universal Wireless Rear Speaker Kit
RF-WHTIB-A,
CONNECTING THE WIRELESS SENDER TO YOUR
HOME THEATER RECEIVER
Home theater receiver back panel
Wireless sender back panel
Press and hold
Caution: Turn off your home theater receiver while connecting the units.
1 Using the included 2-foot speaker cords, connect the right rear speaker
terminals of your home theater receiver to the right speaker terminals of
the wireless sender by connecting the red wire to the red (+) terminals,
and the black wire to the black (-) terminals.
2 Connect the left rear speaker terminals of the home theater receiver the
same way.
Release
