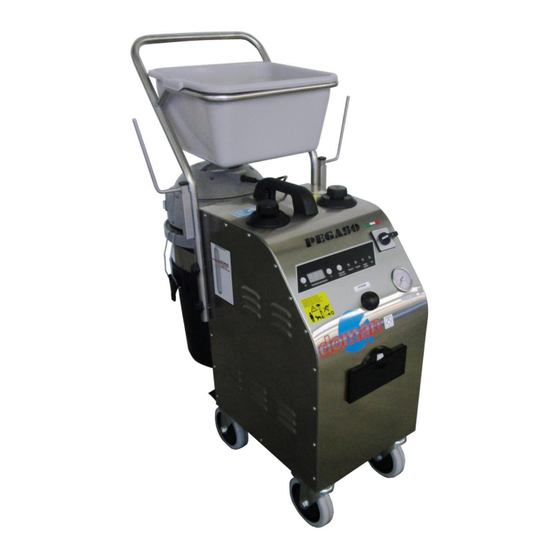

Professional steam & vacuum cleaner

Advertisement

PEGASO
Professional Steam & Vacuum Cleaner
INSTRUCTIONS FOR USE AND MAINTENANCE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PEGASO and is the answer not in the manual?

Questions and answers

Summary of Contents for Doman PEGASO

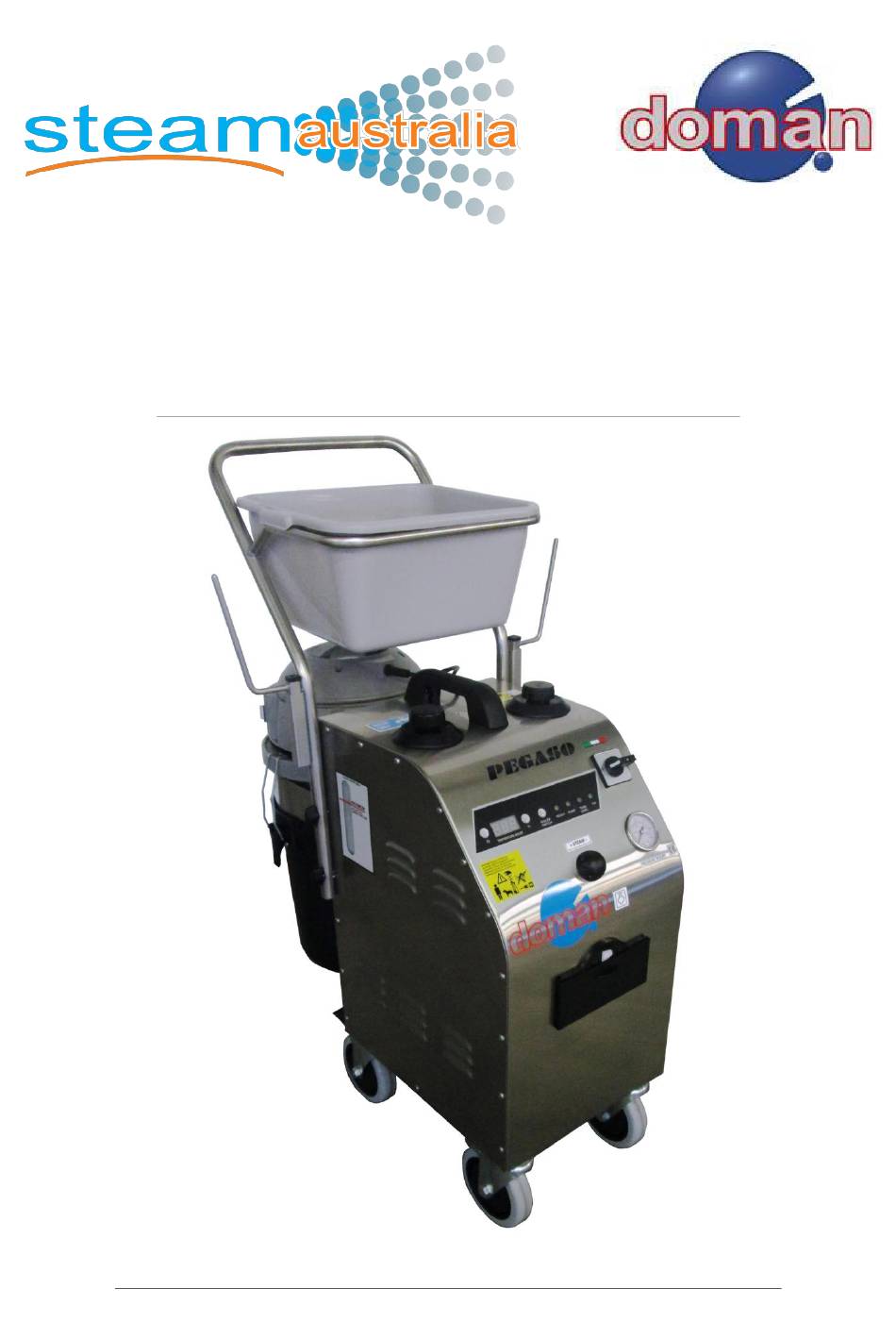

  • Page 1 PEGASO Professional Steam & Vacuum Cleaner INSTRUCTIONS FOR USE AND MAINTENANCE...
  • Page 3: Table Of Contents

    TABLE OF CONTENTS Introduction page 2 Description page 2 Safety warnings page 3 Technical specifications page 3 Instructions for use page 4 Steam & Vacuum accessory set page 8 Steam only accessory set page 12 Maintenance page 13 Warranty page 14 Declaration of conformity page 15 INTRODUCTION...
  • Page 4: Safety Warnings

    This machine is a steam generator designed for the following functions: Cleaning with steam Cleaning with steam + hot water / injection of detergent Dust vacuum cleaning Liquid vacuum cleaning WARNINGS The manufacturer declines all liability for: • Incorrect use of the machine or use for purposes other than those for which it has been designed;...
  • Page 5: Instructions For Use

    Maximum power 2200 / 3500 W Voltage 230 V Weight 37 Kg Machine safety devices: • Bleed valve for overpressure on each boiler; • Pressure switch for operating pressure control; • Manual reset safety thermostat for boiler temperature control; • 12 V low voltage handgrip controls. INSTRUCTIONS FOR USE CAUTION The machine is supplied with a power supply cable suitable for its absorption.
  • Page 6 • Push button 2 and the pump starts filling the boiler, light 8 goes on. Filling is automatically performed when required by the water level. • When the pump stops, light 8 goes out and the heating phase begins, lasting approx. 9 minutes.
  • Page 7 Perform the following operations: • Turn off the main switch 1. • Open the plug 10 and fill the tank with water (about 5 Lt). • To start the machine, operate switches 1 and 2 as indicated in ”Machine start”. •...
  • Page 8 ATTENTION! This machine is approved for use only with detergents validated and sold by the manufacturer. Use of detergents other than ours will invalidate the warranty! The use of foaming and/or corrosive detergents or other chemical compounds could damage the machine! * See Standard Accessory Set further down in this manual.
  • Page 9: Steam & Vacuum Accessory Set

    • The detergent/hot water function is enabled by persistently pressing micro-switch (16.3) , release to stop. Follow the instructions above as for steam only! • Clean the vacuum tank after every use. Open the 2 lateral hinges of the vacuum tank and lift the head off.
  • Page 10 ACCESSORIES STANDARD STEAM & VACUUM ACCESSORY SET ITEM CODE, QUANTITY & DESCRIPTION KIT0800/MOD 1 STEAM/VAC HOSE 4 M KIT0801 2 EXTENSION TUBES L.500 KIT0802 1 EXTENSION TUBE L.250 KIT0804 1 FLOOR BRUSH L.300 KIT0822 1 TEFLON INSERT FLOOR BRUSH L.300 KIT0824 1 RUBBER INSERT FLOOR BRUSH L.300 KIT0803...
  • Page 11 ITEM CODE, QUANTITY & DESCRIPTION KIT0823 1 TEFLON INSERT FLOOR BRUSH L.500 KIT0825 1 RUBBER INSERT FLOOR BRUSH L.500 KIT0805 1 SQUEEGEE L.300 KIT0806 1 UPHOLSTERY TOOL L.100 KIT0807 1 UPHOLSTERY TOOL L.250 KIT0808 1 STEAM & VAC NOZZLE/LANCE KIT0808/DA/2 1 STEAM-VAC LANCE X DAVY 2MM KIT0810 1 ANGLED TUBE 45°...
  • Page 12 ITEM CODE, QUANTITY & DESCRIPTION KIT0817 1 SMALL BRUSH HALFMOON X KIT0808 KIT0818 1 ROUND VAC BRUSH X KIT0817 KIT0819 1 TRIANGULAR VAC BRUSH X KIT0817 KIT0315 1 STRAIGHT VAC NOZZLE KIT0808/DA KIT0317 1 TRIANGULAR VAC NOZZLE KIT0808/DA KIT0814/I 1 BIG ROUND BRUSH SST BRISTLES KIT0814/N 1 BIG ROUND BRUSH NYLON BRISTLES KIT0814/O...
  • Page 13: Steam Only Accessory Set

    ITEM CODE, QUANTITY & DESCRIPTION KIT0815/N 1 MEDIUM ROUND BRUSH NYLON BRISTLES KIT0815/O 1 MEDIUM ROUND BRUSH BRASS BRISTLES KIT0816/I 3 SMALL ROUND BRISH SST BRISTLES KIT0816/N 5 SMALL ROUND BRISH NYLON BRISTLES KIT0816/O 3 SMALL ROUND BRISH BRASS BRISTLES STEAM ONLY ACCESSORY SET ITEM CODE, QUANTITY &...
  • Page 14: Maintenance

    ITEM CODE, QUANTITY & DESCRIPTION KIT 0703/2 1 STEAM LANCE L.100 2MM KIT0704/2 1 STEAM LANCE L.250 2MM KIT0705 1 STEAM ADAPTER ANGLED 45° KIT0706 1 JOINT FOR BRUSHES KIT0707 1 FLOOR BRUSH WITH BRISTLES KIT0709 1 TRIANGULAR BRUSH WITH BRISTLES KIT0711 1 STEAM SQUEEGEE L.300 KIT0712...
  • Page 15: Warranty

    Retighten the probe and connect the wire above. WARRANTY DOMAN S.r.l. guarantees the product against all manufacturing or material defects for 12 months from the date of sale. Warranty conditions: • The warranty does not cover failures resulting from normal machine wear.
  • Page 16: Declaration Of Conformity

    • EN 62233 (2008-04) • EN 60335-2-79 (2009-09) The manufacturer also declares that the technical construction file is kept by DOMAN SRL – VIA MONTE TOMBA, 8 – 36060 ROMANO D’EZZELINO – ITALY Last two figures of the year of the CE marking...
  • Page 17 DOMAN SRL Via Monte Tomba 8 36060 Romano d'Ezzelino (VI) Italy Tel: +39.0424.577009 Fax: +39.0424.879679 E-mail: info@doman.it Web: www.doman.it...
