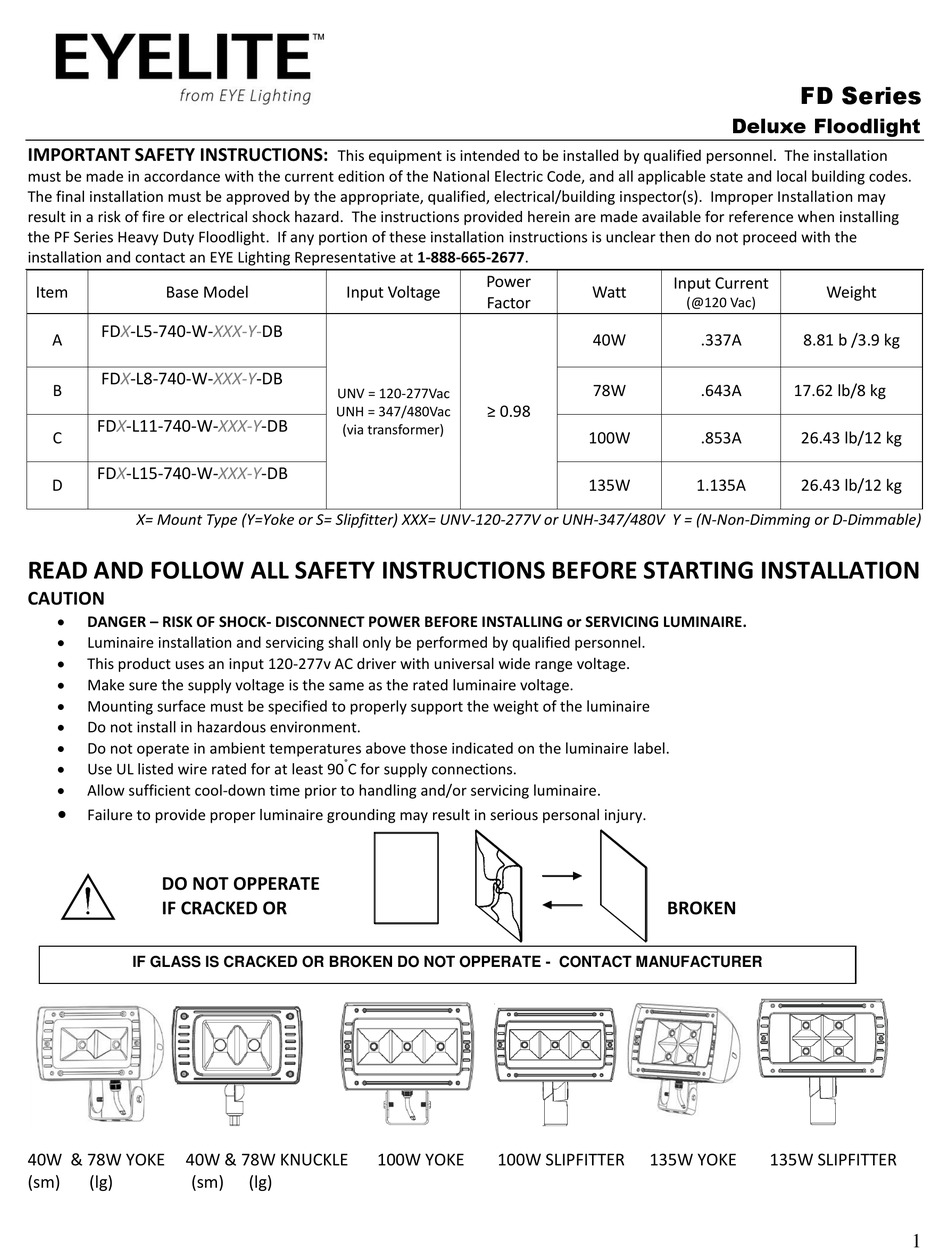

Eyelite FD Series Installation Manual

IMPORTANT SAFETY INSTRUCTIONS:

must be made in accordance with the current edition of the National Electric Code, and all applicable state and local building codes.
The final installation must be approved by the appropriate, qualified, electrical/building inspector(s). Improper Installation may
result in a risk of fire or electrical shock hazard. The instructions provided herein are made available for reference when installing
the PF Series Heavy Duty Floodlight. If any portion of these installation instructions is unclear then do not proceed with the
installation and contact an EYE Lighting Representative at 1-888-665-2677.
Item Base Model
FDX-L5-740-W-XXX-Y-DB
A
FDX-L8-740-W-XXX-Y-DB
B
FDX-L11-740-W-XXX-Y-DB
C
FDX-L15-740-W-XXX-Y-DB
D
X= Mount Type (Y=Yoke or S= Slipfitter) XXX= UNV-120-277V or UNH-347/480V Y = (N-Non-Dimming or D-Dimmable)
READ AND FOLLOW ALL SAFETY INSTRUCTIONS BEFORE STARTING INSTALLATION
CAUTION

DANGER – RISK OF SHOCK- DISCONNECT POWER BEFORE INSTALLING or SERVICING LUMINAIRE.

Luminaire installation and servicing shall only be performed by qualified personnel.

This product uses an input 120-277v AC driver with universal wide range voltage.

Make sure the supply voltage is the same as the rated luminaire voltage.

Mounting surface must be specified to properly support the weight of the luminaire

Do not install in hazardous environment.

Do not operate in ambient temperatures above those indicated on the luminaire label.

Use UL listed wire rated for at least 90

Allow sufficient cool-down time prior to handling and/or servicing luminaire.

Failure to provide proper luminaire grounding may result in serious personal injury.
DO NOT OPPERATE
IF CRACKED OR
IF GLASS IS CRACKED OR BROKEN DO NOT OPPERATE - CONTACT MANUFACTURER
40W & 78W YOKE 40W & 78W KNUCKLE
(sm) (lg) (sm)
This equipment is intended to be installed by qualified personnel. The installation
Input Voltage
UNV = 120-277Vac
UNH = 347/480Vac
(via transformer)
°
C for supply connections.
100W YOKE
(lg)
Power
Watt
Factor
40W
78W
≥ 0.98
100W
135W
100W SLIPFITTER 135W YOKE
FD Series
Deluxe Floodlight
Input Current
Weight
(@120 Vac)
.337A 8.81 b /3.9 kg
.643A 17.62 lb/8 kg
.853A 26.43 lb/12 kg
1.135A 26.43 lb/12 kg
BROKEN
135W SLIPFITTER
1
