MSP100KP User's Manual

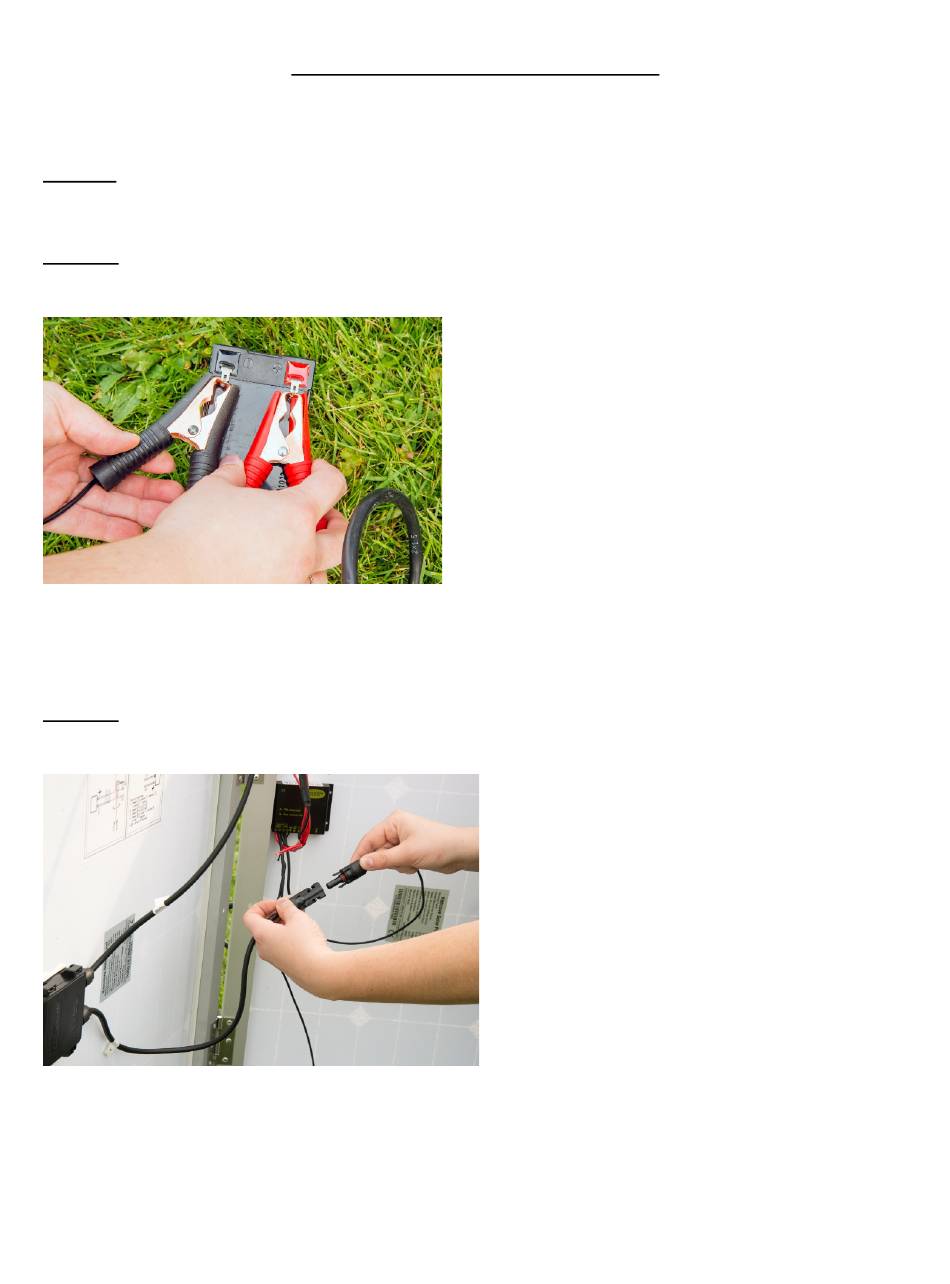

Step 1:
Connect the positive (red) alligator clip from the charge controller to the
positive terminal on the battery.
Step 2:
Connect the negative (black) alligator clip from the charge controller to the
negative terminal on the battery.
Step 3:
Connect Panel A's negative (bottom) plug to the charge controller's negative
(black) plug.
Advertisement
Table of Contents
Summary of Contents for Kencove MSP100KP
- Page 1 MSP100KP User’s Manual Step 1: Connect the positive (red) alligator clip from the charge controller to the positive terminal on the battery. Step 2: Connect the negative (black) alligator clip from the charge controller to the negative terminal on the battery.
- Page 2 Step 4: Connect Panel A’s positive (top) plug to the charge controller’s positive (red) plug. Step 5: Connect Panel B’s negative (top) plug to the charge controller’s negative (black) plug. Step 6: Connect Panel B’s positive (bottom) plug to the charge controller’s positive (red) plug.
- Page 3 *Remove the alligator clips from the energizer, and mark the positive and negative wires prior to removal. Strip the insulation from the wire ends. Splice the alligator clip ends to the corresponding charge controller load wires. Step 7: Connect the positive (red) load wire from the charge controller to the positive (red) alligator clip on the positive terminal of the energizer.
- Page 4 Panel A Panel B...
