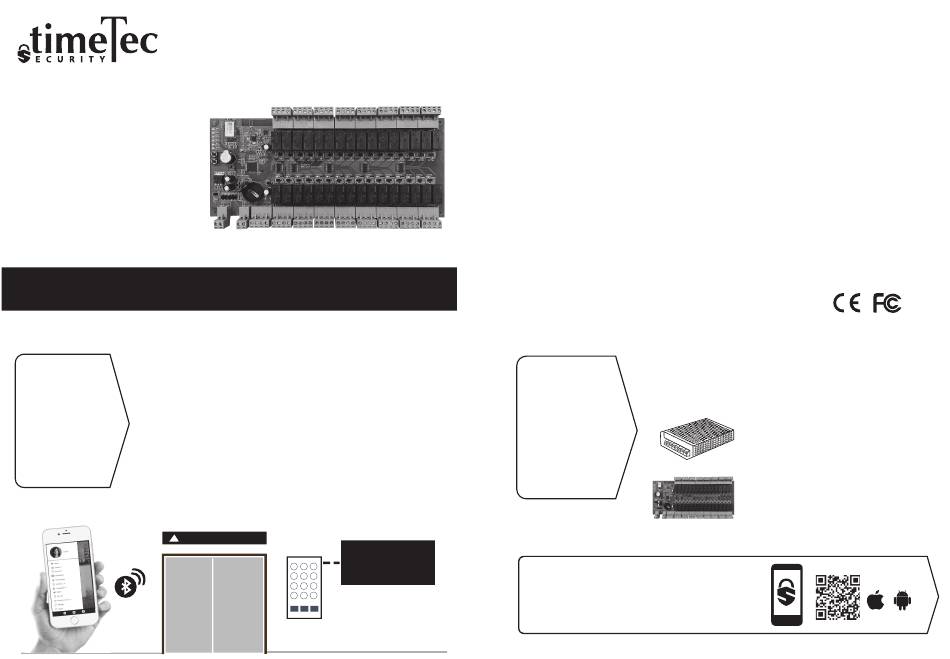

TimeTec Security BLE-16 Installation Manual

w w w . t i m e t e c s e c u r i t y. c o m
TimeTec BLE-16
Smart Lift Controller
Installation Guide

RECOMMENDATIONS:

STEP • 1
•
Install the device inside a lift car, near to the floor button controller to
minimize the need of extra wiring.
Determine
•
Install an on/off switch to turn off the power supply to the device.
where you
Power off to bypass the device, and the floor access function will be
back to default operation, where user can press button at the lift
want to install
button panel to access its desired floors.
TimeTec
•
For a building with more than 16 floors, the installation requires more
than one BLE16 relay boards. For example, a building with 30 floors
BLE-16
will need 2 units of BLE 16 relay boards, where the first relay board will
control access from Floor 1 to Floor 16, and the second relay board
will control the access from Floor 17 onwards until Floor 30.
LIFT
TimeTec Lift
Control Panel
1 2 3
BLE-16
4 5 6
7 8 9
10 11 12
Floor button
control panel
©
2018 Timetec Cloud Sdn Bhd. All rights reserved • 062018
Below is a list of accessories that are necessary to install
STEP • 2
TimeTec BLE-16
Make sure
that you have
all the required
accessories
for the
installation
The User Guide for TimeTec Security App can be
obtained in the App or in our website at
www.timetecsecurity.com
PW12V Switching Power Supply
AC/DC switching power supply to keep the
battery charged during daily operation
and also allows it to function during a
power failure as well.
TimeTec BLE-16
iOS Android
