Quick Drop Tongue
Jack
®
Installation and Owner's Manual
(For Aftermarket Applications)
Quick Drop
Tongue Jack
Installation and
Owner's Manual
(For Aftermarket Applications)
2
Quick Drop Tongue Jack Aftermarket Kit
2
Part # Description
2
Quick Drop Tongue Jack; includes mounting bolts &
733926
2
footpad replacement kit (PN 710633)
3
3
4
4
5
5
6
6-8
1
CCD-0001391
®
Rev:09.18.18

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Quick Drop Tongue Jack and is the answer not in the manual?

Questions and answers

Summary of Contents for Lippert Components Quick Drop Tongue Jack

  • Page 1 ........Quick Drop Tongue Jack; includes mounting bolts &...

  • Page 2: Introduction

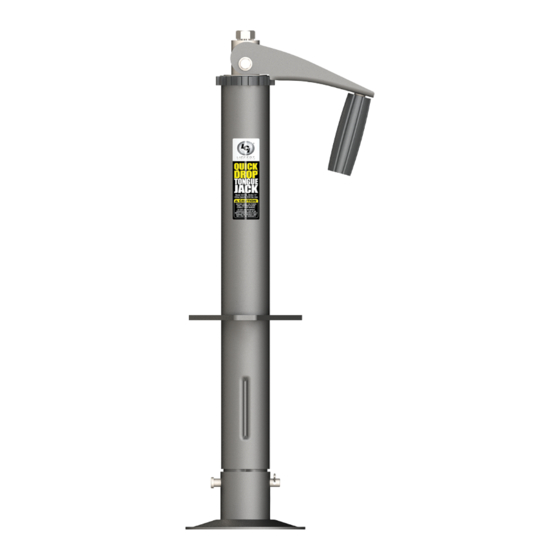

    The Quick Drop Tongue Jack has a lifting capacity of 2,000 lbs. Do not exceed the capacity limit.

  • Page 3: Installation

    Fig.2 A. Remove the hairpin cotter pin (Fig.1A) from the clevis 2. Align the three holes in the Quick Drop Tongue Jack’s pin (Fig.1B), which holds the footpad (Fig.1C) to the jack mounting plate with the three holes in the coupler.

  • Page 4: Operation

    (For Aftermarket Applications) Operation Power Tool Operation THE QUICK DROP TONGUE JACK HAS A LIFTING CAPACITY OF 2,000 LBS. DO NOT EXCEED THIS 1. Make sure the crank handle is in its stored position LIMIT OR SEVERE PRODUCT DAMAGE, SERIOUS (Fig.4).

  • Page 5: Hitching To A Tow Vehicle

    5. Remove the tire chocks. 6. Make sure the leg of the Quick Drop Tongue Jack is fully retracted before moving the tow vehicle. lci1.com...

  • Page 6: Unhitching From A Tow Vehicle

    Notes Unhitching From A Tow Vehicle 1. Chock the tires of the trailer. 2. Make sure the foot pad of the Quick Drop Tongue Jack is pinned securely in place with the clevis pin and hairpin cotter pin (Fig. 6A).
  • Page 7 Quick Drop Tongue Jack ® Installation and Owner’s Manual (For Aftermarket Applications) Notes lci1.com 574-537-8900 CCD-0001391 Rev:09.18.18...

  • Page 8: Notes

    (For Aftermarket Applications) Notes Manual information may be distributed as a complete document only, unless Lippert Components provides explicit consent to distribute individual parts. All manual information is subject to change without notice. Revised editions will be available for free download at lci1.com.
