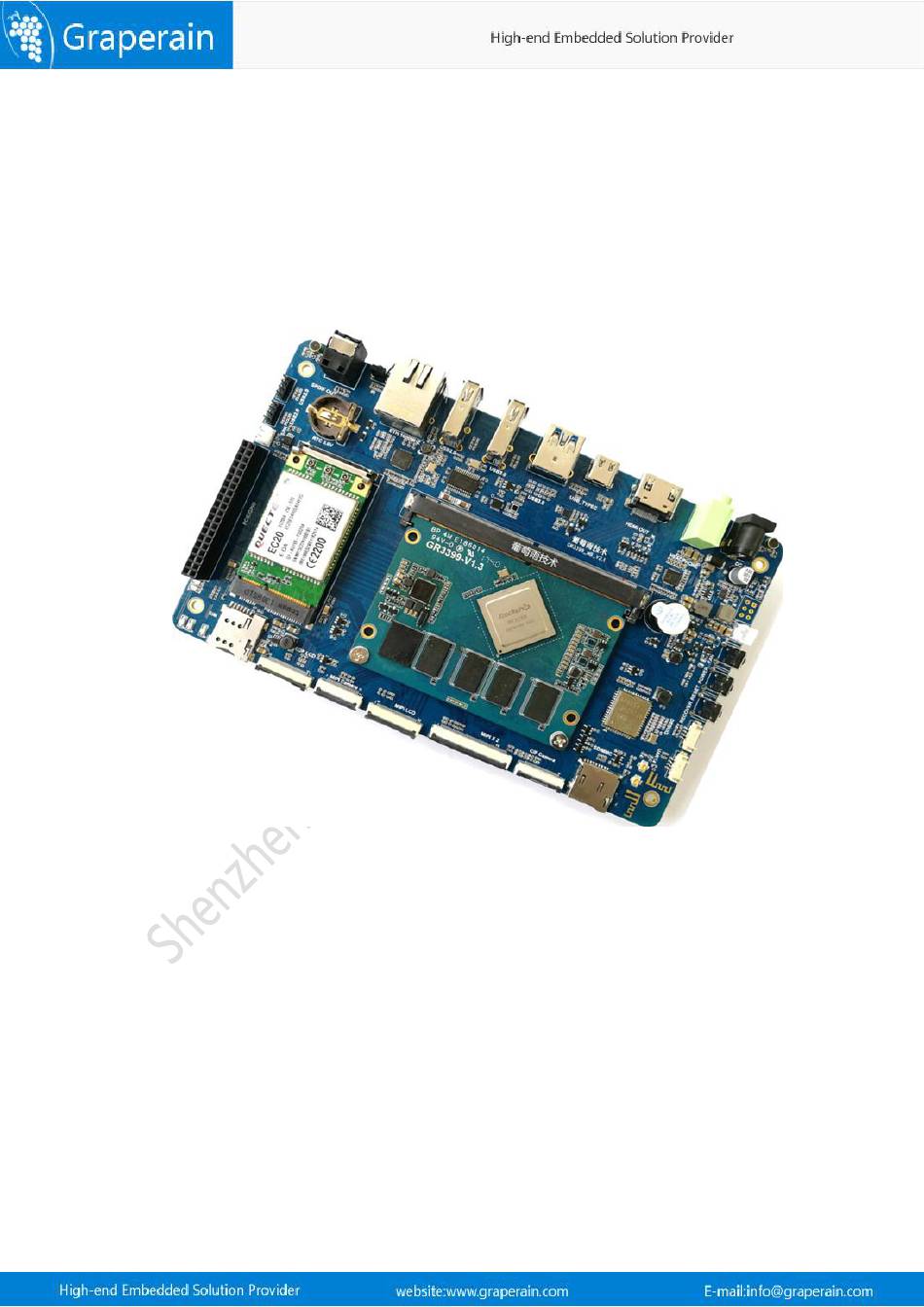

- Page 1 GR3399 Development Board Hardware Manual Shenzhen Graper ain Tec hnology Co., Lt d. www. graper ain. c om...
- Page 2 Copyright Statement Copyrights of this manual belong to Shenzhen Graperain Technology Co., Ltd. and all rights are reserved. Any companies or individuals are not allowed to extract part or all of this manual, and violators will be prosecuted under law.
- Page 3 Release notes Version Release Author Description Date Rev.01 2018-6-01 David Revision...
- Page 4 Website: http://www.graperain.com Landline: +86 755 23025312 E-mail: supports@graperain.com Sales and service network Shenzhen Graperain Technology Co., Ltd. Website: http://www.graperain.com Landline: +86 755 23025312 E-mail: sales@graperain.com Address: Room 328-329, Building A, Huafeng Tech. & Innov. Park Baoan Wisdom Valley, Xixiang, Baoan Dist.Shenzhen, Guangdong. Post code 518101.
-
Page 5: Table Of Contents
Contents Chapter 1 GR3399 Development Board Introduction................6 1.1 Brief Introduction..........................6 1.2 Specifications..........................6 1.3 Dev Board Appearance........................ 8 1.4 Dev Board Structure........................9 1.5 SOM Appearance.......................... 9 Chapter 2 Dev Board Hardware Manual................... 10 2.1 Hardware Interfaces Description....................10 2.2 GR3399 SOM Pin Definitions....................... 11 Chapter 3 Hardware Design........................ -
Page 6: Chapter 1 Gr3399 Development Board Introduction
Chapter 1 GR3399 Development Board Introduction 1.1 Brief Introduction GR3399 dev board bases on Rockchip RK3399 (64bit) chip platform, which is designed by Shenzhen Graperain Technology Co., Ltd.. GR3399 dev board consists of GR3399 SOM and carrier board. GR3399 SOM is based on Rockchip RK3399, 64 bit 6-core, work-station-level processor. - Page 7 System Configuration Rockchip RK3399 Frequency Cortex A53 quad core 1.4GHz + dual core A72 (2GHz) standard 2GB, can be custom to 4GB eMMC 4GB/8GB/16GB/32GB eMMC optional, standard 8GB RK808, dynamic frequency modulation Power IC Graphic and video processor Mali-T860 MP4, quad core GPU Support OpenGL ES 1.1/2.0/3.0/3.1, Openvg1.1, OpenCL, Directx11 Support 4K VP9 and 4K 10bits H265/H.264...
-
Page 8: Dev Board Appearance
Storage temperature -30~80 degree Working temperature -20~70 degree 1.3 Dev Board Appearance Dev board front side... -
Page 9: Dev Board Structure
1.4 Dev Board Structure Size 1.5 SOM Appearance Please refer to GR3399 Gold Finger System on Module Introduction.pdf. -
Page 10: Chapter 2 Dev Board Hardware Manual
Chapter 2 Dev Board Hardware Manual 2.1 Hardware Interfaces Description Interfaces details Number Name Description 12V power charger 12V power input 【1】 Earphone Audio earphone output 【2】 HDMI TypeA HDMI TypeA output 【3】 TypeC TypeC 【4】 USB3.0 USB3.0 【5】 USB2.0 USB2.0 【6】... -
Page 11: Gr3399 Som Pin Definitions
External volt, 12V/5V/3.3V, GND 【39】 seat Audio recording Audio recording MIC 【40】 Sensors(not mark Onboard gravity sensor, gyroscope, light 【41】 in pic) sensor 2.2 GR3399 SOM Pin Definitions Pin Definitions Back Signal Signal Front pins pins VCC_SYS VCC_SYS VCC_SYS VCC_SYS... - Page 12 VCC_SYS RESET_L VCC_SYS POWER_KEY VCC_SYS VCC_CHARGE_EN VCC_SYS PMIC_EXT_EN VCC_SYS VCC_3V0 VCC_SYS VCC_3V0 VCC_SYS VCC_SDIO VCC3V3_S5 VCC_SDIO VCC3V3_S5 VCC3V3_S0 VCC3V3_S0 VCC3V3_S7 VCC3V3_S7 VCC1V8_DVP VCC1V8_CODEC VCC1V8_CODEC EDPAUXN VCC_1V5 EDPAUXP VCC_1V5 VCC1V8_S3 EDP_TX0N VCC1V8_S3 EDP_TX0P VCC_1V8 VCC_1V8 EDP_TX1N VCC_RTC EDP_TX1P VCC_EFUSE MAC_TXD3 EDP_TX2P MAC_TXEN EDP_TX2N MAC_CRS...
- Page 13 PCIE_TX2P PCIE_TX2N SPI1_CLK SPI1_RXD PCIE_RX2_P SPI1_TXD PCIE_RX2_N SPI1_CSN0 GPIO0_B5 PCIE_TX3N GPIO0_A2 PCIE_TX3P GPIO1_C6 TOUCH_INT_L PCIE_RX3_P LCD_EN_H PCIE_RX3_N GPIO1_D0 I2C4_SCL PCIE_REF_CLKP I2C4_SDA PCIE_REF_CLKN GPIO1_A1 SPK_CTL_H PCIE_TX0N GPIO1_A0 PCIE_TX0P GPIO0_B0 GPIO1_C7 PCIE_RX0_N GPIO1_A3 PCIE_RX0_P GPIO1_A4 IR_RX PCIE_TX1N PCIE_TX1P RTC_CLK_OUT PCIE_RX1_N HOST1_DP PCIE_RX1_P HOST1_DM ADC_IN0 HOST0_DM...
- Page 14 TYPEC0_SBU1 TYPEC0_TX1N TYPEC0_TX1P TYPEC0_RX1N TYPEC0_RX1P HDMI_TX2P HDMI_TX2N MIPI_TX0_D0P MIPI_TX0_D0N HDMI_TX1P HDMI_TX1N MIPI_TX0_D1P MIPI_TX0_D1N HDMI_TX0P HDMI_TX0N MIPI_TX0_CLKP MIPI_TX0_CLKN HDMI_TXCP HDMI_TXCN MIPI_TX0_D2N MIPI_TX0_D2P MIPI_RX0_D0N MIPI_RX0_D0P MIPI_TX0_D3P MIPI_TX0_D3N MIPI_RX0_D1N MIPI_RX0_D1P MIPI_TX1/RX1_D3N MIPI_TX1/RX1_D3P MIPI_RX0_CLKN MIPI_RX0_CLKP MIPI_TX1/RX1_D2N MIPI_TX1/RX1_D2P MIPI_RX0_D2N MIPI_RX0_D2P MIPI_TX1/RX1_CLKN MIPI_TX1/RX1_CLKP MIPI_RX0_D3N MIPI_RX0_D3P MIPI_TX1/RX1_D1N MIPI_TX1/RX1_D1P BT_REG_ON_H WIFI_HOST_WAKE_L...
- Page 15 I2S_CLK I2C1_SCL I2S0_LRCK_RX GPIO4_A5 I2S0_SCLK HP_DET_H HDMIIN_PWREN18/I2S1_SCL VCC5V0_HOST_EN HDMIIN_STBY/I2S1_SDI0 UART2DBG_RX GPIO3_D4/I2S0_SDI1 UART2DBG_TX HDMIIN_PWREN33/I2S1_SDO LCD_RST_H HDMIIN_RST/I2S1_LRCK_RX LCD_BL_PWM I2S0_SDI0 I2C_SDA_HDMI GPIO3_D5/I2S0_SDO2 HDMI_CEC I2S0_SDO0 I2C_SCL_HDMI GPIO3_D6/I2S0_SDO1 I2S0_LRCK_TX Note: more details of GR3399 SOM, please refer to GR3399 Gold Finger System on Module Introduction.pdf.
-
Page 16: Chapter 3 Hardware Design
Chapter 3 Hardware Design 3.1 Design Reference If use GR3399 platform for product design and development, related to power supply, USB, HDMI, eDP, MIPI, PCIe, TypeC, audio, network (Ethernet, WIFI, Bluetooth), camera etc., can refer to our carrier board design. the circuit and layout of those parts are open to... -
Page 17: Chapter 4 Product Portfolio
G3288 development board ( Rockchip RK3288 stamp hole) GR3288 development board ( Rockchip RK3288 Immersion Gold MXM ) GR3399 development board ( Rockchip RK3399 Immersion Gold MXM) 4.3 Single Board Computer (SBC) Series G4418 single board computer ( Samsung S5P4418 )
