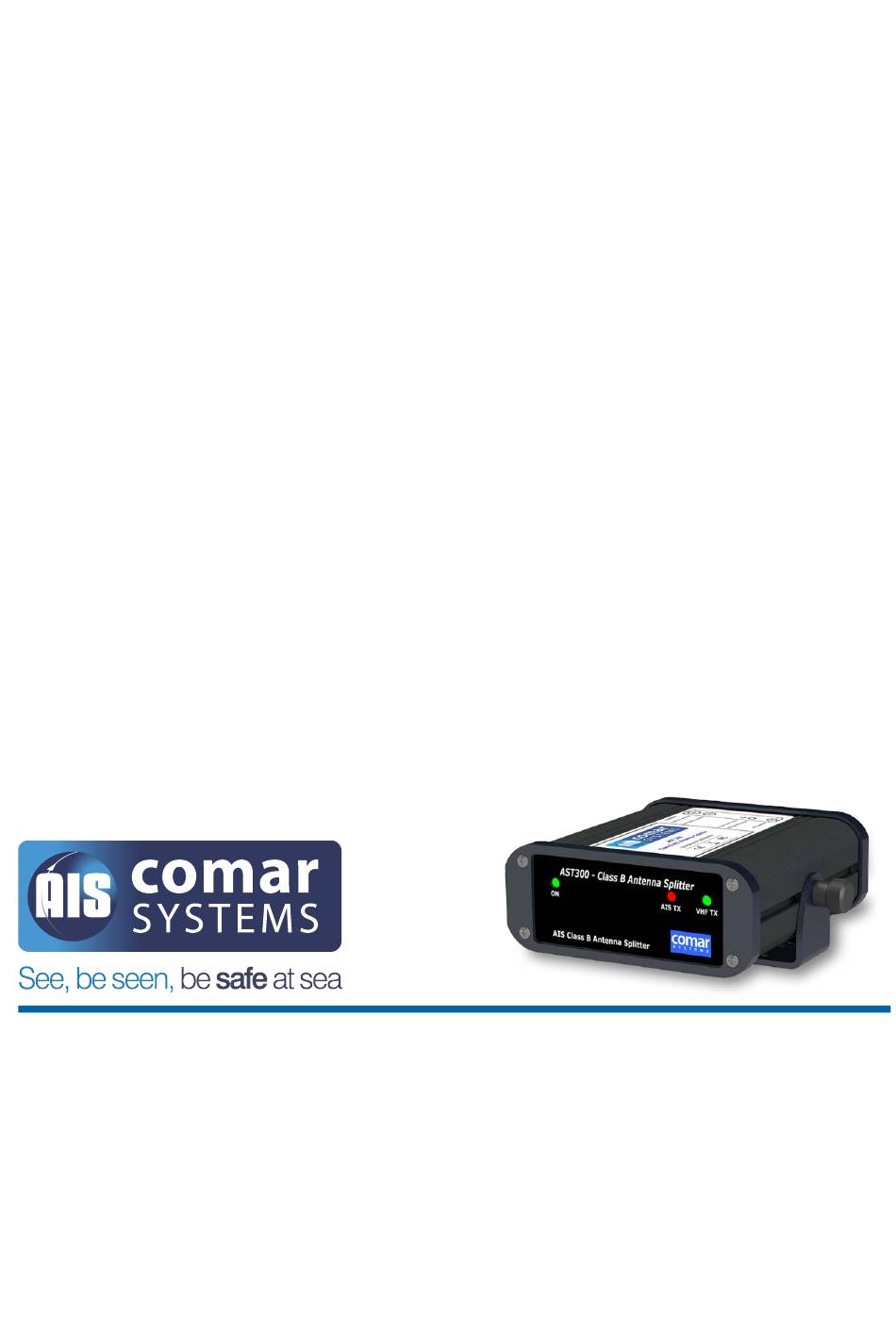

AST300 CONTENTS AST300 AIS / VHF ANTENNA SPLITTER ..........4 DOCUMENT ..................... 5 About This Manual ..................... 5 NOTICE ....................6 Copyright ......................6 GENERAL NOTICES ................7 INTRODUCTION ..................8 Parts List ......................8 MAJOR DIMENSIONS ................9 INSTALLATION ..................10 Before you Start....................
AST300 2 DOCUMENT About This Manual This Manual provides installation, operating Instructions and fault-finding procedures for the equipment to which it relates. After installation, this manual should remain with the vessel to which it relates. This manual may also be made available in electronic Portable Document Format (PDF). In PDF format, the following categories are all enabled as active hyperlink references: (1) The titles of each section;...
COMAR SYSTEMS LTD. COMAR SYSTEMS Vittlefields Technology Centre Forest Road NEWPORT Isle of Wight PO30 4LY UNITED KINGDOM tel: +44 (0)1983 828900 email: sales@comarsystems.com web: www.comarsystems.com COMAR SYSTEMS reserves the right to make changes to its products and specifications without notice...
When necessary, upgrades to the product will be accompanied by updates or addenda to this manual. Information contained in this manual is liable to change without notice. Comar Systems Ltd. disclaims any liability for consequences arising from omissions or inaccuracies in this manual and any other documentation provided with this product.
5 INTRODUCTION Congratulations on the purchase of your Comar AST300 AIS Transponder Antenna Splitter. The AST300 allows your existing VHF antenna to be used by both a VHF radiotelephone and an AIS transponder or AIS Receiver. The AST300 also includes an output antenna connection for FM broadcast receivers, providing a third use for your existing VHF Antenna.
AST300 7 INSTALLATION Before you Start You will need the following items and tools to complete the installation: ● Class ‘B’ AIS Transponder or AIS Receiver ● VHF Antenna and cable (either pre-installed or new) ● Access to 12 V dc or 24 V dc power supply where the unit is to be installed, via a 1 A rated fuse or circuit breaker ●...
AST300 ● Connect 12 V dc or 24 V dc power supply to the power cable. The wire should be connected to the positive power supply connection via a 1A rated fuse or circuit breaker. The blue wire should be connected to the negative power supply connection...
AST300 8 OPERATION Operation of the Antenna Splitter is automatic and requires no user intervention. ● During operation, the Antenna Splitter will share the signals received (RX) at your VHF Antenna between both the VHF Radiotelephone and the AIS Transponder ●...
AST300 9 FAULT FINDING Power LED not illuminated ● Check power supply connections and fuse or circuit breaker ● Check polarity of power supply connections ● Check power supply voltage ‘VHF’ LED does not illuminate when VHF Radiotelephone is transmitting ●...
AST300 10 SPECIFICATION 10.1 Physical Weight: 600 g (with bulkhead mounting bracket) Dimensions: L 140 x W 120 x H 50 mm Mounting: Bulkhead mounting bracket (supplied) Power: 1 m 2-core captive cable Antenna: SO239 UHF Connector Connections: VHF Radiotelephone:...
Safe distance 0.5 m or greater for 0.3° deviation 10.5 Additional Information If spare parts are required then please contact either your supplier or COMAR SYSTEMS. COMAR SYSTEMS reserves the right to makes changes to its products and specifications without...
COMAR SYSTEMS LTD. warrants this product to be free from defects in materials and manufacture for one year from the date of purchase. Comar Systems Ltd will, at its sole option, repair or replace any components that fail in normal use. Such repairs or replacement will be made at no charge to the customer for parts and labour.
